Removal & Installation

  1. Remove the caliper and pads. See DISC BRAKE CALIPERS & PADS  .
  2. Remove and discard the two front disc brake caliper anchor plate bolts. See Figure and Fig 1 . Remove caliper anchor plate.
  3. To install, reverse removal procedure. Use NEW anchor plate bolts. Ensure anchor plate bolts are of correct length and type.

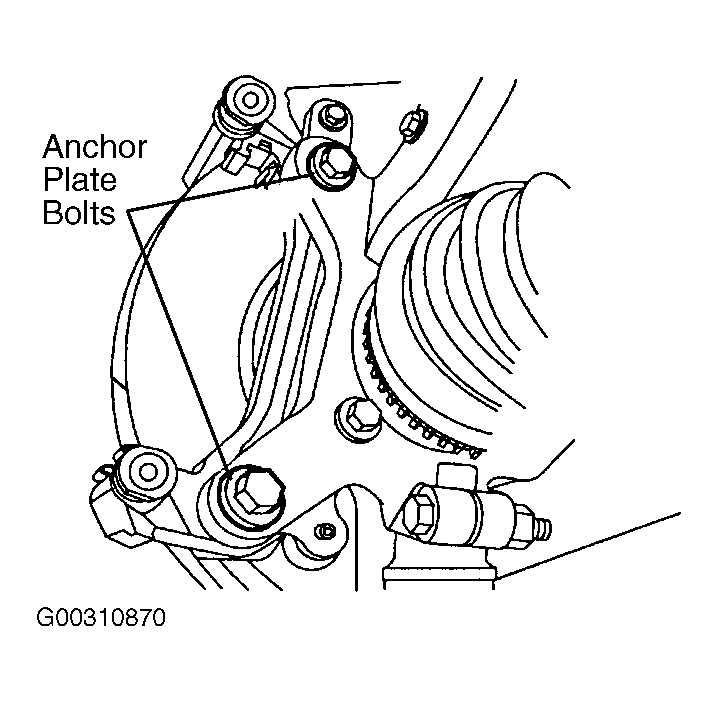

Fig 1: Identifying Caliper Anchor Plate Bolts
G00310870Courtesy of FORD MOTOR CO.
