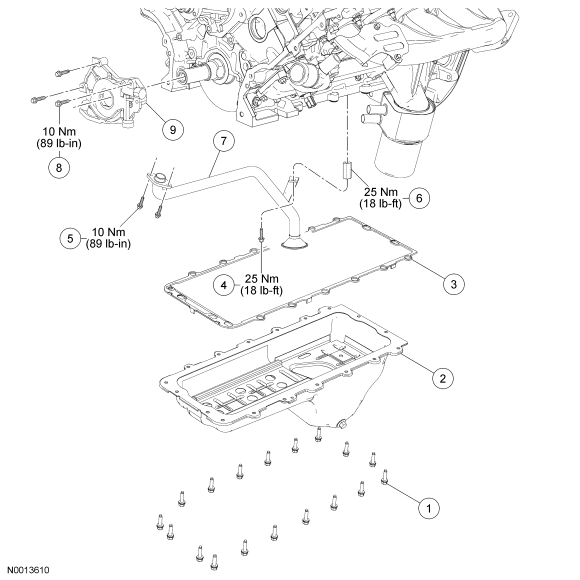

Engine Lubrication Components - Exploded View
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W701605 | Oil pan bolt (18 required) |
| 2 | 6675 | Oil pan |
| 3 | 6710 | Oil pan gasket |
| 4 | N605904 | Oil pump screen and pickup tube-to-spacer bolt |
| 5 | N806155 | Oil pump screen and pickup tube-to-oil pump bolt (2 required) |
| 6 | N806180 | Oil pump screen and pickup tube spacer |
| 7 | 6622 | Oil pump screen and pickup tube |
| 8 | N806183 | Oil pump bolt (3 required) |
| 9 | 6621 | Oil pump |
- For additional information, refer to the procedures in this article.
