Pinpoint Test E: A Single Illumination Source Is Inoperative - Speed Control Actuator Switches

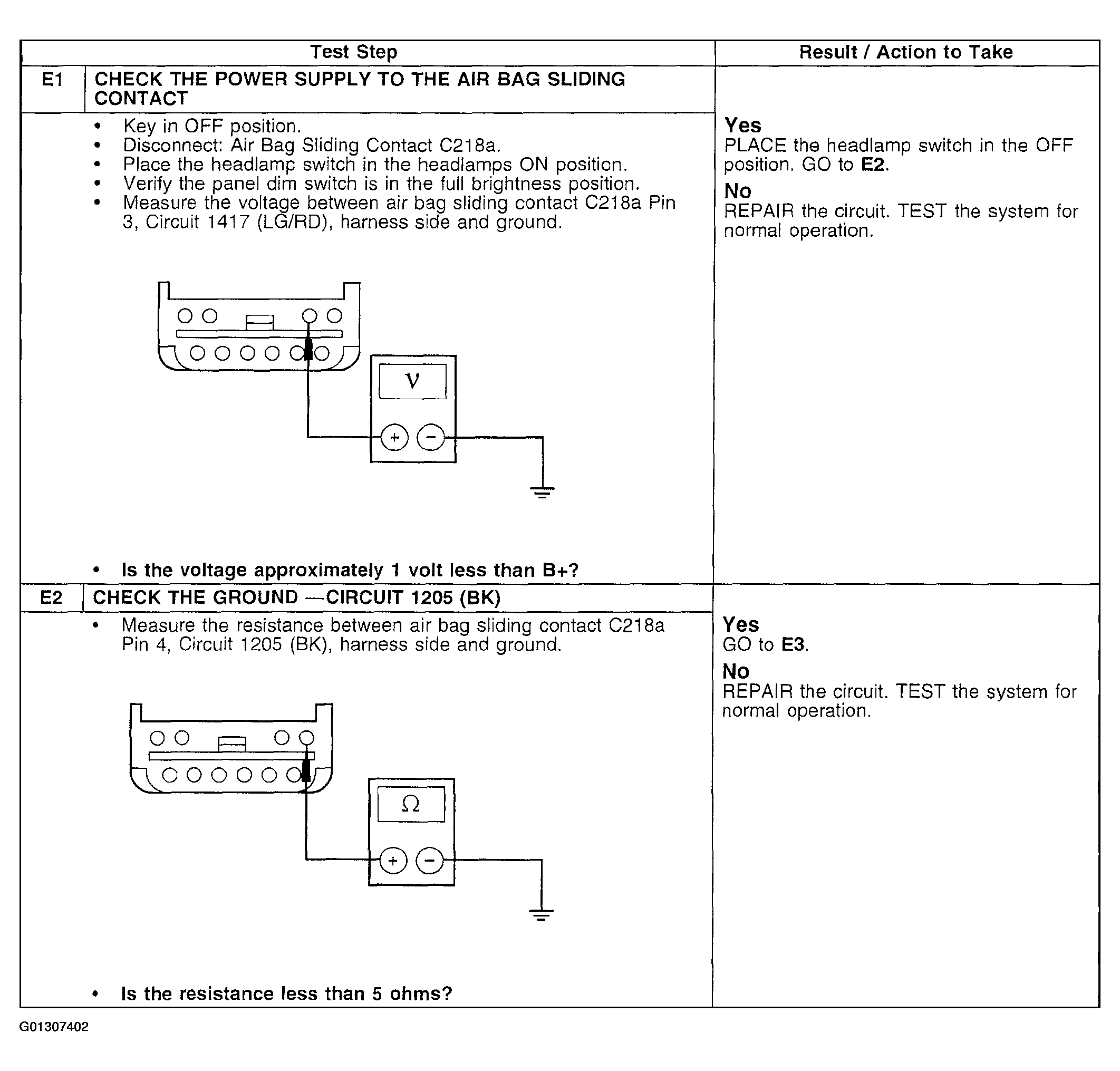

Fig 1: Pinpoint Test E: A Single Illumination Source Is Inoperative - Speed Control Actuator Switches (Steps E1-E2)
G01307402Courtesy of FORD MOTOR CO.

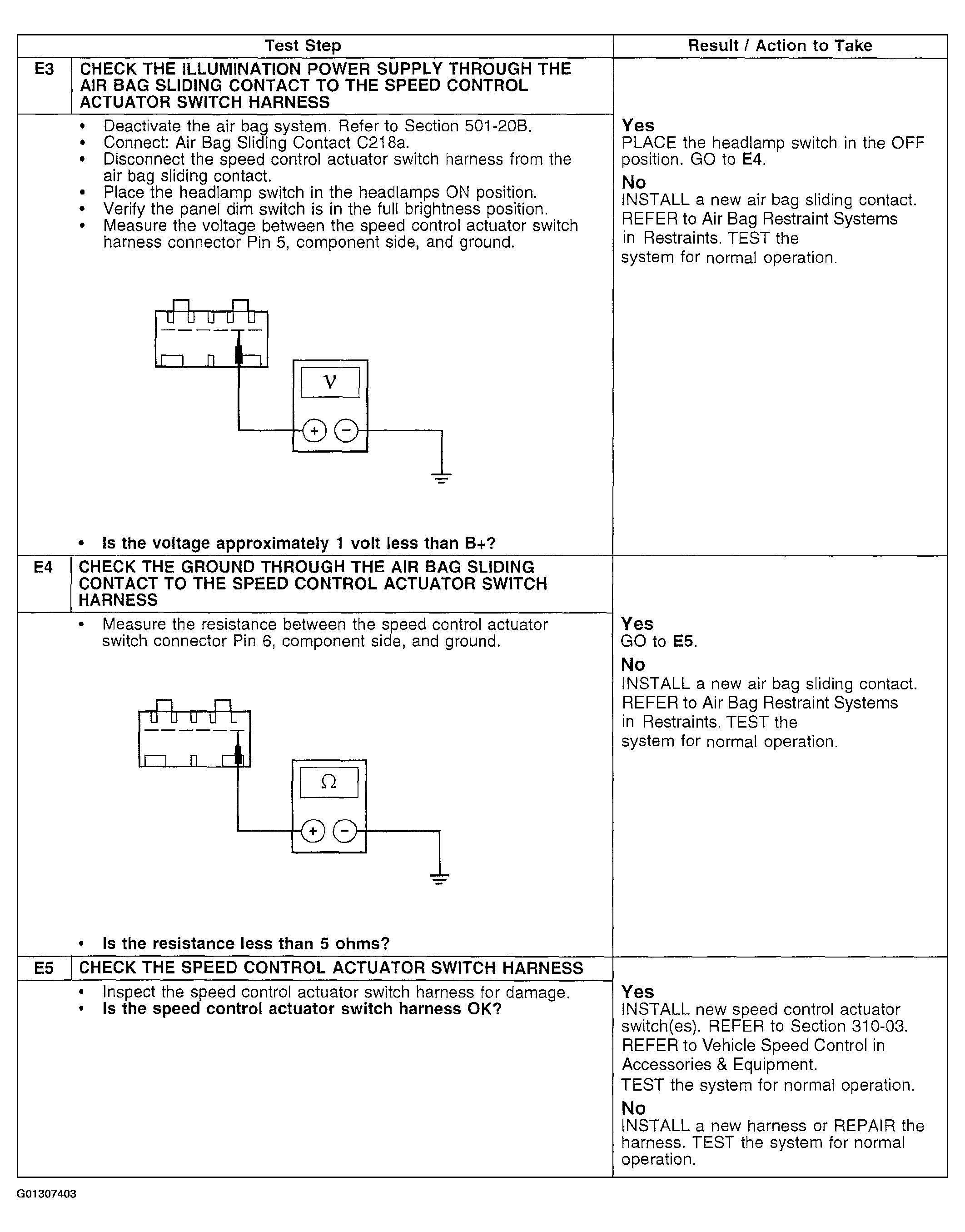

Fig 2: Pinpoint Test E: A Single Illumination Source Is Inoperative - Speed Control Actuator Switches (Steps E3-E5)
G01307403Courtesy of FORD MOTOR CO.
