Pinpoint Test D: A Single Illumination Source Is Inoperative

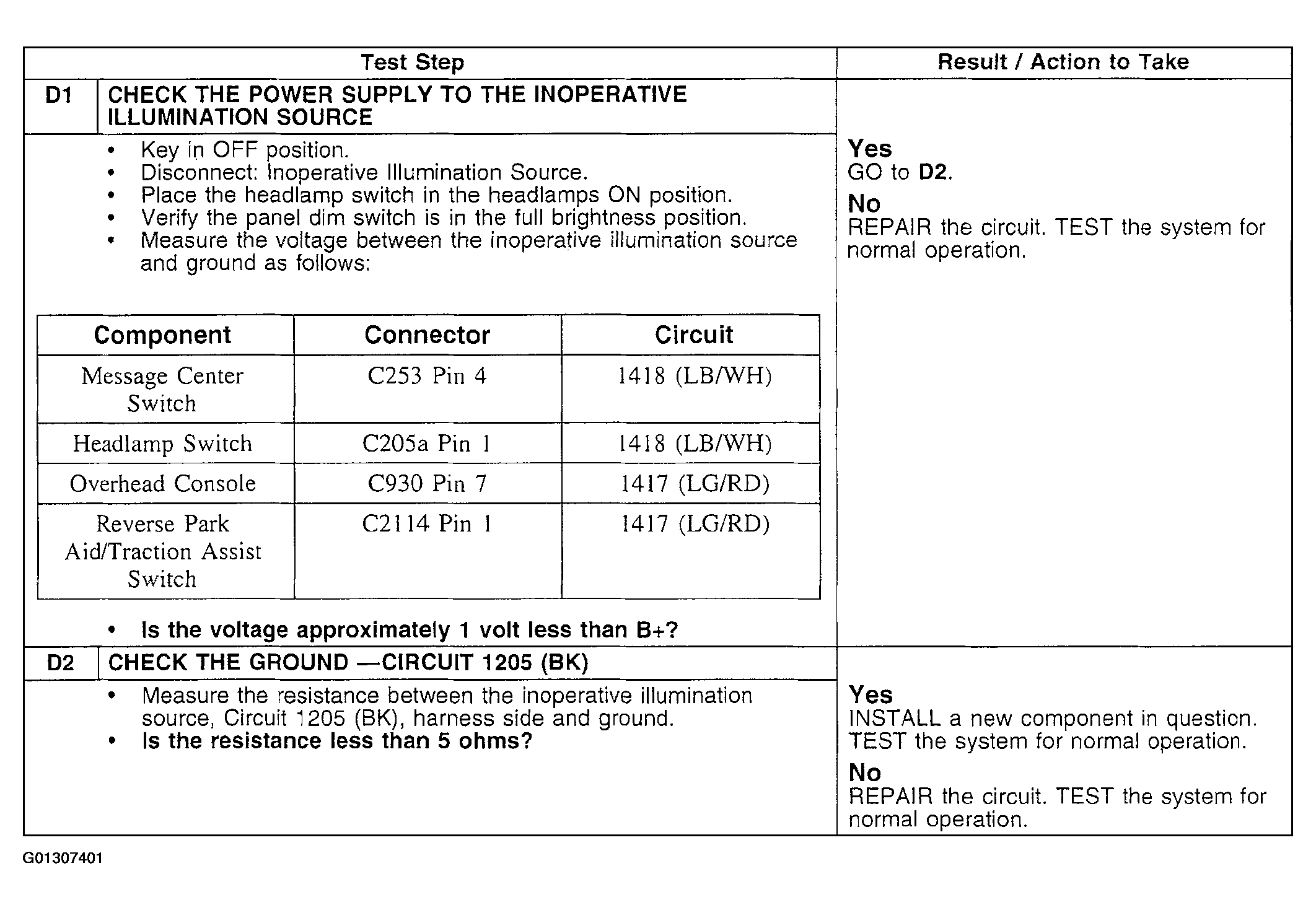

Fig 1: Pinpoint Test D: A Single Illumination Source Is Inoperative (Steps D1-D2)

G01307401

Courtesy of FORD MOTOR CO.
