Pinpoint Test B: The Climate Control Illumination Is Inoperative - Front Or Rear (If Equipped)

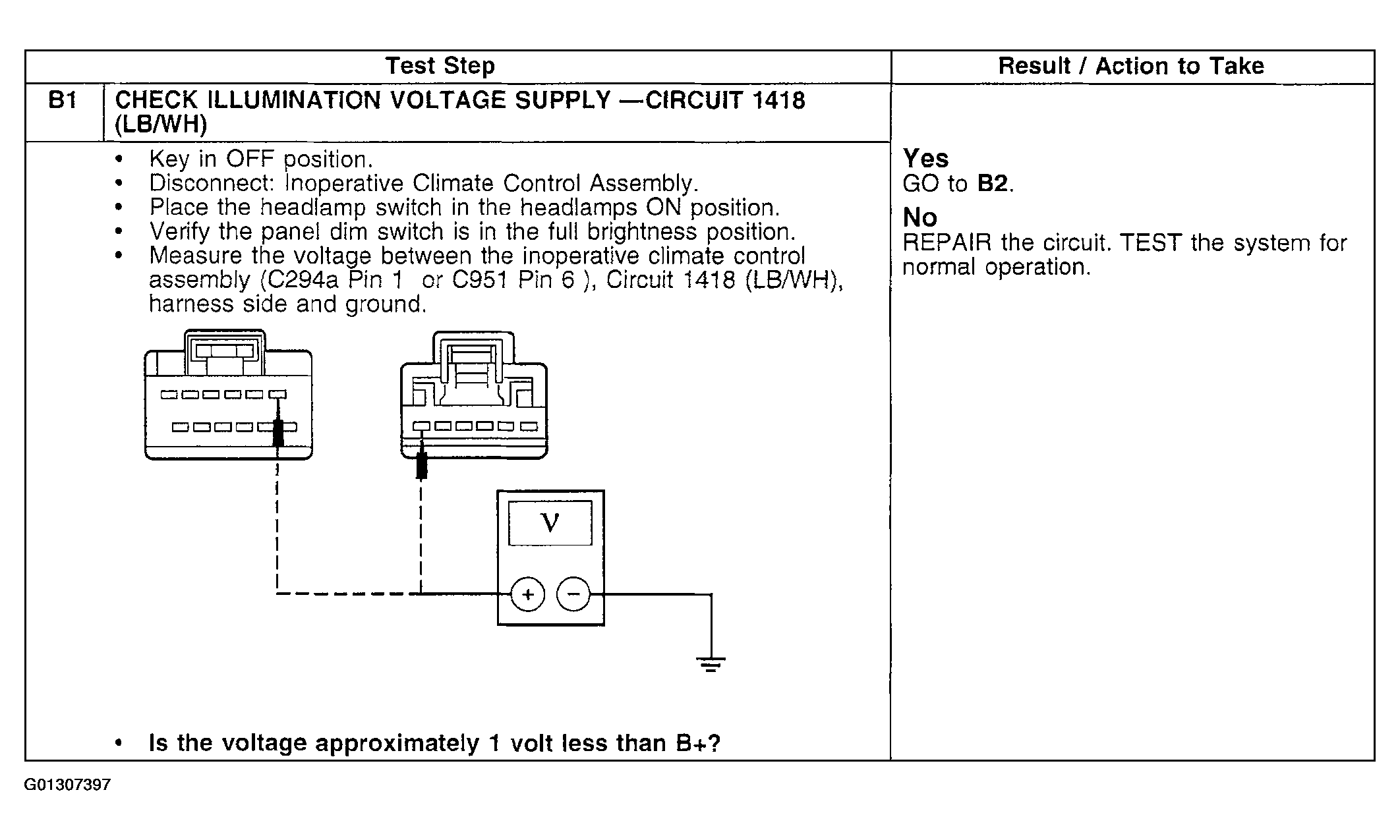

Fig 1: Pinpoint Test B: Climate Control Illumination Is Inoperative - Front Or Rear (If Equipped) (Steps B1)

Courtesy of FORD MOTOR CO.

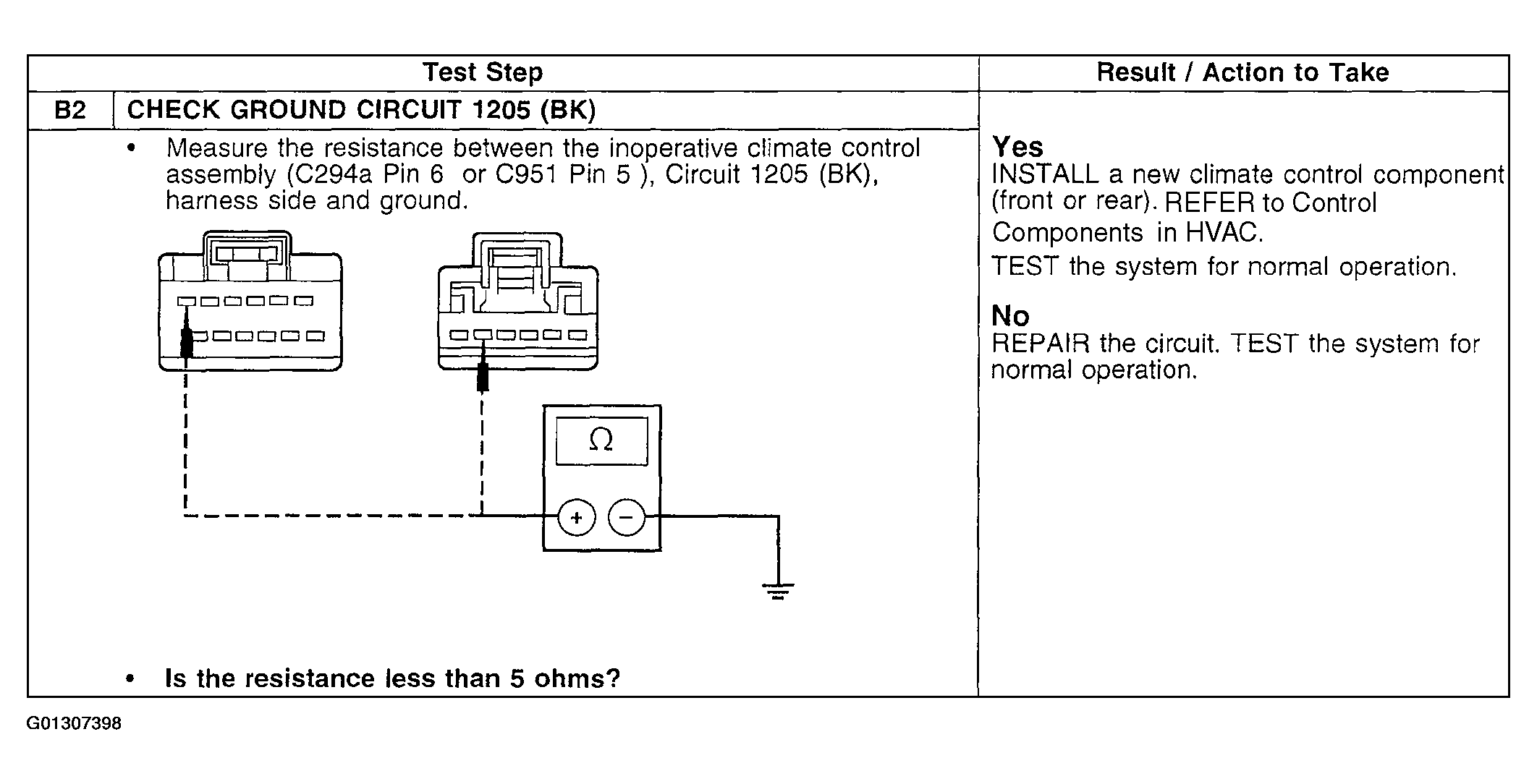

Fig 2: Pinpoint Test B: Climate Control Illumination Is Inoperative - Front Or Rear (If Equipped) (Steps B2)

Courtesy of FORD MOTOR CO.
