Pinpoint Test B: The Compass Is Inoperative

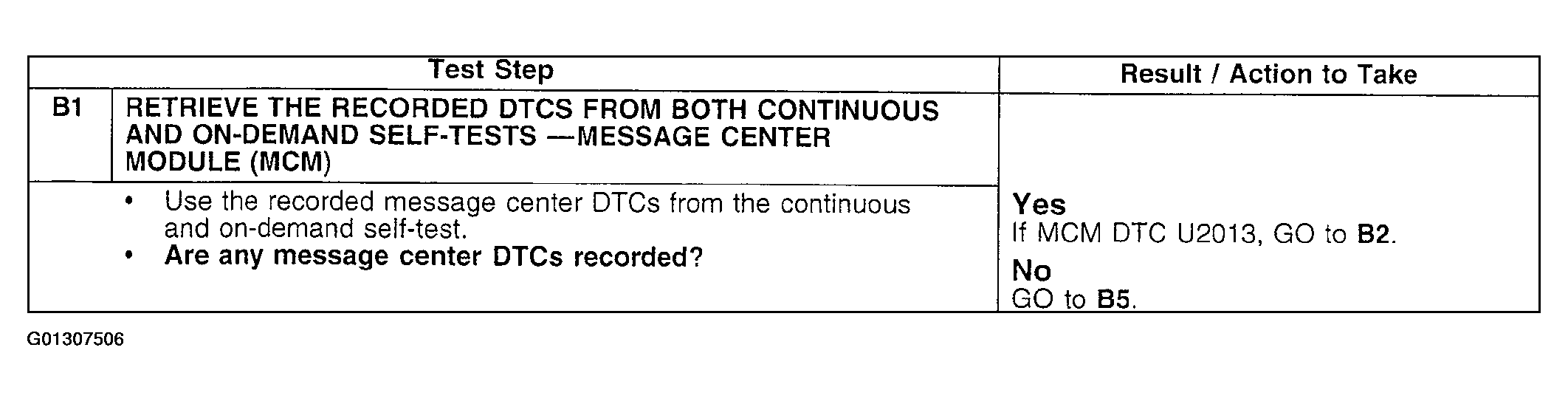

Fig 1: Pinpoint Test B: Compass Is Inoperative (Steps B1)
G01307506Courtesy of FORD MOTOR CO.

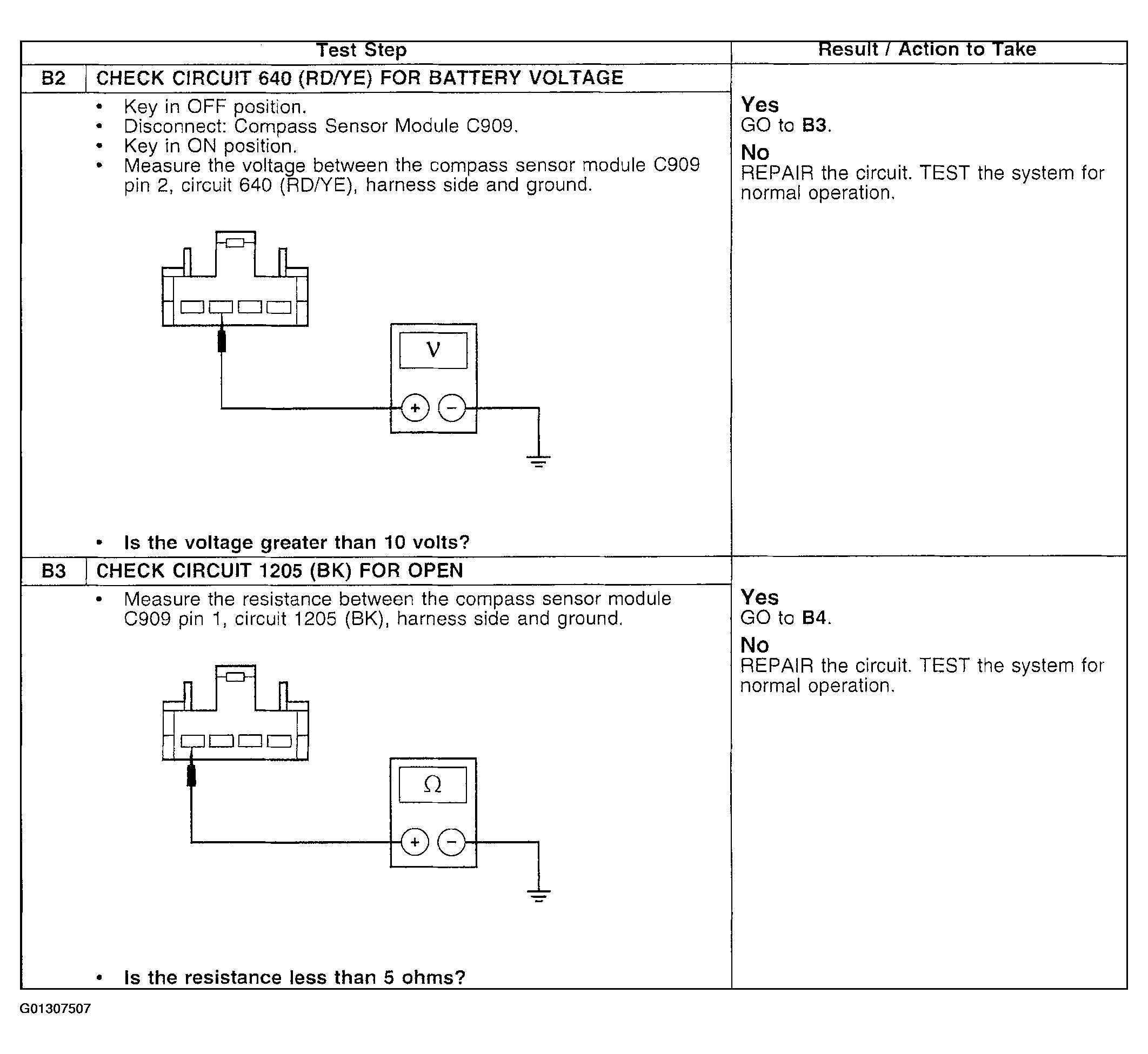

Fig 2: Pinpoint Test B: Compass Is Inoperative (Steps B2-B3)
G01307507Courtesy of FORD MOTOR CO.

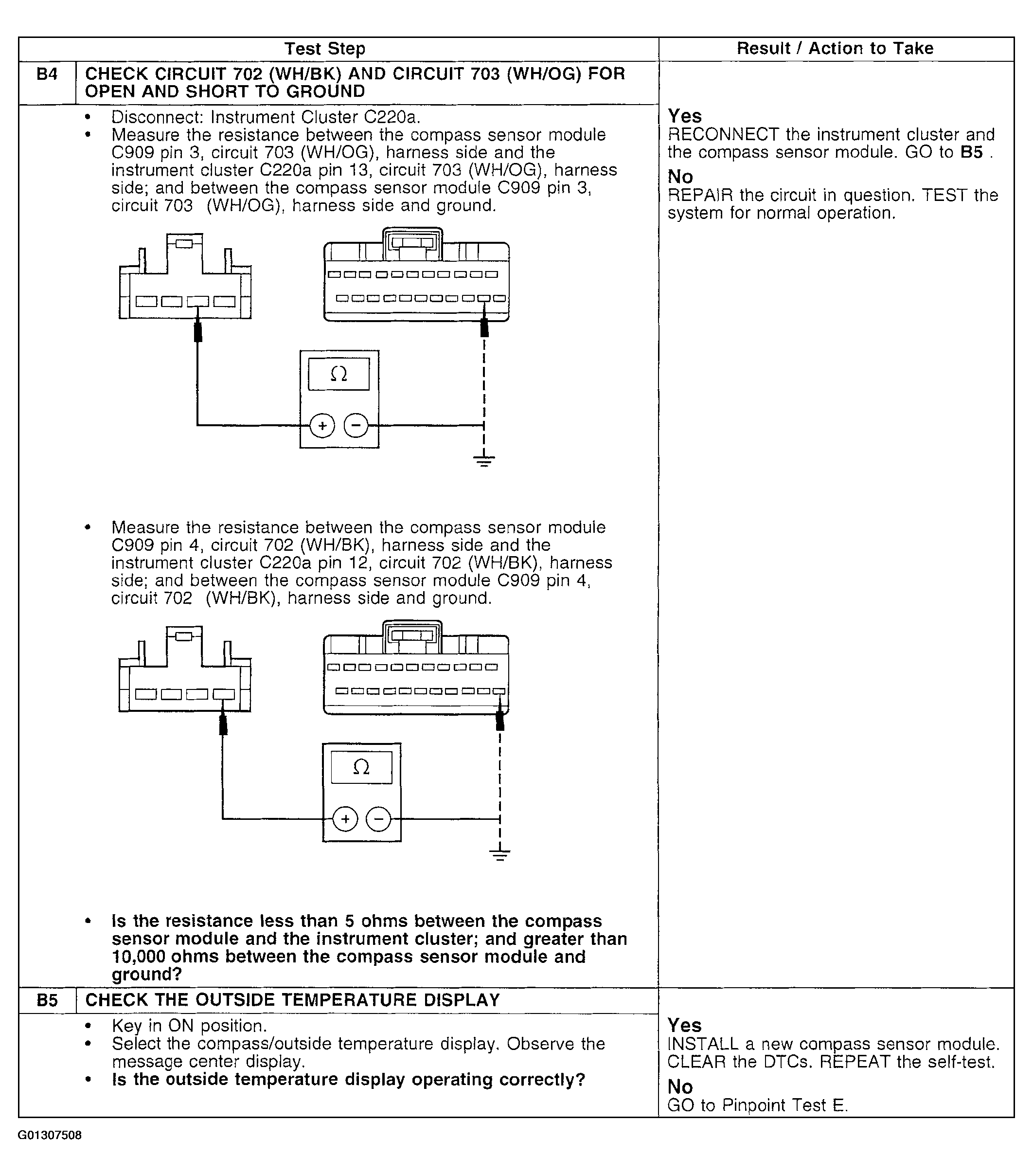

Fig 3: Pinpoint Test B: Compass Is Inoperative (Steps B4-B5)
G01307508Courtesy of FORD MOTOR CO.
