Pinpoint Test A: No Communication With The Message Center Module (MCM)

Fig 1: Pinpoint Test A: No Communication With Message Center Module (MCM) (Steps A1)
G01307504Courtesy of FORD MOTOR CO.

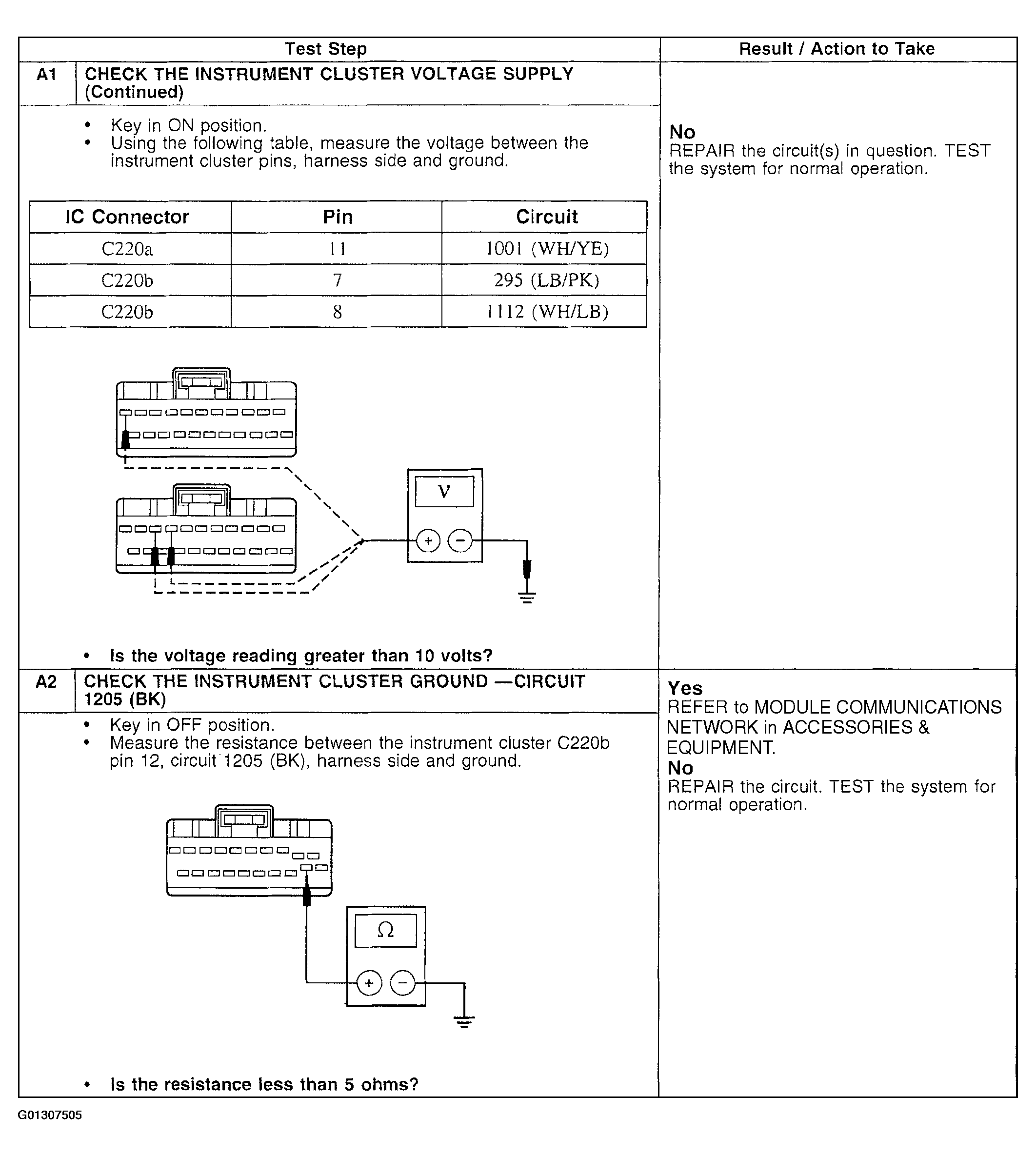

Fig 2: Pinpoint Test A: No Communication With Message Center Module (MCM) (Steps A1 Cont.-A2)
G01307505Courtesy of FORD MOTOR CO.
