Pinpoint Test F: The Instrument Panel Illumination Does Not Dim - Backlighting Is On At Full Brightness Level

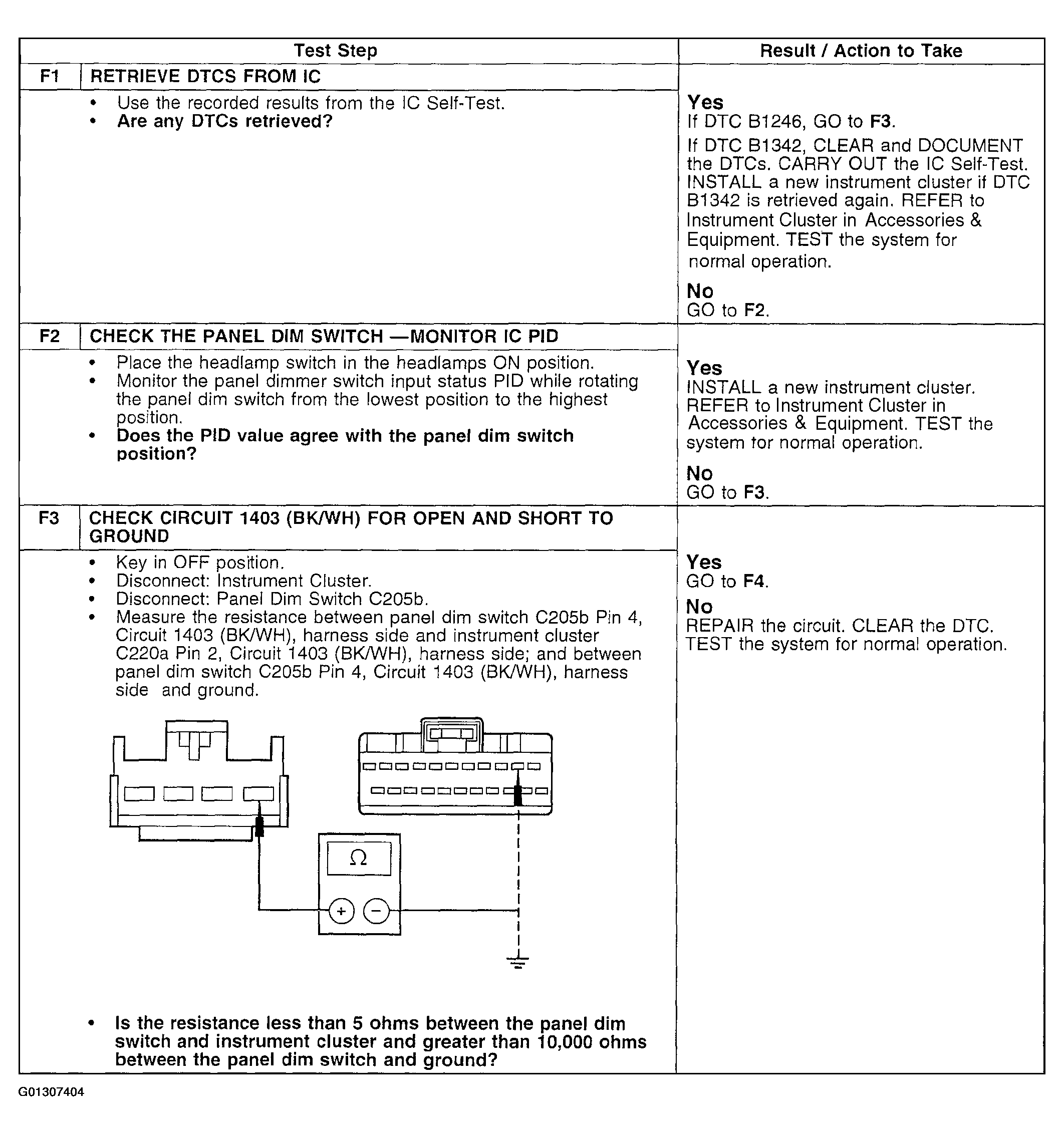

Fig 1: Pinpoint Test F: Instrument Panel Illumination Does Not Dim - Backlighting Is On At Full Brightness Level (Steps F1-F3)
G01307404Courtesy of FORD MOTOR CO.

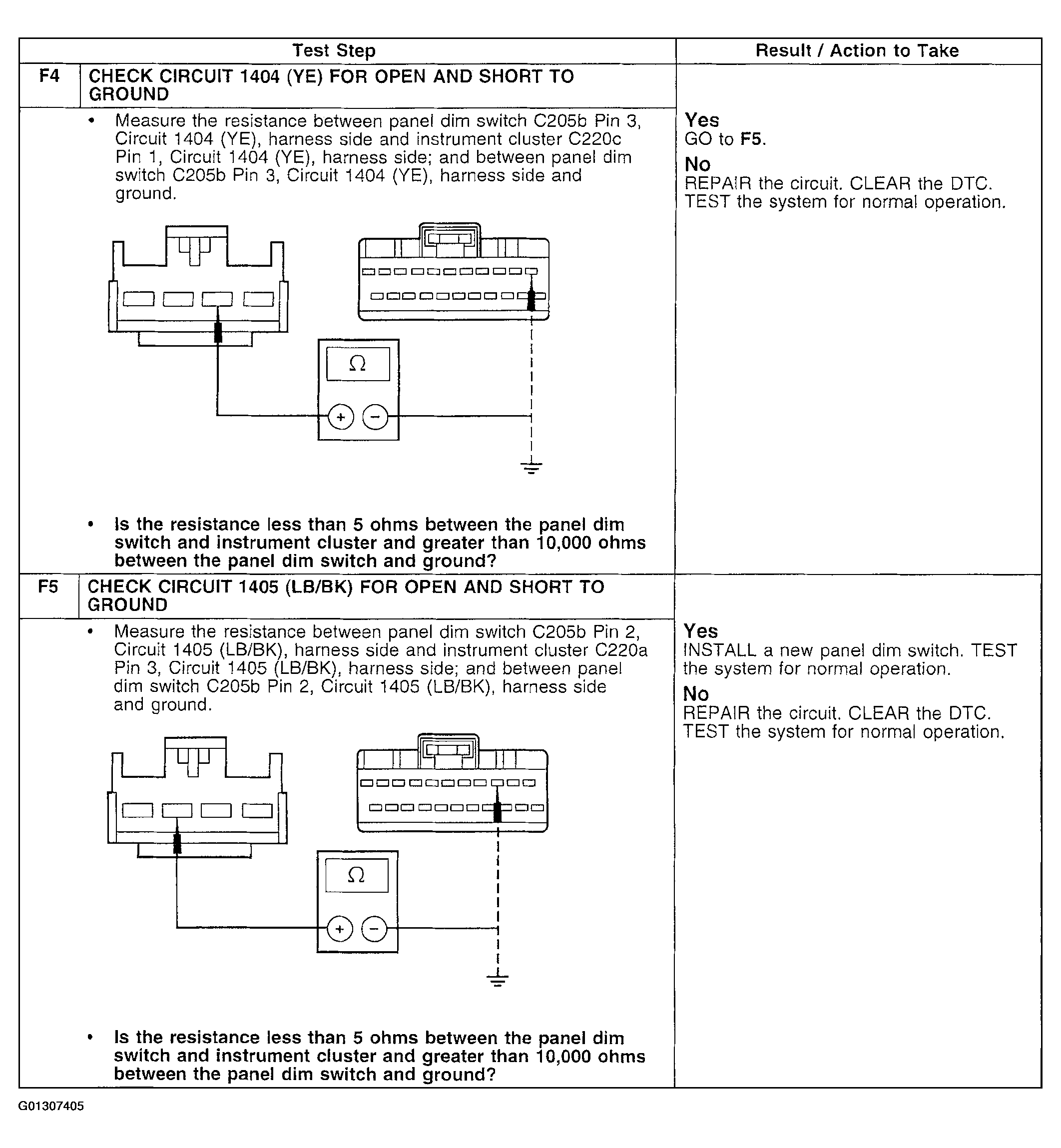

Fig 2: Pinpoint Test F: Instrument Panel Illumination Does Not Dim - Backlighting Is On At Full Brightness Level (Steps F4-F5)
G01307405Courtesy of FORD MOTOR CO.
