SHIFT CONCERNS: NO MANUAL 1st GEAR

Fig 1: Shift Concerns: No Manual 1st Gear - Routine 216/316 (1 Of 2)
G01308505Courtesy of FORD MOTOR CO.

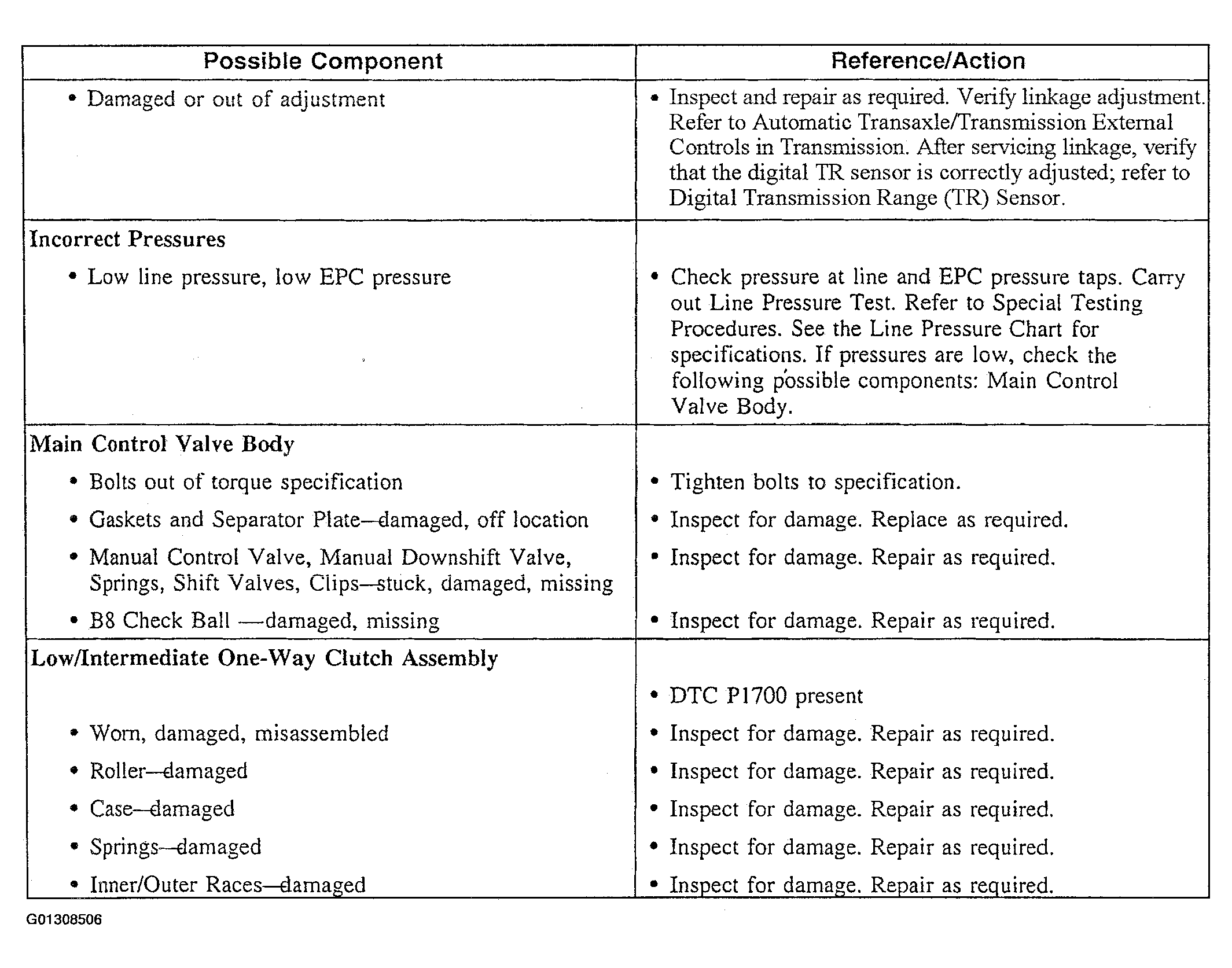

Fig 2: Shift Concerns: No Manual 1st Gear - Routine 216/316 (2 Of 2)
G01308506Courtesy of FORD MOTOR CO.
