Engagement Concern: No Forward And No Reverse

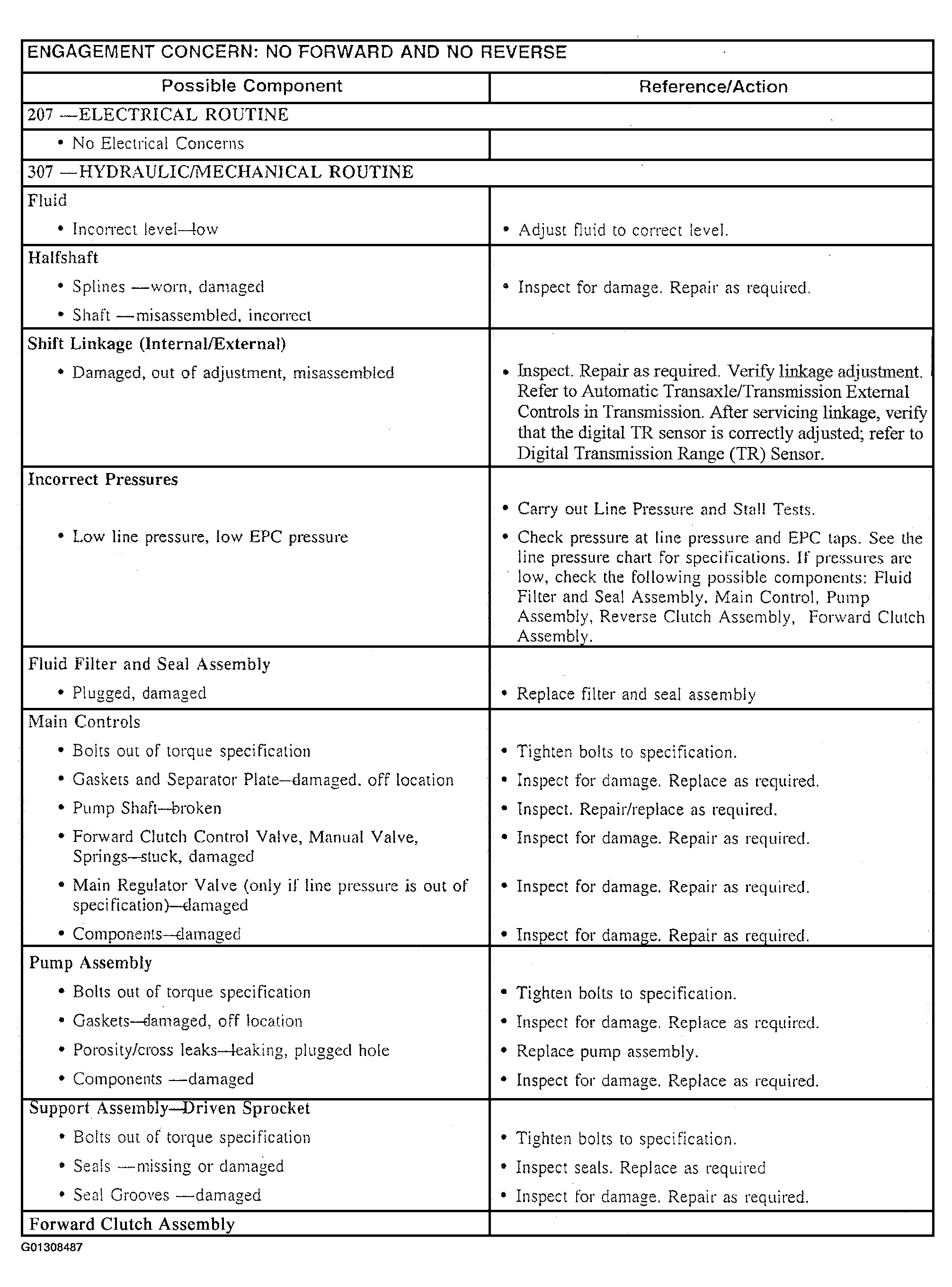

Fig 1: Engagement Concern: No Forward And No Reverse - Routine 207/307 (1 Of 2)
G01308487Courtesy of FORD MOTOR CO.

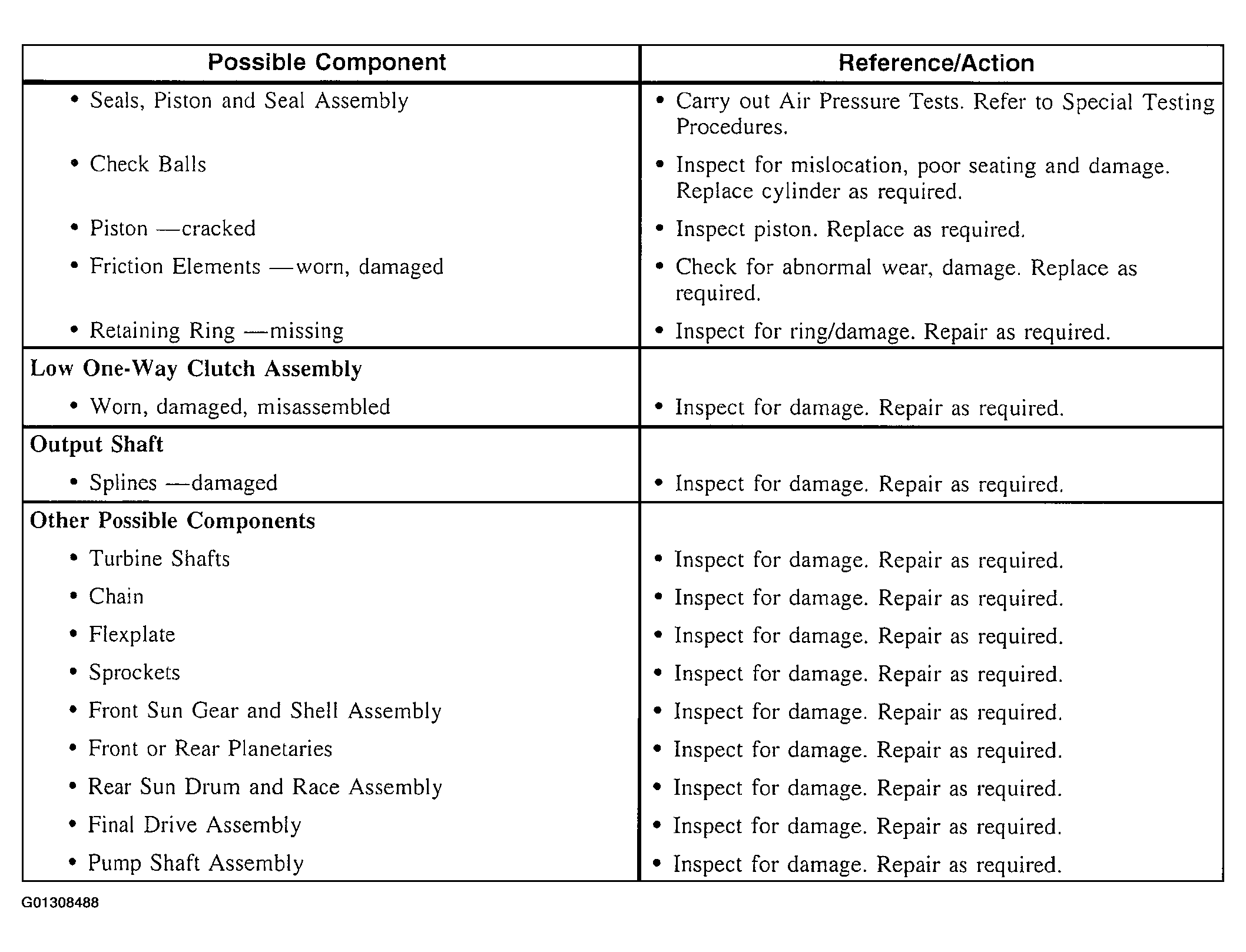

Fig 2: Engagement Concern: No Forward And No Reverse - Routine 207/307 (2 Of 2)
G01308488Courtesy of FORD MOTOR CO.
