Brake Booster: Removal

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the air cleaner assembly.
Remove the brake master cylinder (2140). For additional information, refer to HYDRAULIC BRAKE ACTUATION .
Disconnect the power brake booster check valve vacuum hose.

Fig 1: Disconnecting Power Brake Booster Check Valve Vacuum Hose
Courtesy of FORD MOTOR CO.
For 3.8L engine only; disconnect the speed control and the accelerator cables.

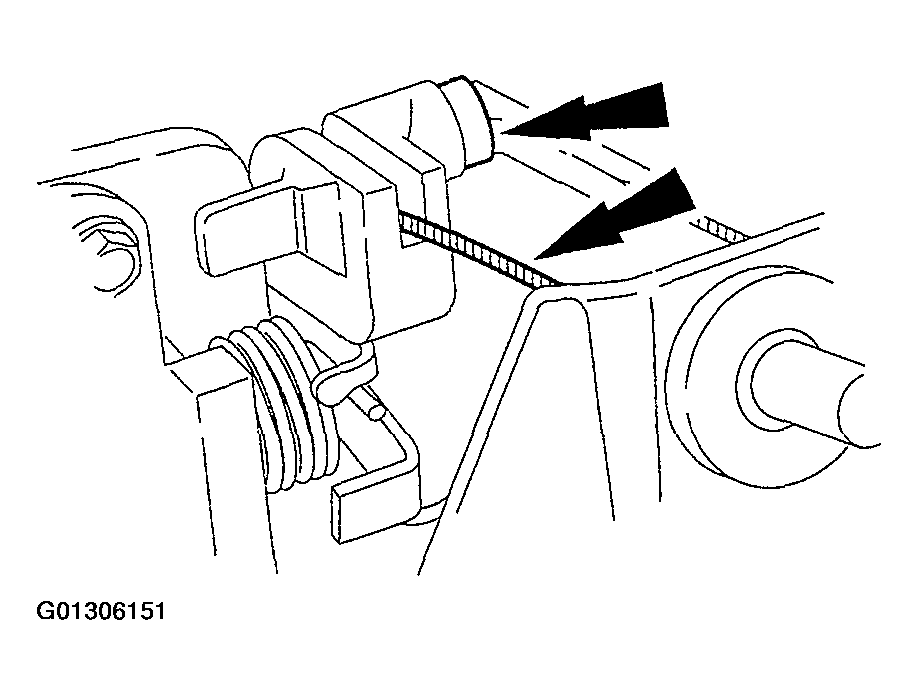

Fig 2: Disconnecting Speed Control And Accelerator Cables
Courtesy of FORD MOTOR CO.
For 3.8L engine only; remove the wiring harness retaining bracket.

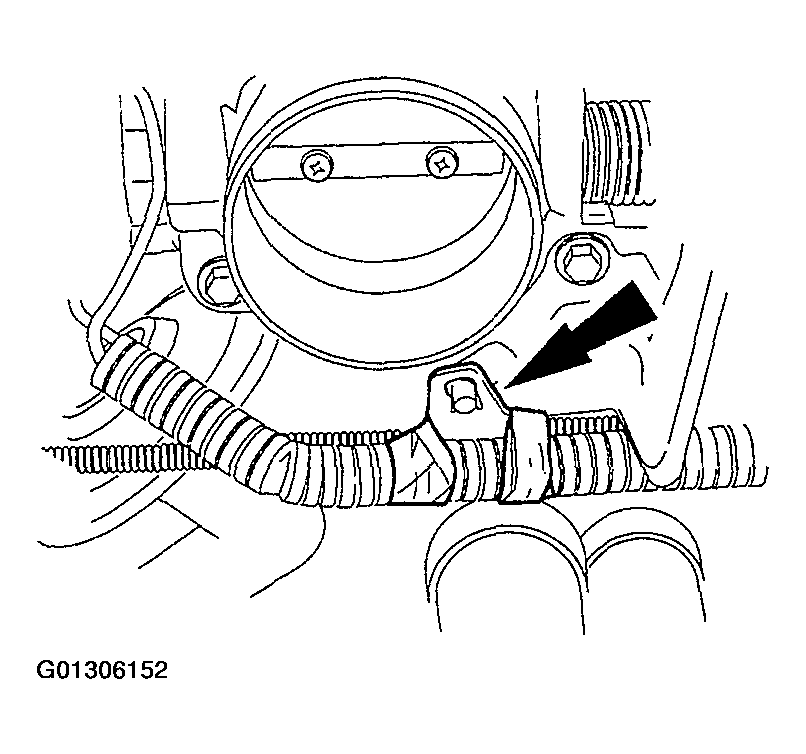

Fig 3: Removing Wiring Harness Retaining Bracket
Courtesy of FORD MOTOR CO.
For 3.8L engine only; remove the cable bracket bolts and position bracket aside.

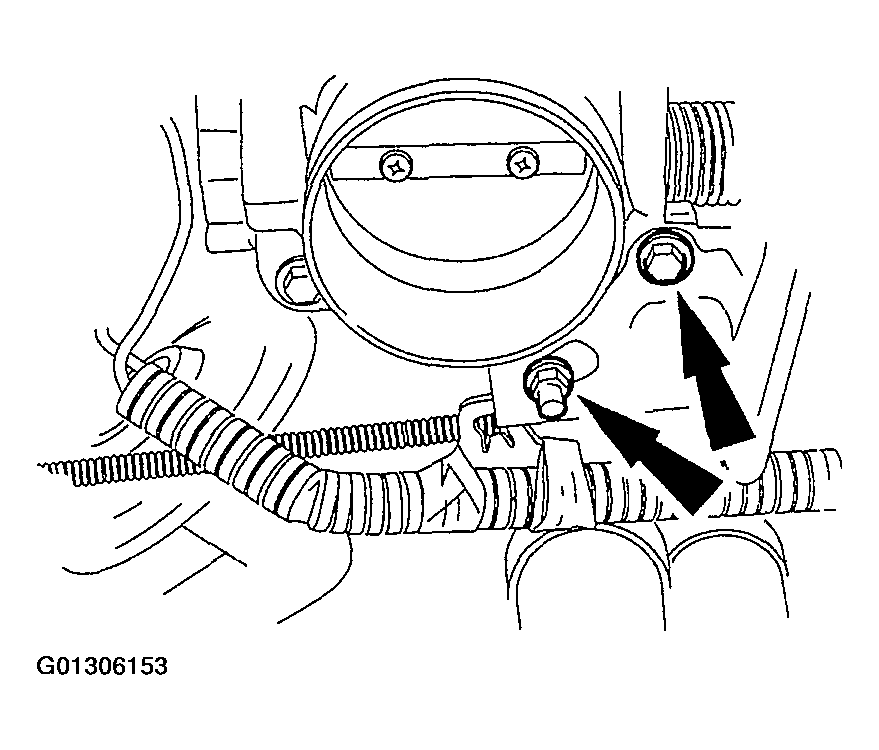

Fig 4: Removing Cable Bracket Bolts And Position Bracket Aside
Courtesy of FORD MOTOR CO.
For 3.8L engine only; remove the speed control module bolts and position module aside.

Fig 5: Removing Speed Control Module Bolts And Position Module Aside
Courtesy of FORD MOTOR CO.
For 3.8L engine only; remove the instrument close-out panel bolts and then remove the panel.

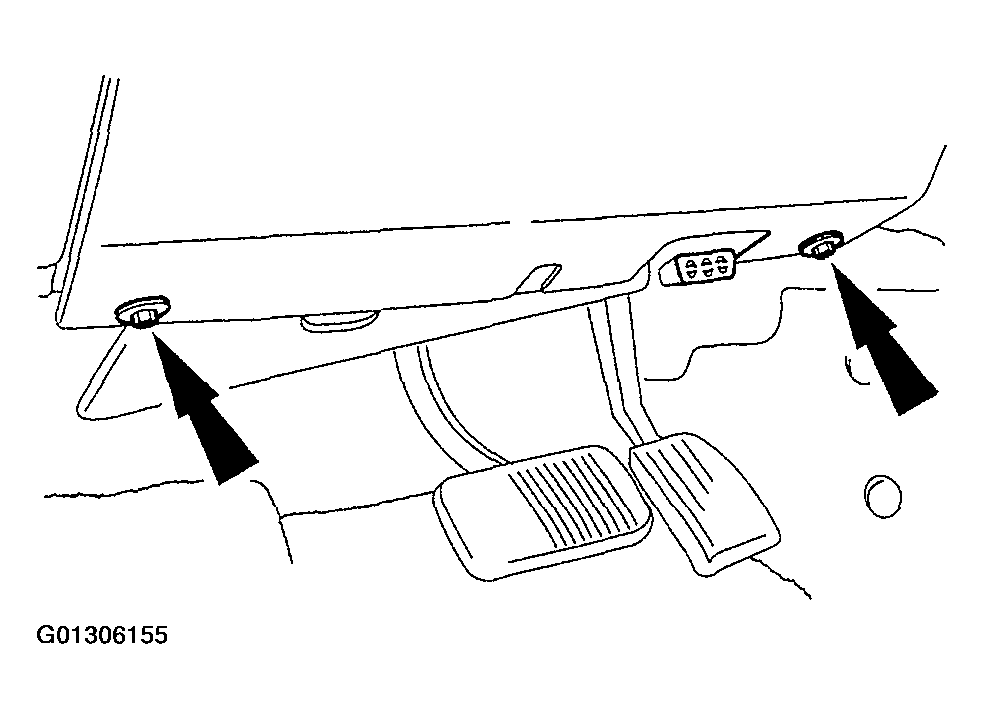

Fig 6: Removing Instrument Close-Out Panel Bolts
Courtesy of FORD MOTOR CO.
Remove the stoplight switch (13480) self-locking pin.

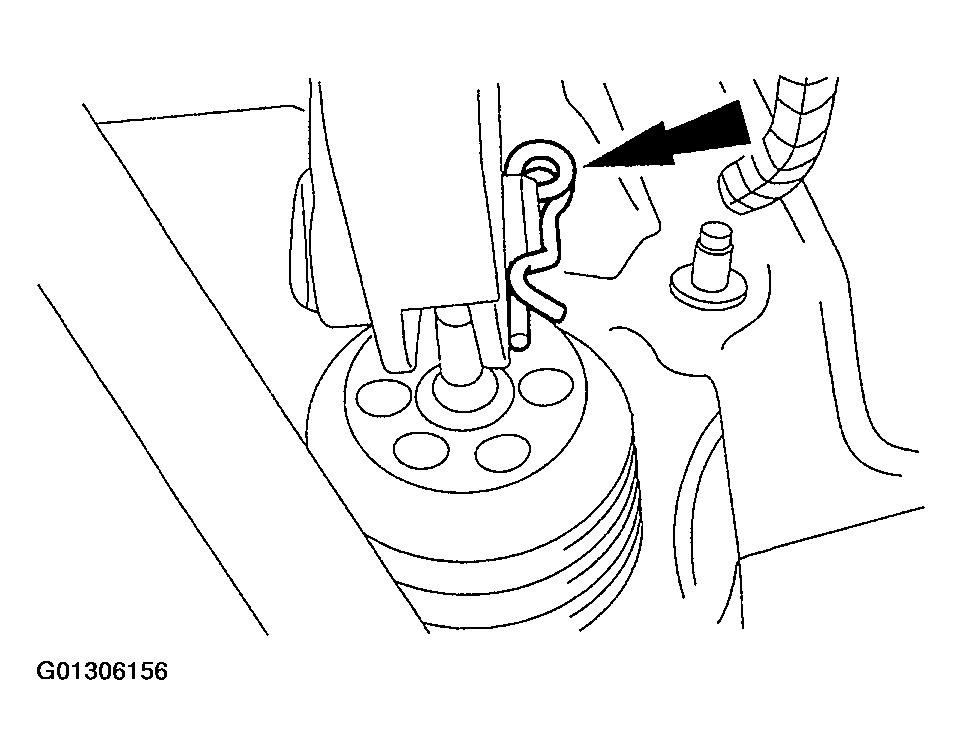

Fig 7: Removing Stoplight Switch (13480) Self-Locking Pin
Courtesy of FORD MOTOR CO.
Slide the stoplight switch and booster push rod and the bushing off the brake pedal pin.

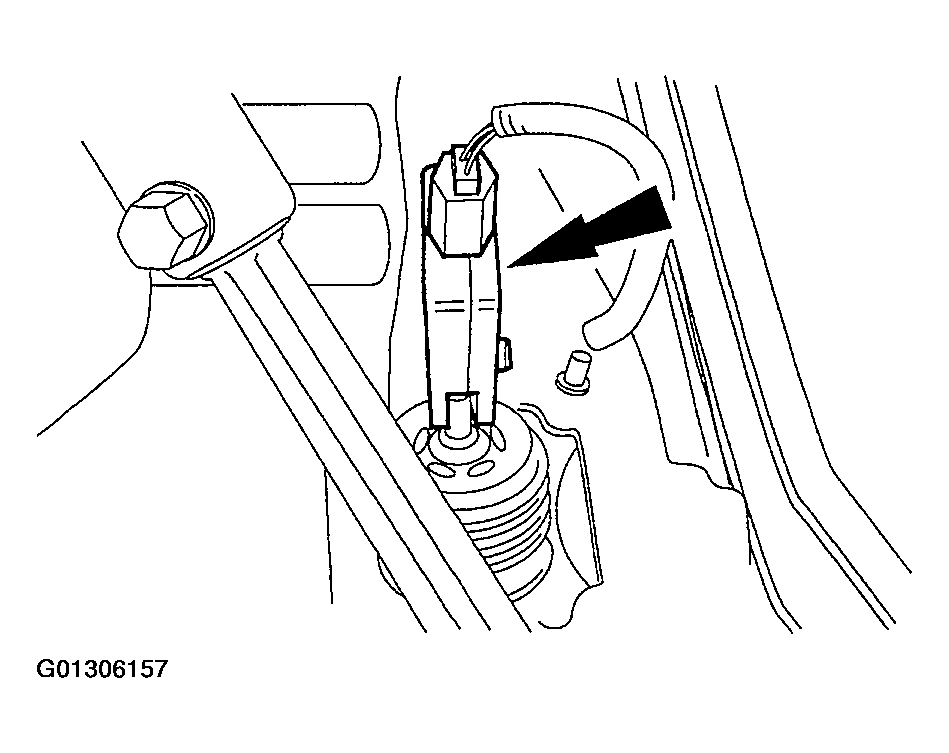

Fig 8: Removing Stoplight Switch And Booster Push Rod
Courtesy of FORD MOTOR CO.
Remove the power brake booster nuts.

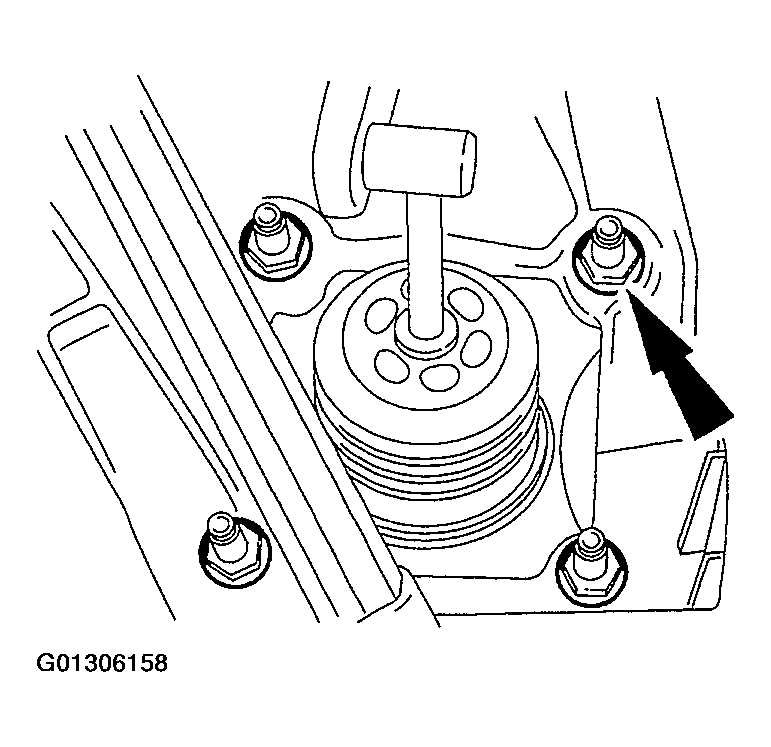

Fig 9: Removing Power Brake Booster Nuts
Courtesy of FORD MOTOR CO.
Remove the power brake booster (2005).

Fig 10: Removing Power Brake Booster (2005)
Courtesy of FORD MOTOR CO.
