Brake Booster: Installation

  1. Follow the removal procedure in reverse order.

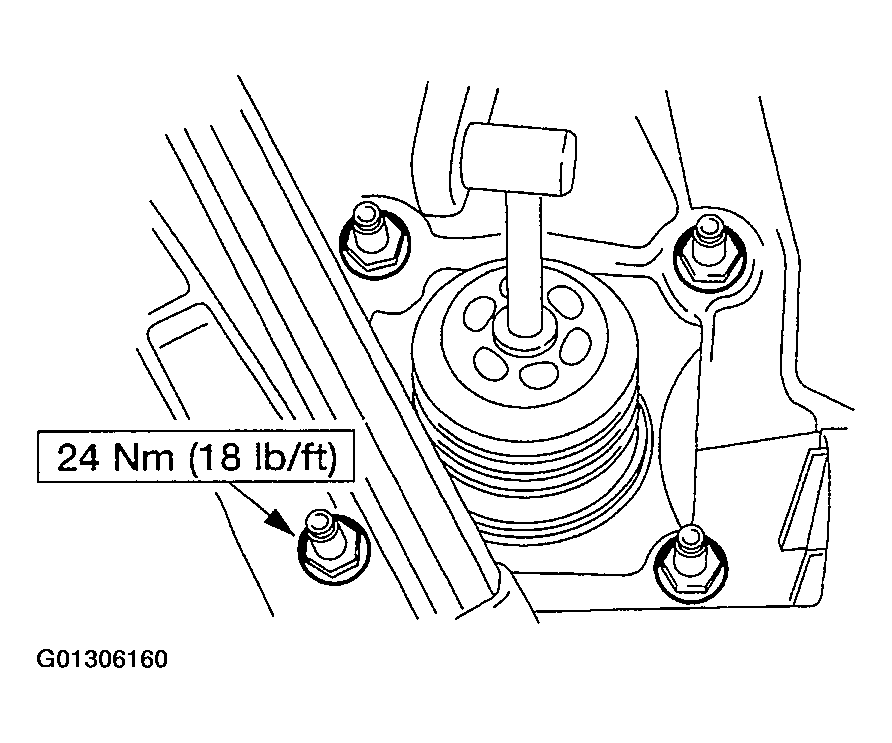

    Fig 1: Installing Power Brake Booster Nuts
    G01306160Courtesy of FORD MOTOR CO.

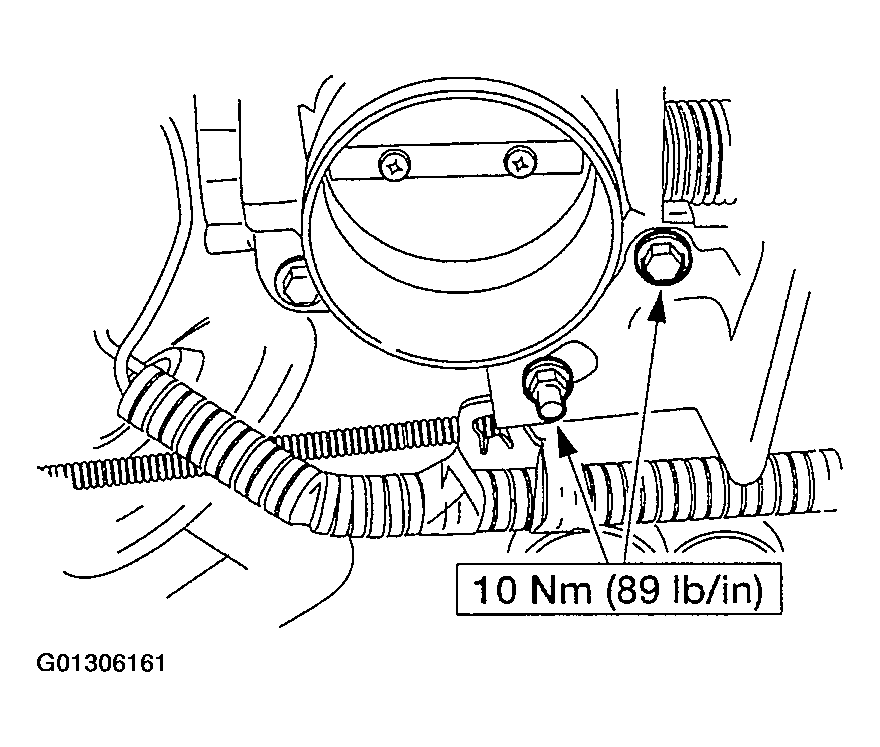

    Fig 2: Installing Wiring Harness Retaining Bracket
    G01306161Courtesy of FORD MOTOR CO.
    Fig 3: Installing Speed Control Module Bolts And Position Module Aside
    G01306162Courtesy of FORD MOTOR CO.
