Pinpoint Test E: Turbine Shaft Speed (TSS), Intermediate Shaft Speed (ISS), And Output Shaft Speed (OSS) Sensors

NOTE: Refer to the TURBINE SHAFT SPEED (TSS) , INTERMEDIATE SHAFT SPEED (ISS) , and OUTPUT SHAFT SPEED (OSS)  sensor connector illustrations preceding these pinpoint tests.

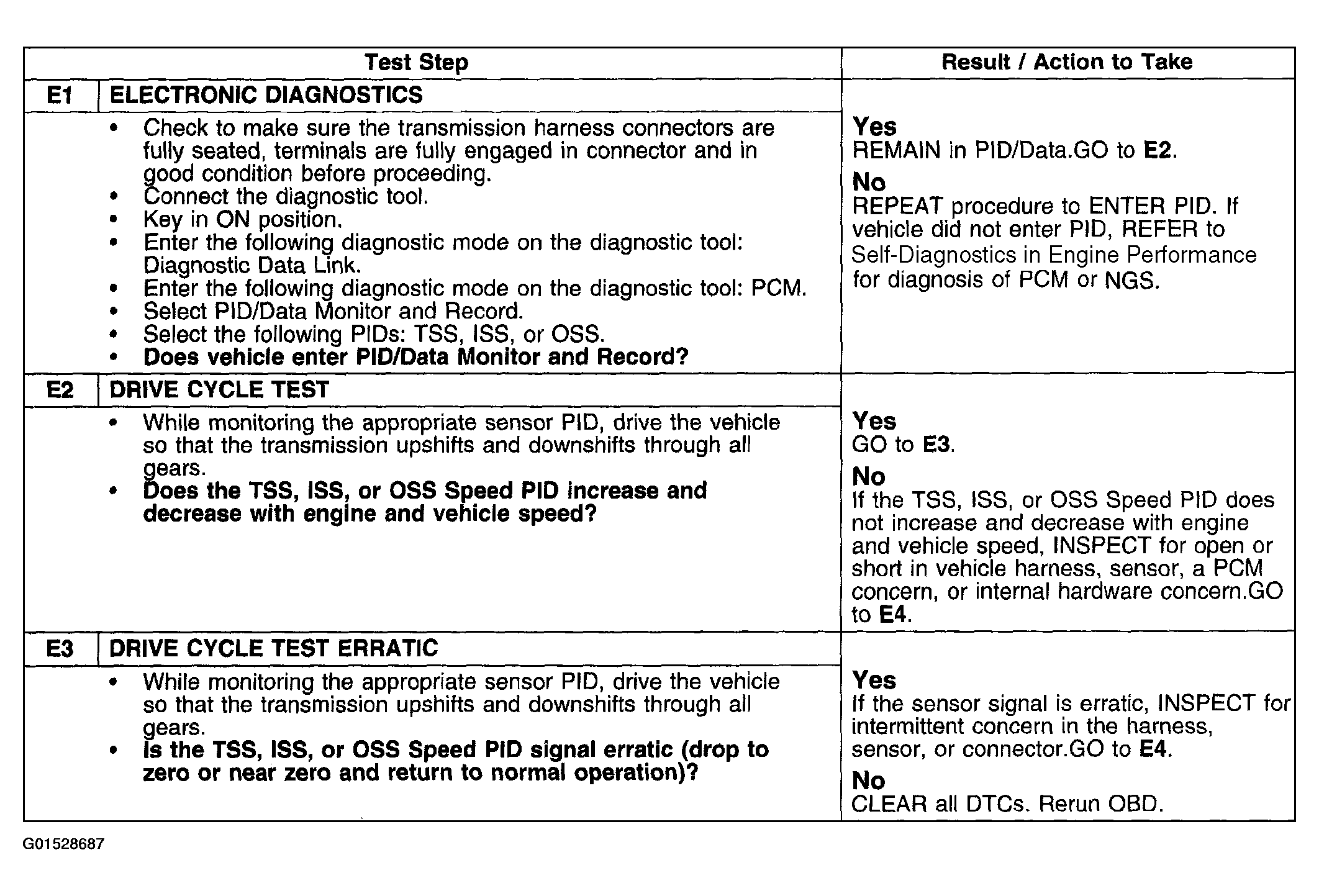

Fig 1: Pinpoint Test E: Turbine Shaft Speed, Intermediate Shaft Speed, And Output Shaft Speed Sensors (E1-E3)

Courtesy of FORD MOTOR CO.

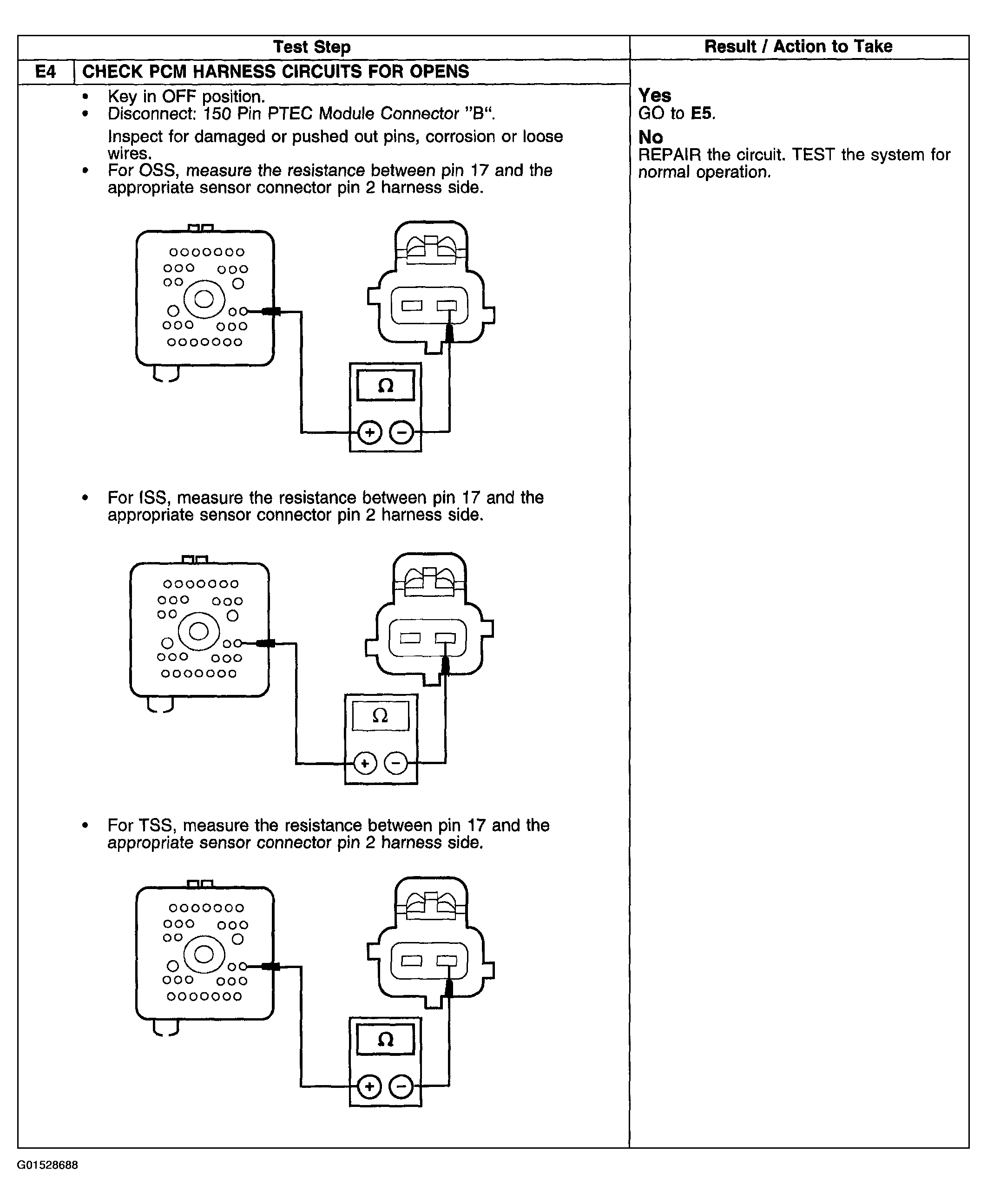

Fig 2: Pinpoint Test E: Turbine Shaft Speed, Intermediate Shaft Speed, And Output Shaft Speed Sensors (E4)

Courtesy of FORD MOTOR CO.

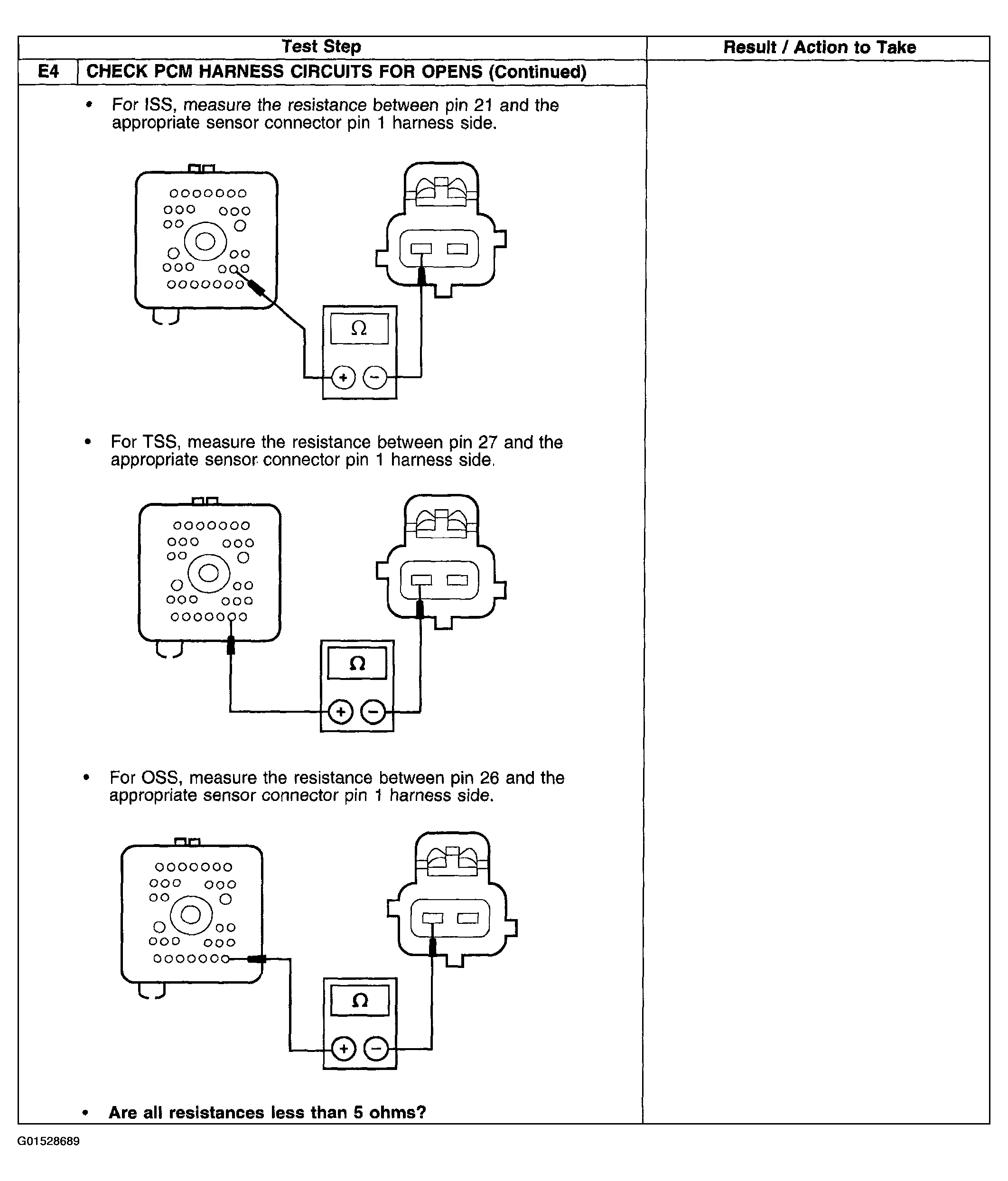

Fig 3: Pinpoint Test E: Turbine Shaft Speed, Intermediate Shaft Speed, And Output Shaft Speed Sensors (E4 CONTD)

Courtesy of FORD MOTOR CO.

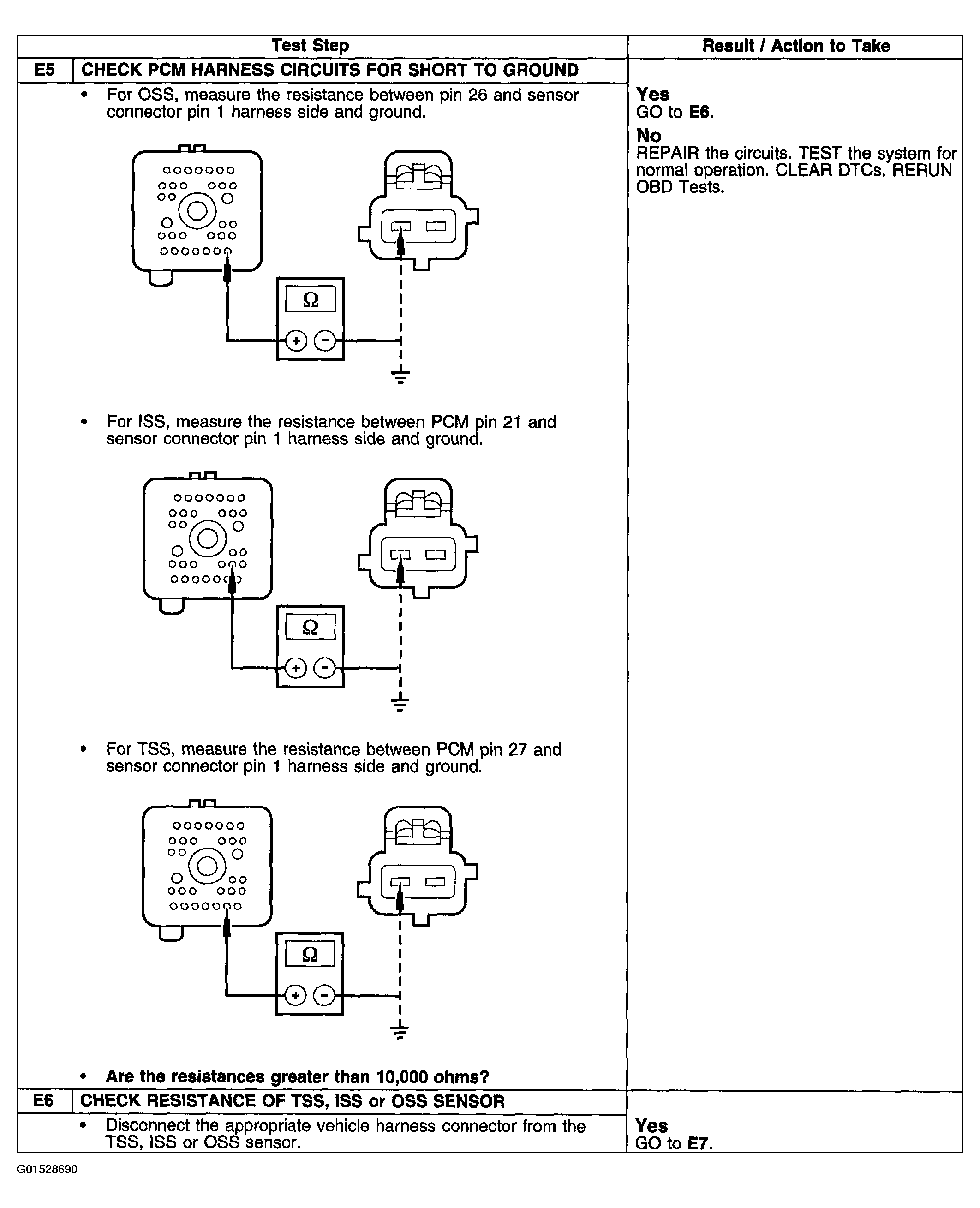

Fig 4: Pinpoint Test E: Turbine Shaft Speed, Intermediate Shaft Speed, And Output Shaft Speed Sensors (E5-E6)

Courtesy of FORD MOTOR CO.

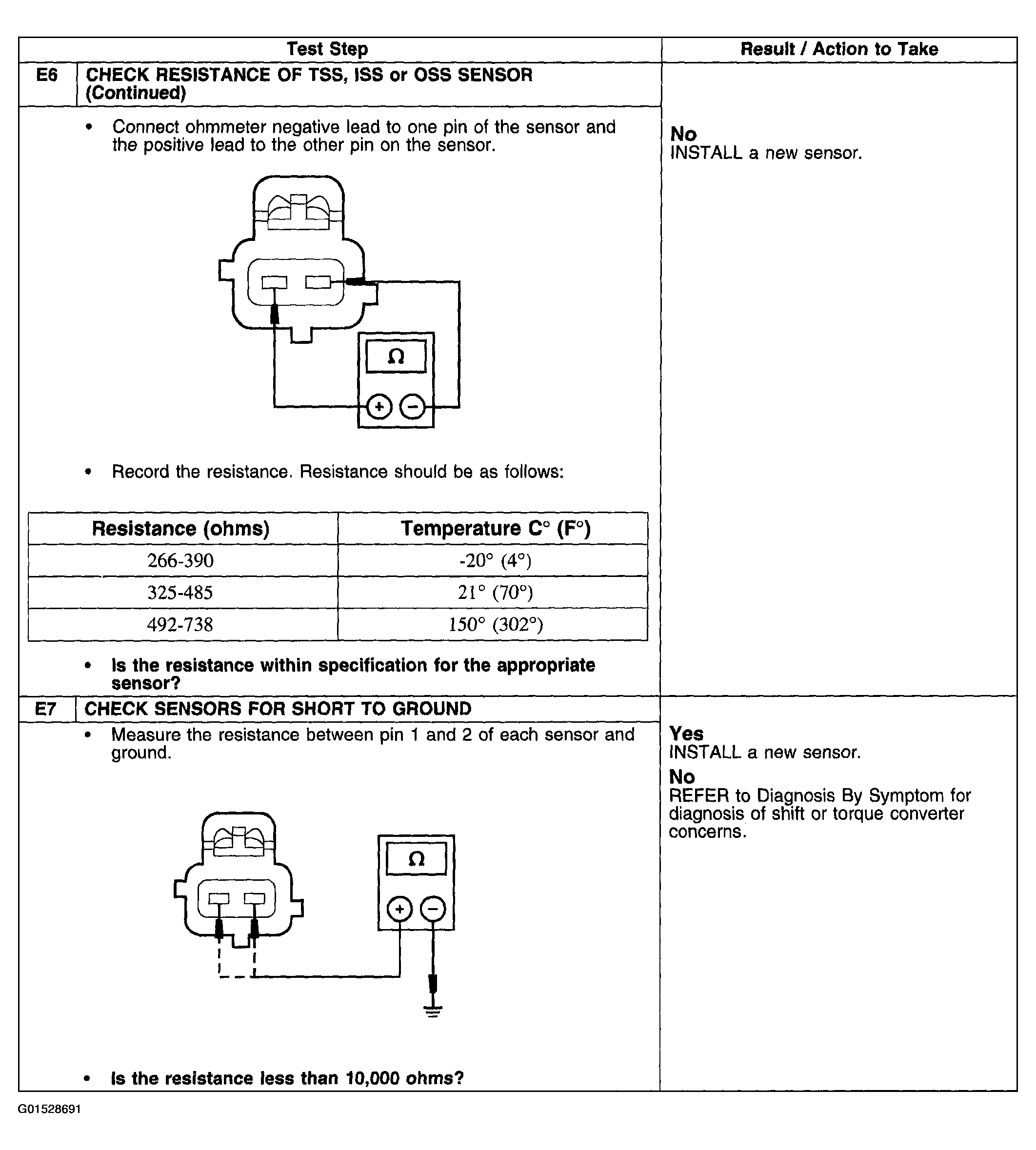

Fig 5: Pinpoint Test E: Turbine Shaft Speed, Intermediate Shaft Speed, And Output Shaft Speed Sensors (E6-E7)

Courtesy of FORD MOTOR CO.
