Home >> Ford >> 2003 >> Thunderbird >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle/Transmission >> Diagnosis And Testing >> Diagnosis By Symptom >> Diagnostic Routines >> Routine 216 - Engagement Concern: No 1st Gear in Manual 1 Position

Routine 216 - Engagement Concern: No 1st Gear in Manual 1 Position

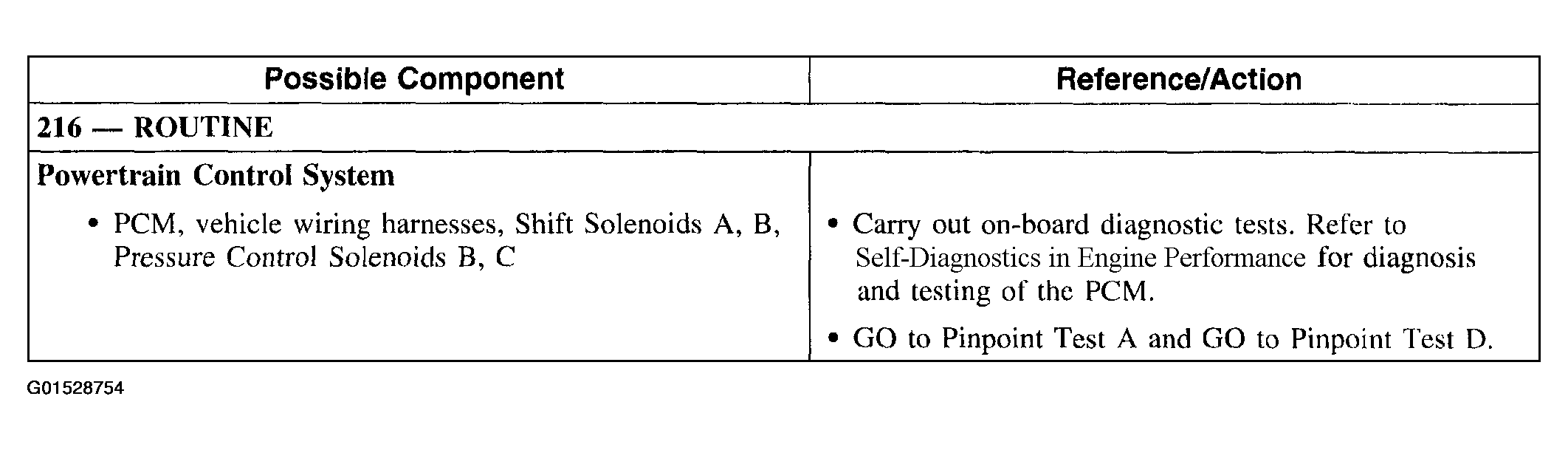

Fig 1: Engagement Concern: No 1st Gear In Manual 1 Position (1 Of 2)
G01528754Courtesy of FORD MOTOR CO.

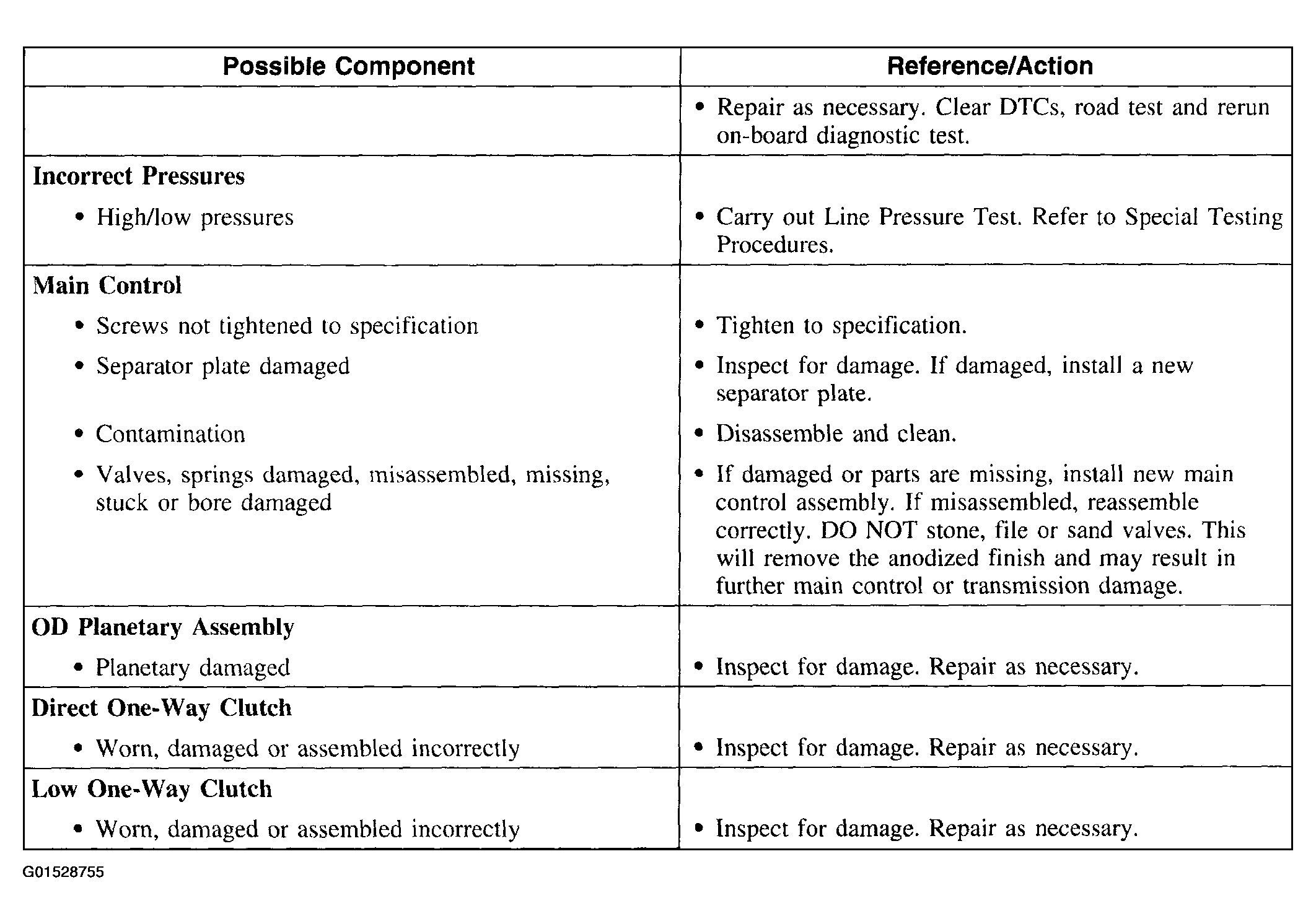

Fig 2: Engagement Concern: No 1st Gear In Manual 1 Position (2 Of 2)
G01528755Courtesy of FORD MOTOR CO.
