Routine 215 - Shift Concern: No 1st and 2nd Gear in Drive, Engages in a Higher Gear

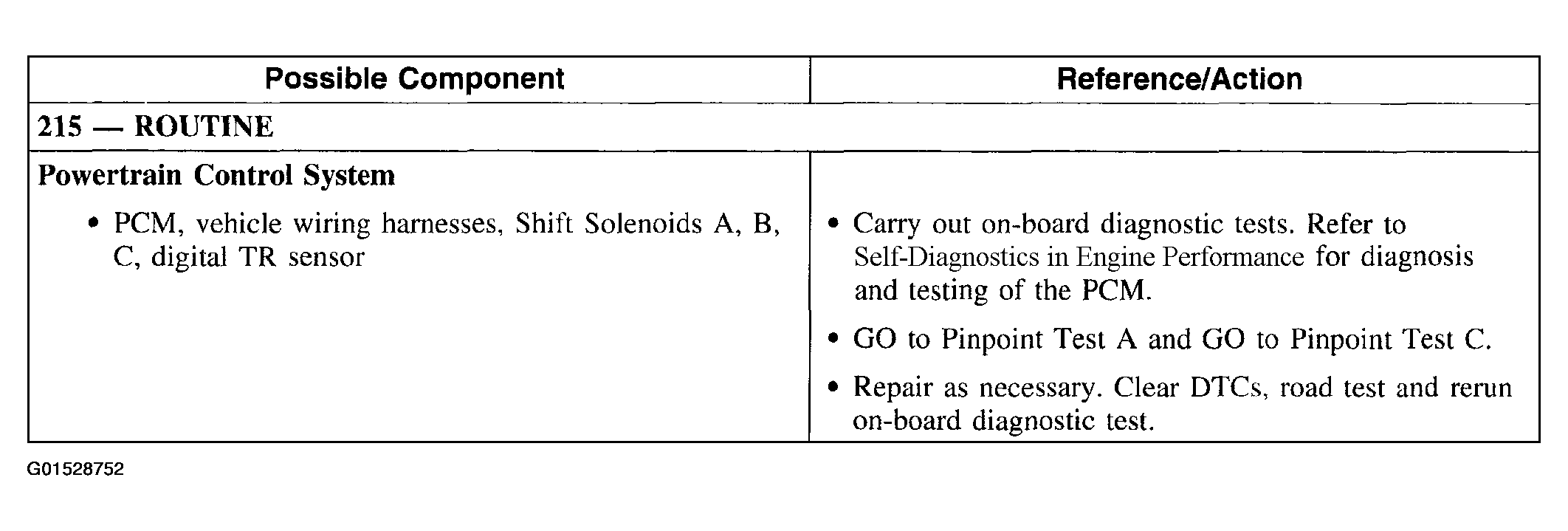

Fig 1: Shift Concern: No 1st And 2nd Gear In Drive, Engages In A Higher Gear (1 Of 2)
G01528752Courtesy of FORD MOTOR CO.

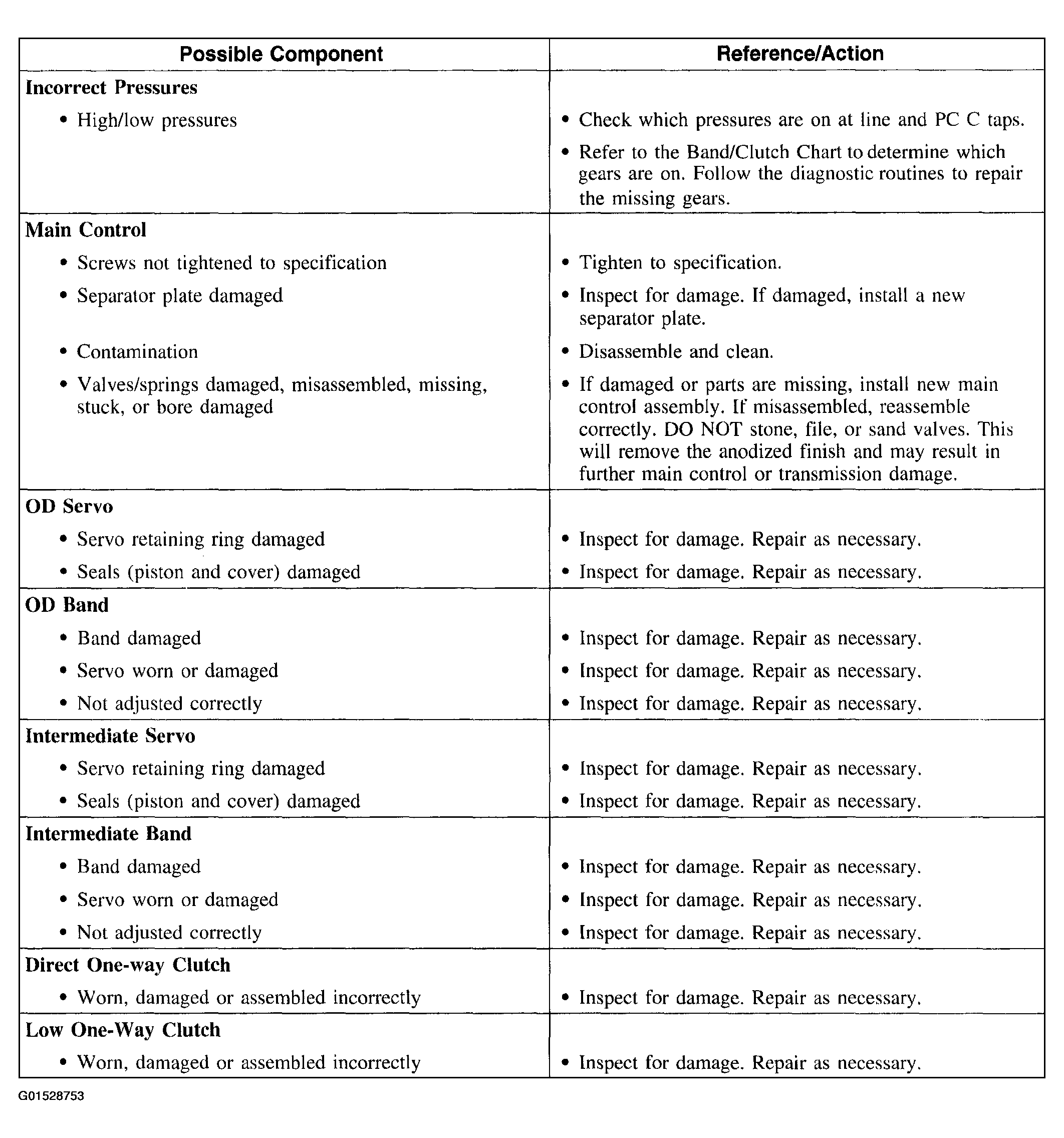

Fig 2: Shift Concern: No 1st And 2nd Gear In Drive, Engages In A Higher Gear (2 Of 2)
G01528753Courtesy of FORD MOTOR CO.
