Routine 207 - Engagement Concern: No Forward and No Reverse

Fig 1: Engagement Concern: No Forward And No Reverse (1 Of 3)
G01528734Courtesy of FORD MOTOR CO.

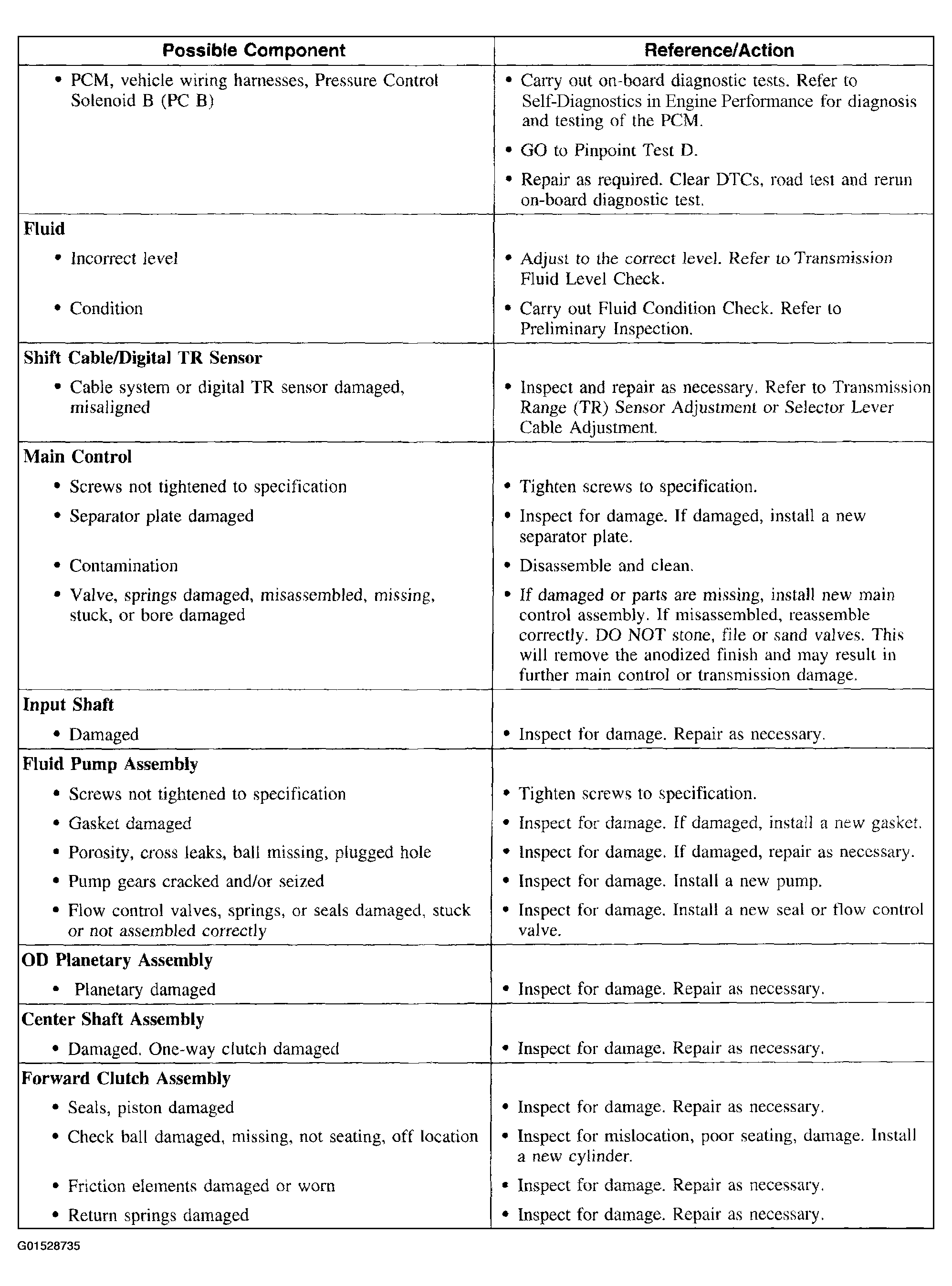

Fig 2: Engagement Concern: No Forward And No Reverse (2 Of 3)
G01528735Courtesy of FORD MOTOR CO.

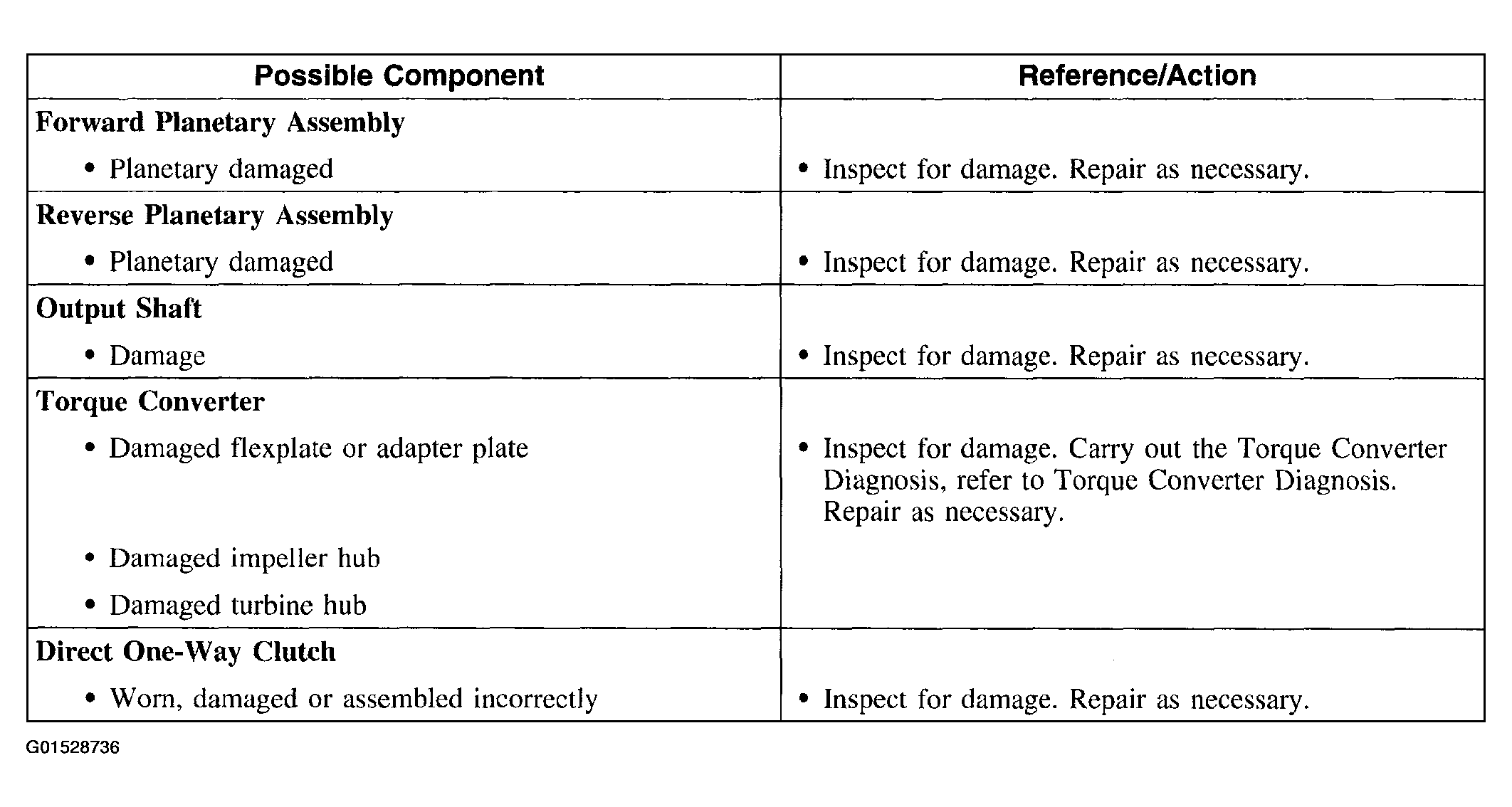

Fig 3: Engagement Concern: No Forward And No Reverse (3 Of 3)
G01528736Courtesy of FORD MOTOR CO.
