Routine 201A - Engagement Concern: No Forward in D5 or D4 Only

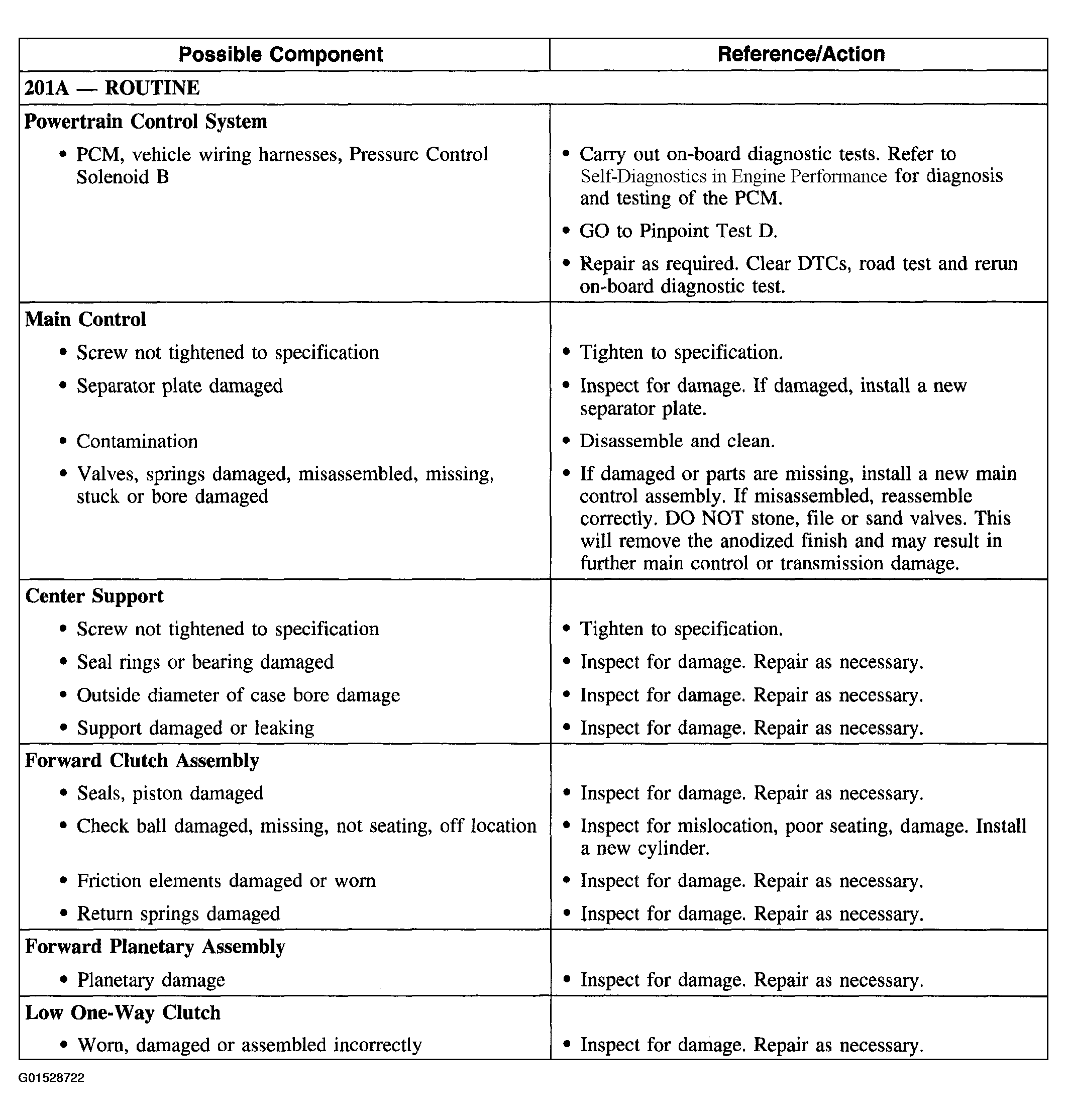

Fig 1: Engagement Concern: No Forward In D5 Or D4 Only

G01528722

Courtesy of FORD MOTOR CO.
