Removal And Installation: Horn

  1. Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
  2. Remove the components in the order indicated in the following illustration and table.

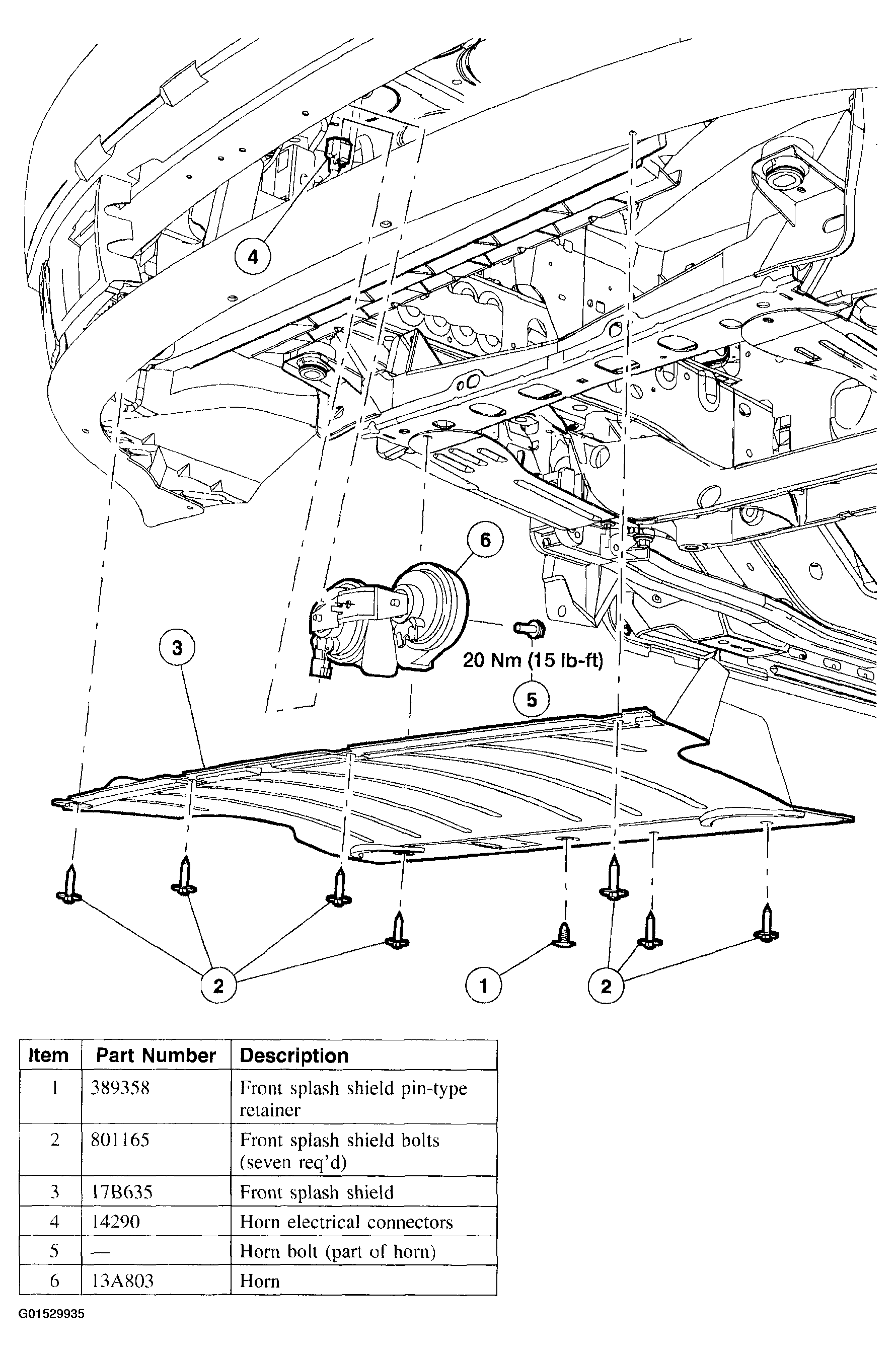

    Fig 1: Horn Components Removal Sequence
    G01529935Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
