Pinpoint Test L: The Tachometer Is Inoperative
>>
Pinpoint Test L: Tachometer Inoperative
Pinpoint Test L: Tachometer Inoperative

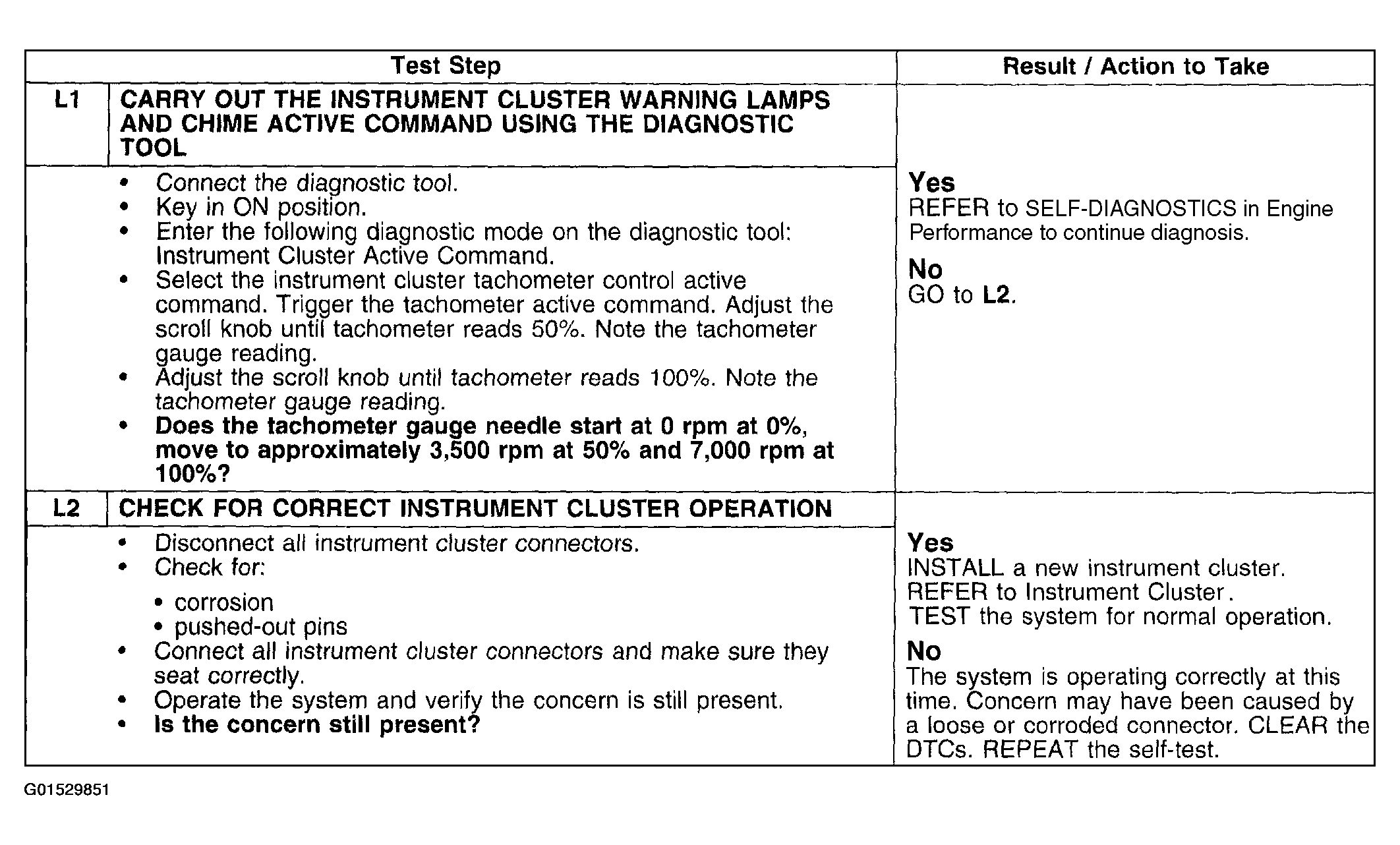

Fig 1: Pinpoint Test L: Tachometer Inoperative
Courtesy of FORD MOTOR CO.
