Pinpoint Test F: No Communication With Instrument Cluster Module

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

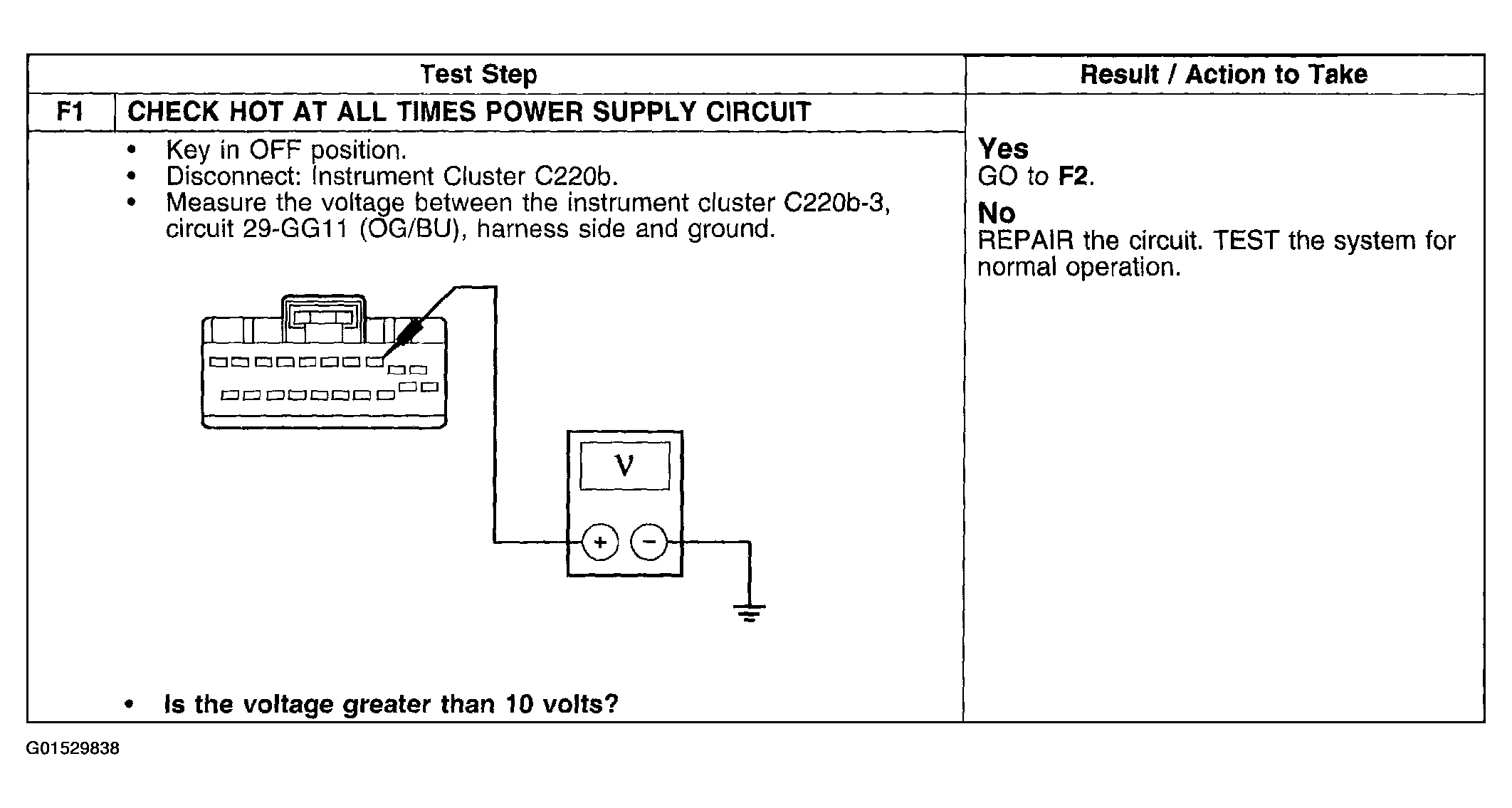

Fig 1: Pinpoint Test F: No Communication With Instrument Cluster Module (F1)
G01529838Courtesy of FORD MOTOR CO.

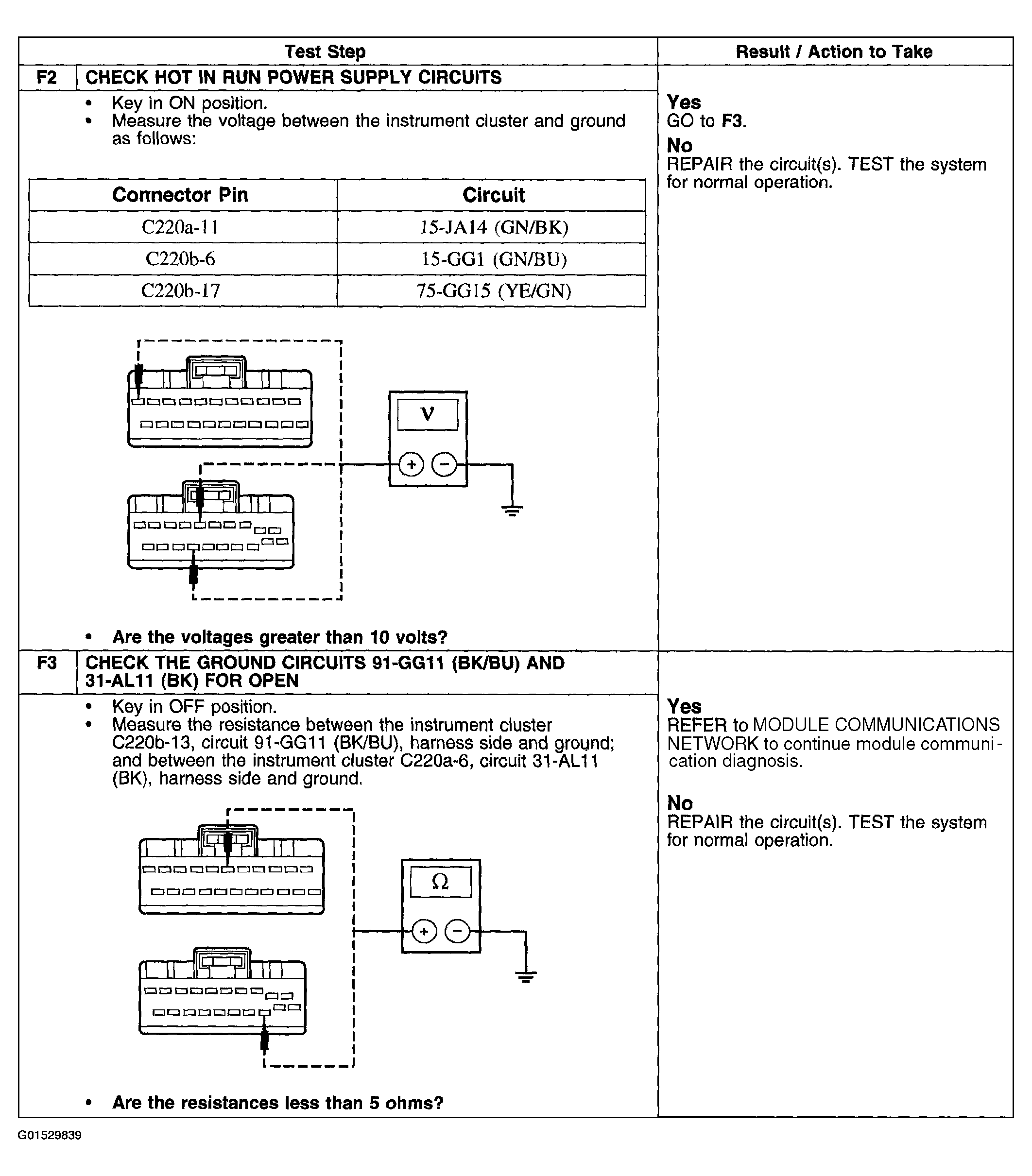

Fig 2: Pinpoint Test F: No Communication With Instrument Cluster Module (F2-F3)
G01529839Courtesy of FORD MOTOR CO.
