Pinpoint Test Ad: Instrument Cluster Inoperative

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

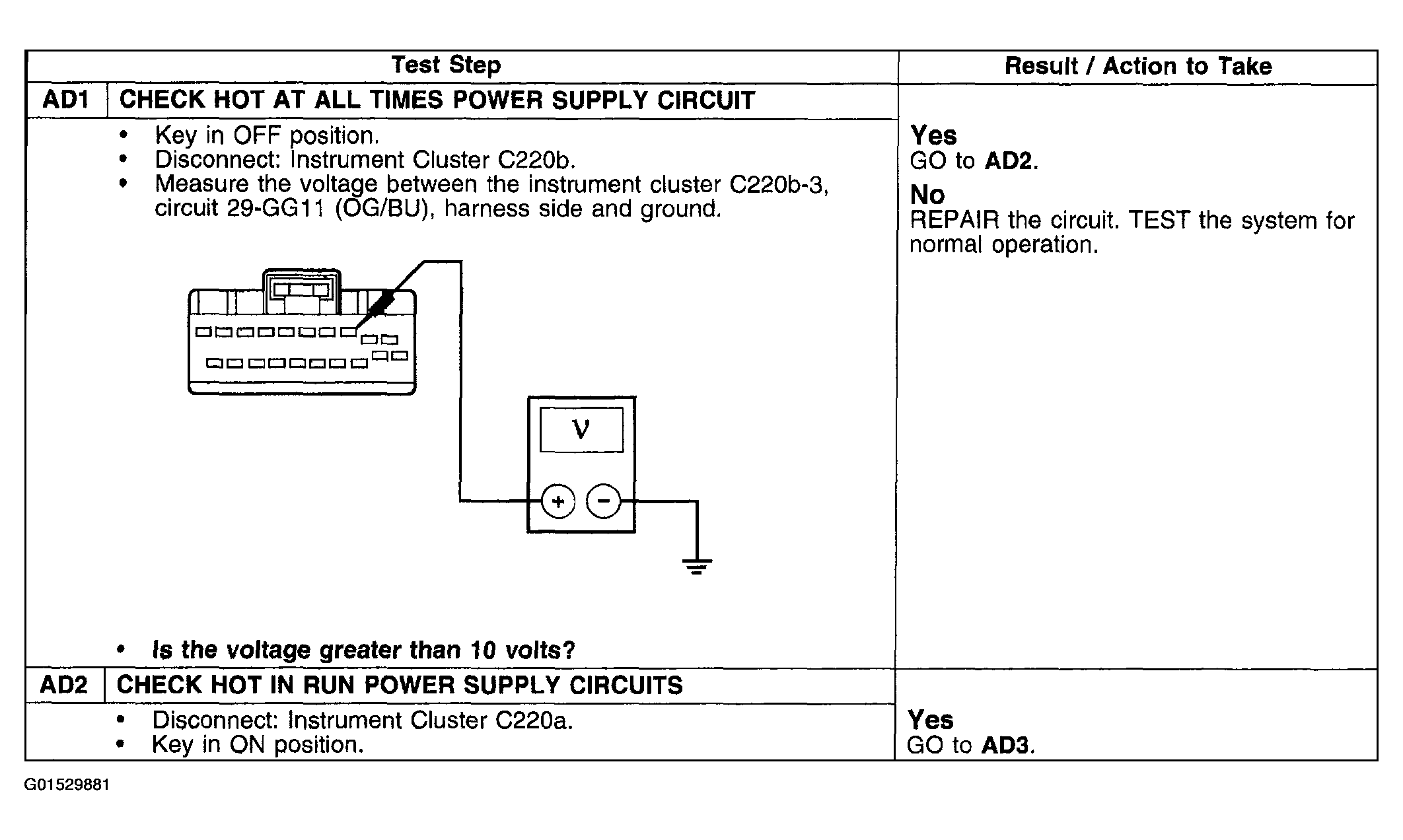

Fig 1: Pinpoint Test AD: Instrument Cluster Inoperative (AD1-AD2)
G01529881Courtesy of FORD MOTOR CO.

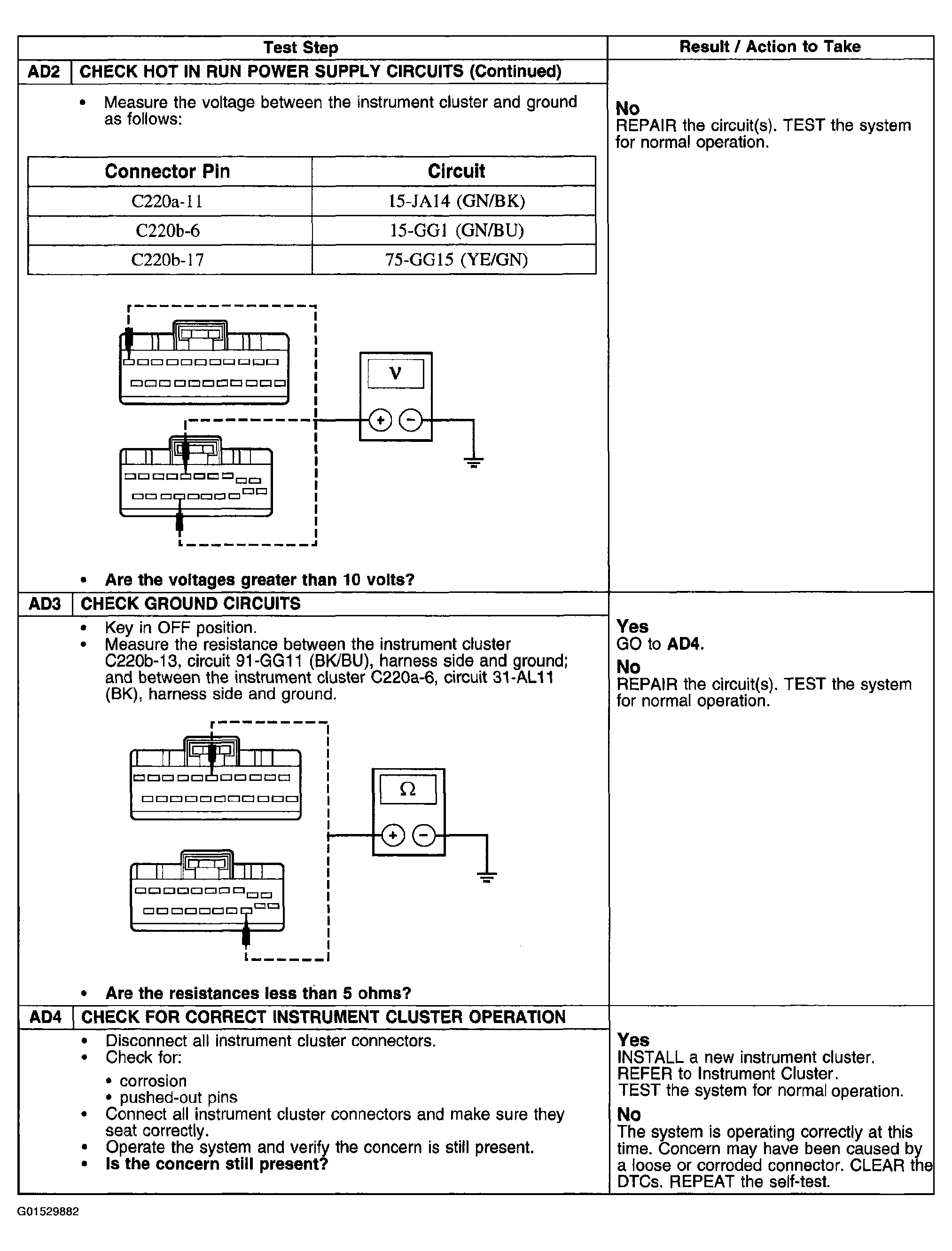

Fig 2: Pinpoint Test AD: Instrument Cluster Inoperative (AD2 Cont.-AD4)
G01529882Courtesy of FORD MOTOR CO.
