Pinpoint Test Ac: Integrated Circuit Display Inoperative

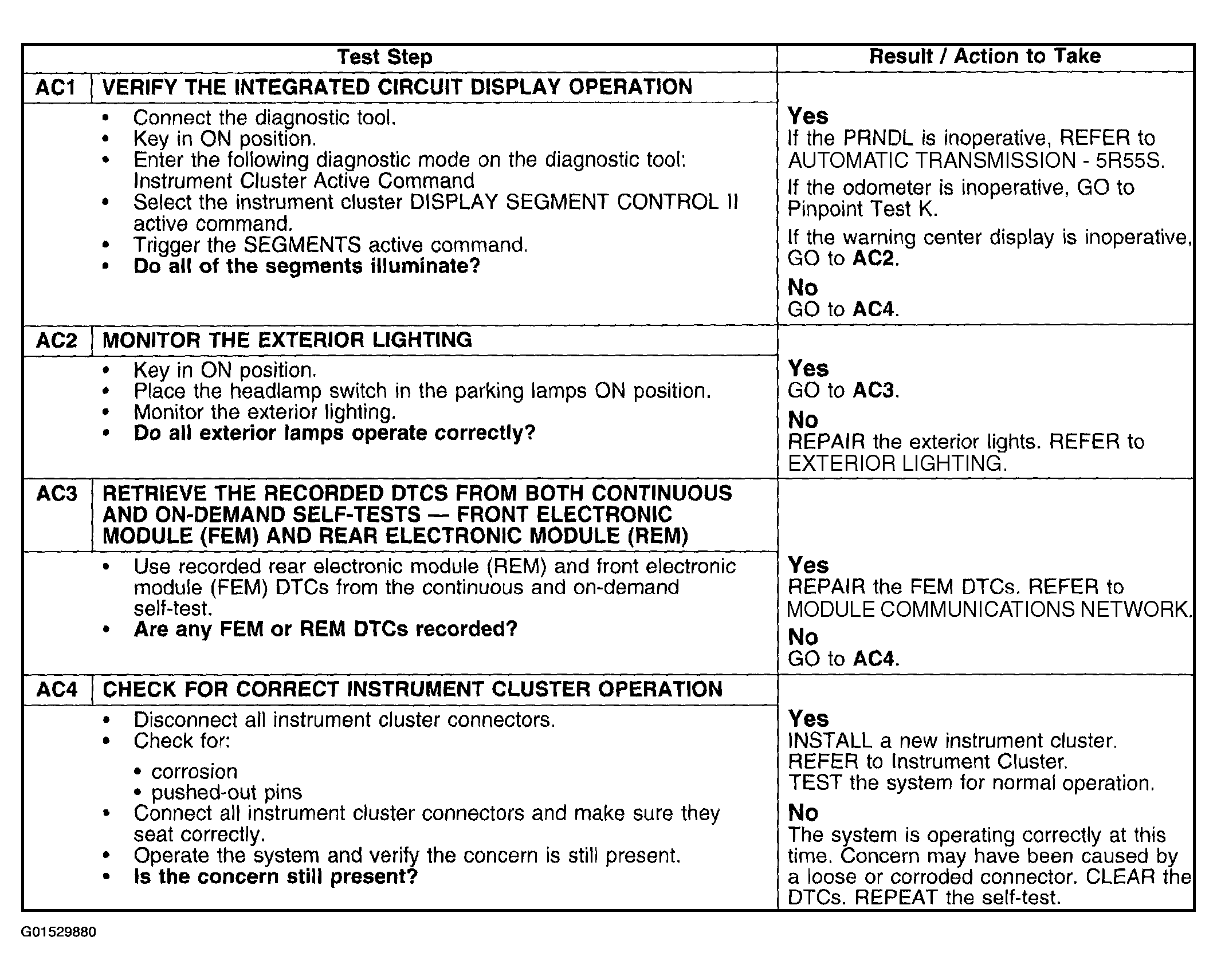

Fig 1: Pinpoint Test AC: Integrated Circuit Display Inoperative

G01529880

Courtesy of FORD MOTOR CO.
