Pinpoint Test E: Instrument Panel Illumination Does Not Dim

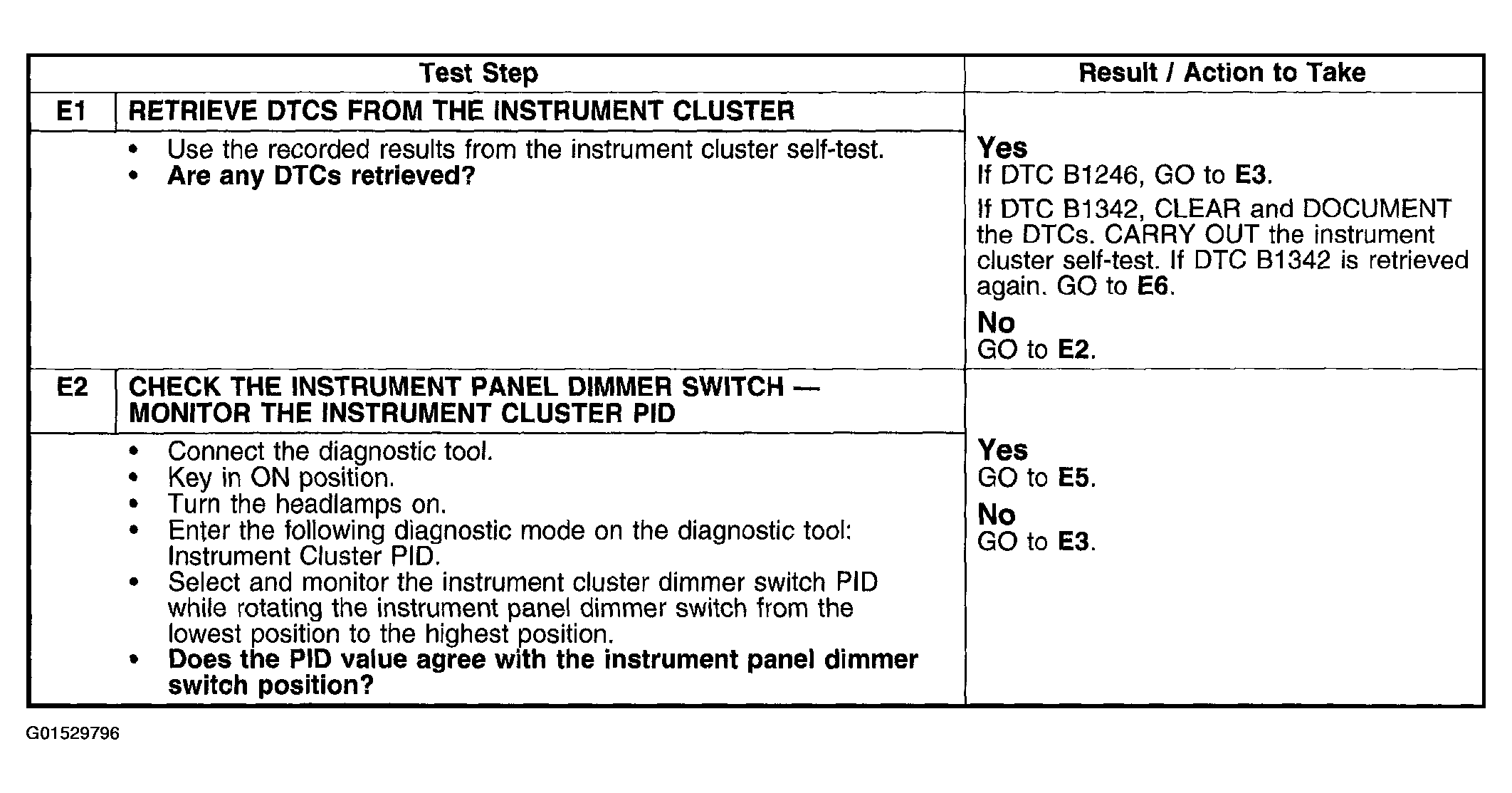

Fig 1: Pinpoint Test E: Instrument Panel Illumination Does Not Dim (E1-E2)
G01529796Courtesy of FORD MOTOR CO.

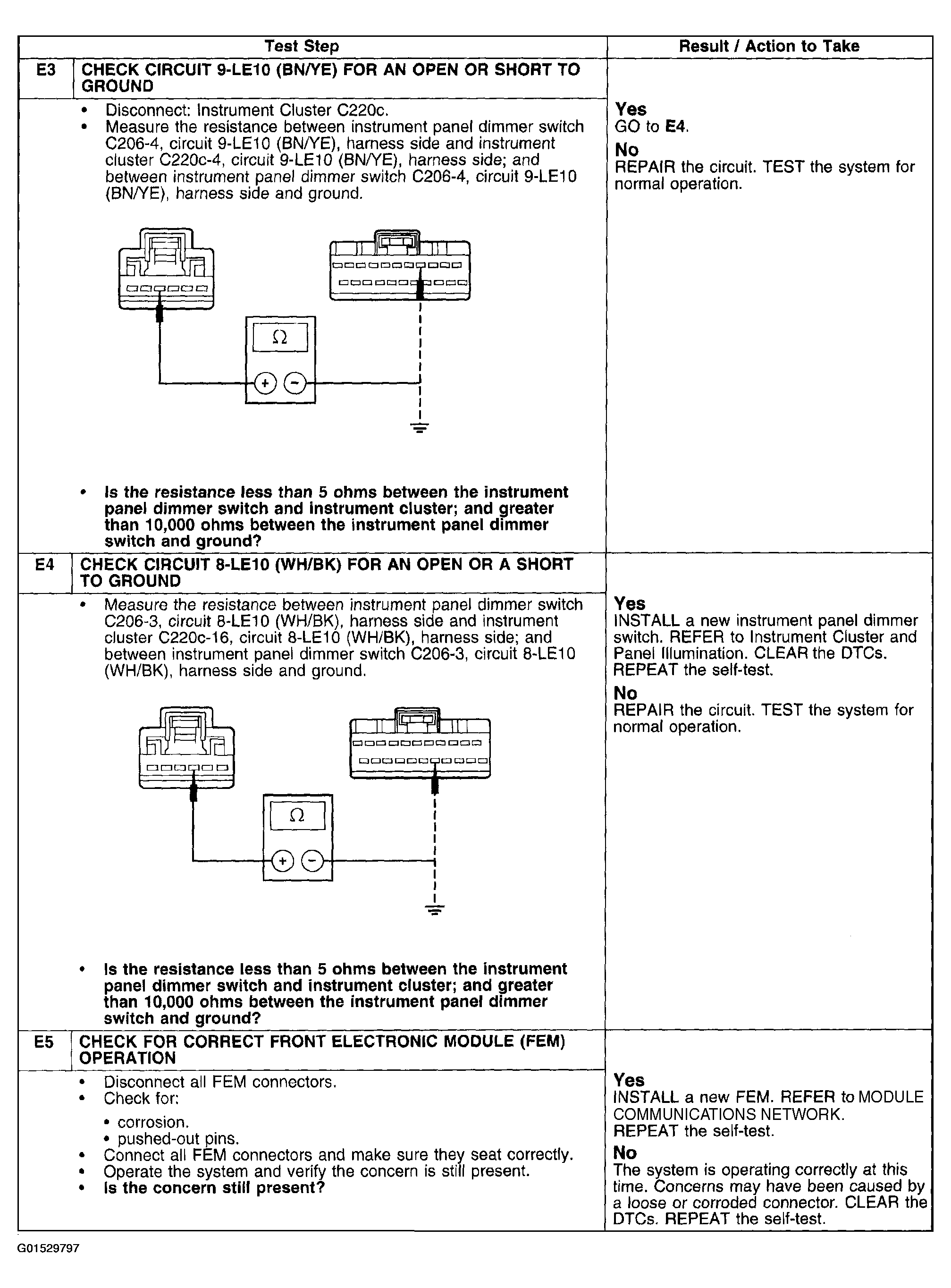

Fig 2: Pinpoint Test E: Instrument Panel Illumination Does Not Dim (E3-E5)
G01529797Courtesy of FORD MOTOR CO.

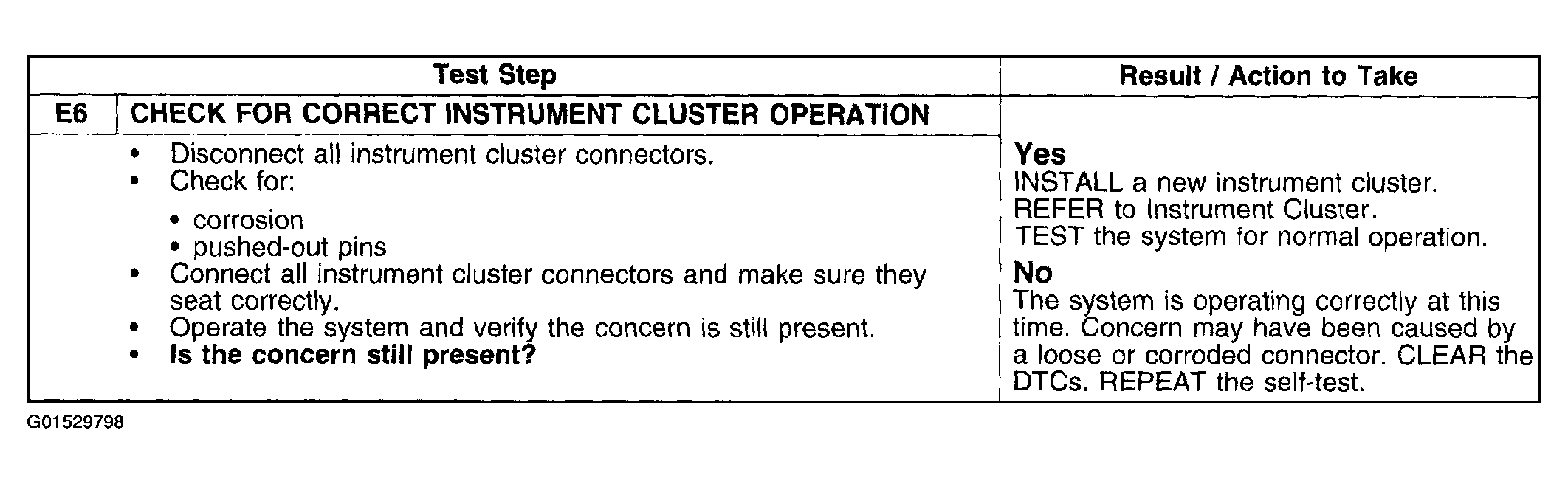

Fig 3: Pinpoint Test E: Instrument Panel Illumination Does Not Dim (E6)
G01529798Courtesy of FORD MOTOR CO.
