Pinpoint Test D: Instrument Cluster Illumination Inoperative

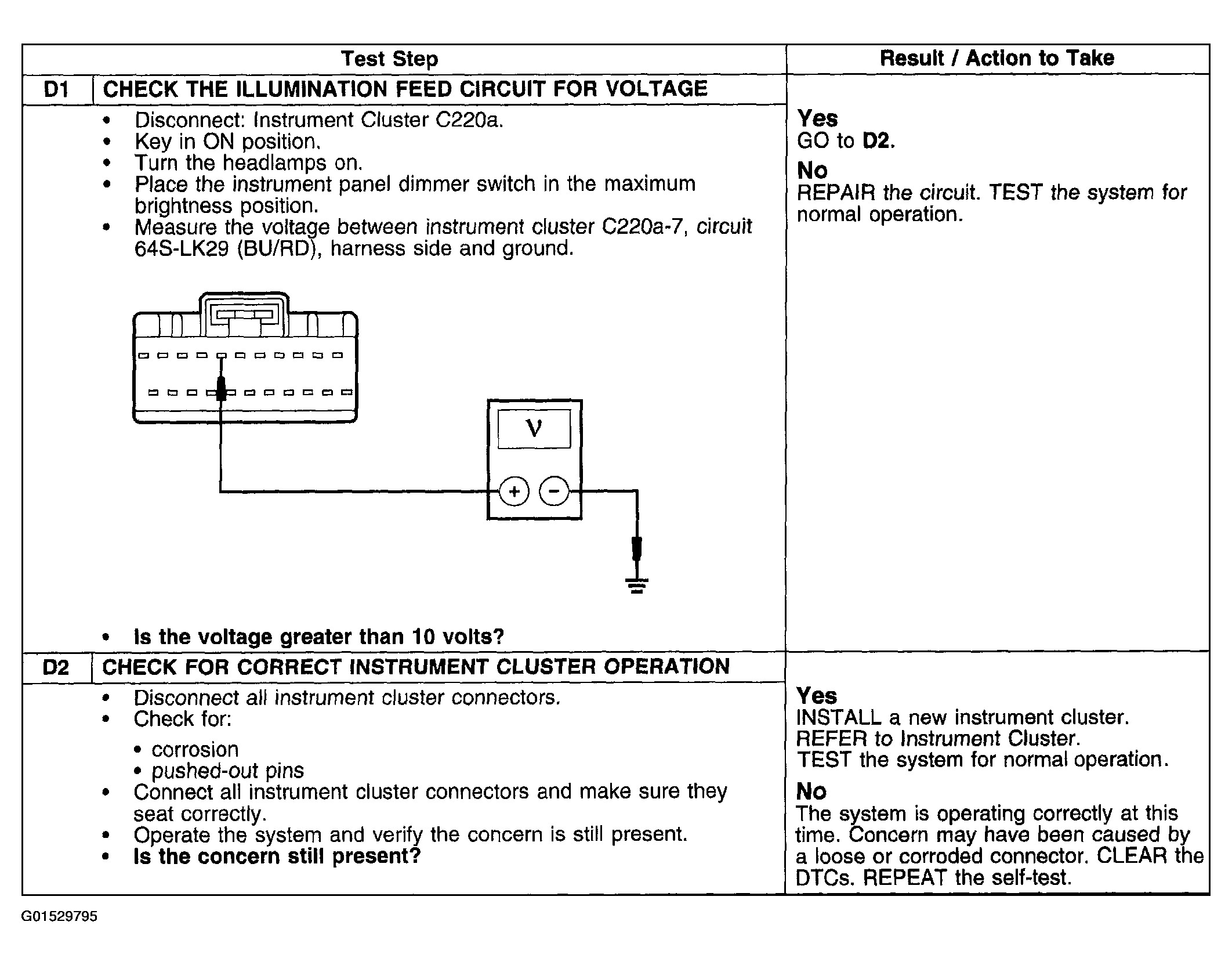

Fig 1: Pinpoint Test D: Instrument Cluster Illumination Inoperative

G01529795

Courtesy of FORD MOTOR CO.
