Traction Control (TC) Switch C280

Fig 1: Traction Control (TC) Switch C280 Connector Terminals And Specification (1 Of 2)
G01529764Courtesy of FORD MOTOR CO.

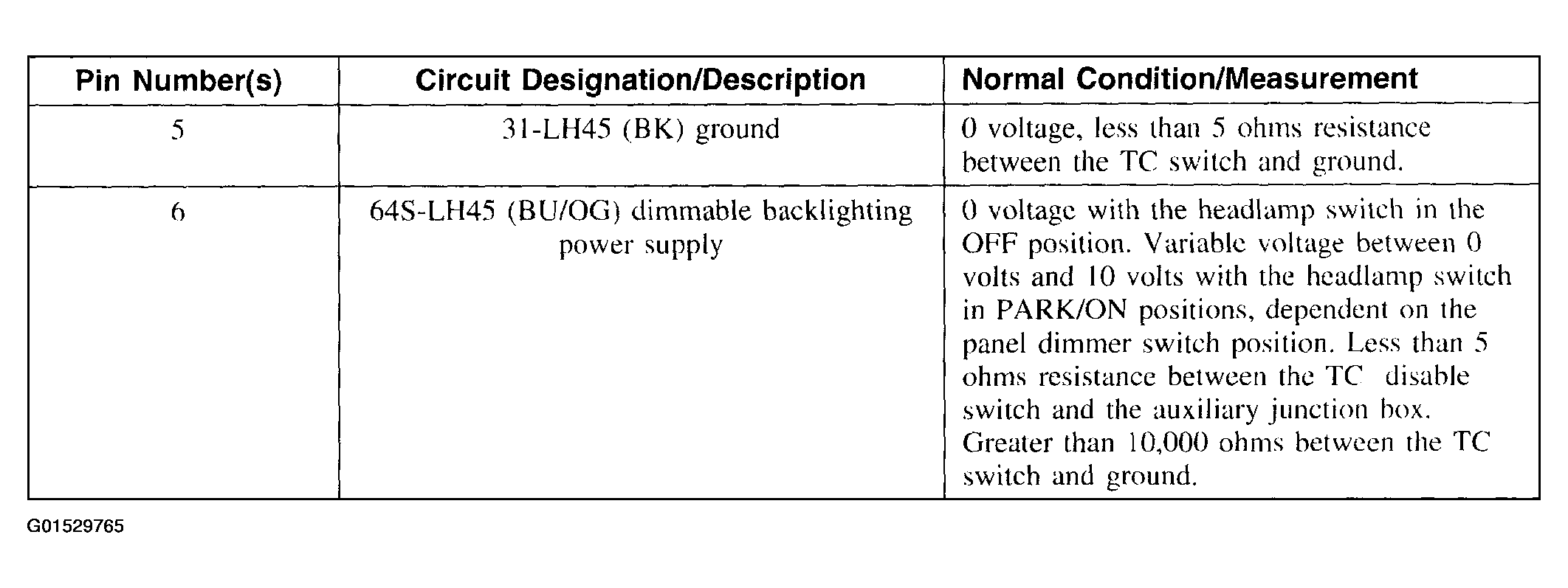

Fig 2: Traction Control (TC) Switch C280 Connector Terminals And Specification (2 Of 2)
G01529765Courtesy of FORD MOTOR CO.
