Master Window Control Switch C504

Fig 1: Master Window Control Switch C504 Connector Terminals And Specification (1 Of 2)
G01529774Courtesy of FORD MOTOR CO.

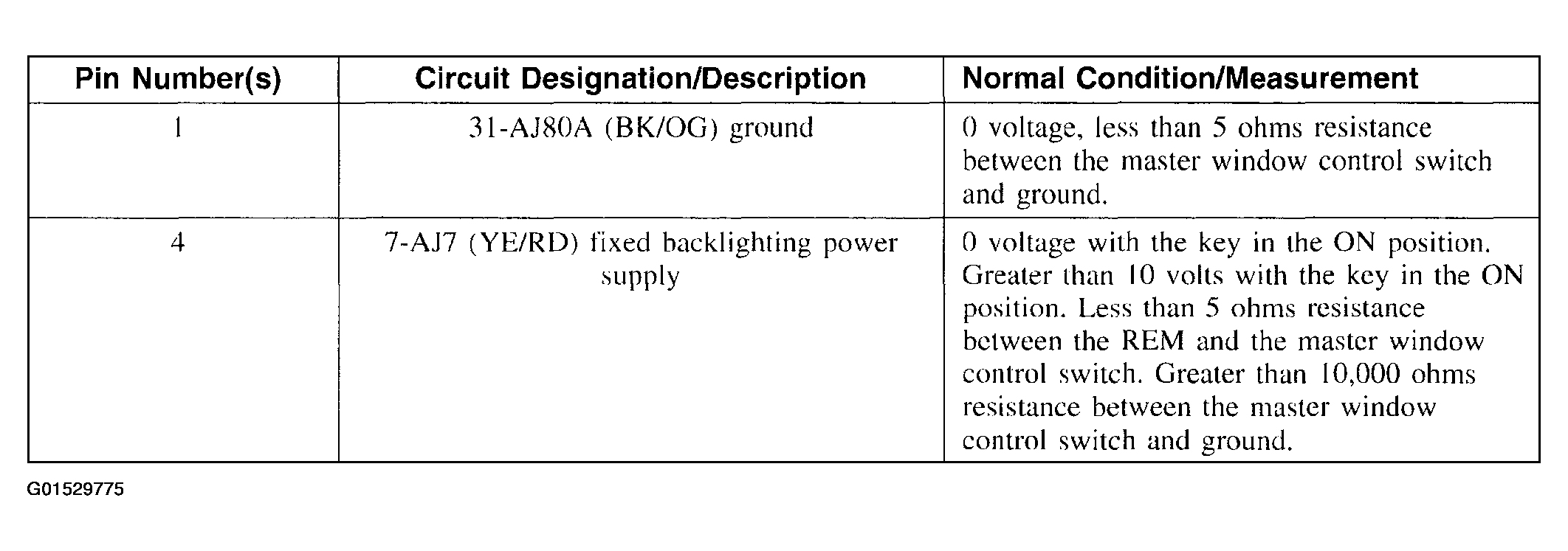

Fig 2: Master Window Control Switch C504 Connector Terminals And Specification (2 Of 2)
G01529775Courtesy of FORD MOTOR CO.
