Instrument Panel Dimmer Switch C206

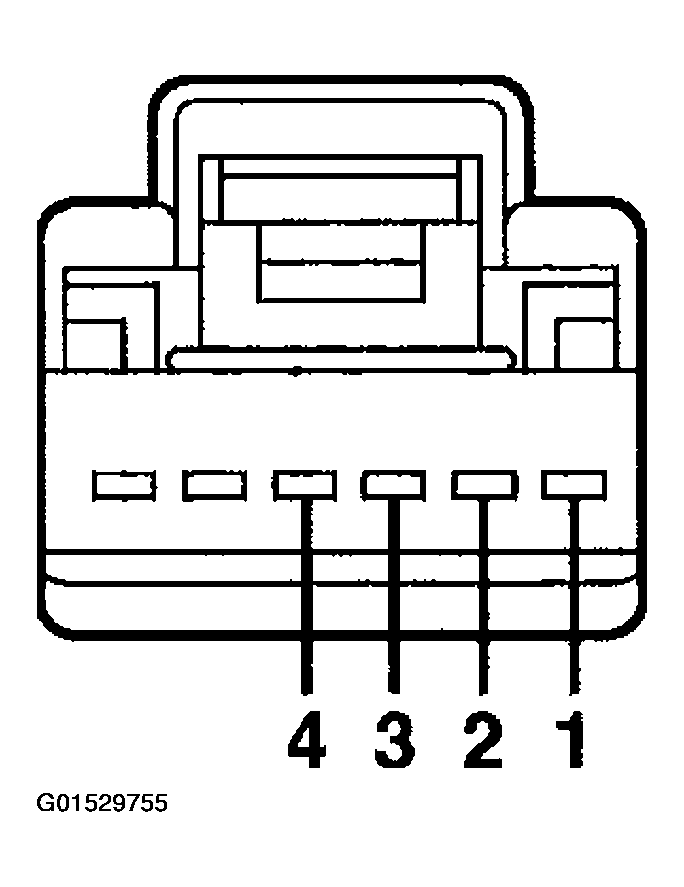

Fig 1: Instrument Panel Dimmer Switch C206 Connector Terminals And Specification (1 Of 2)
G01529755Courtesy of FORD MOTOR CO.

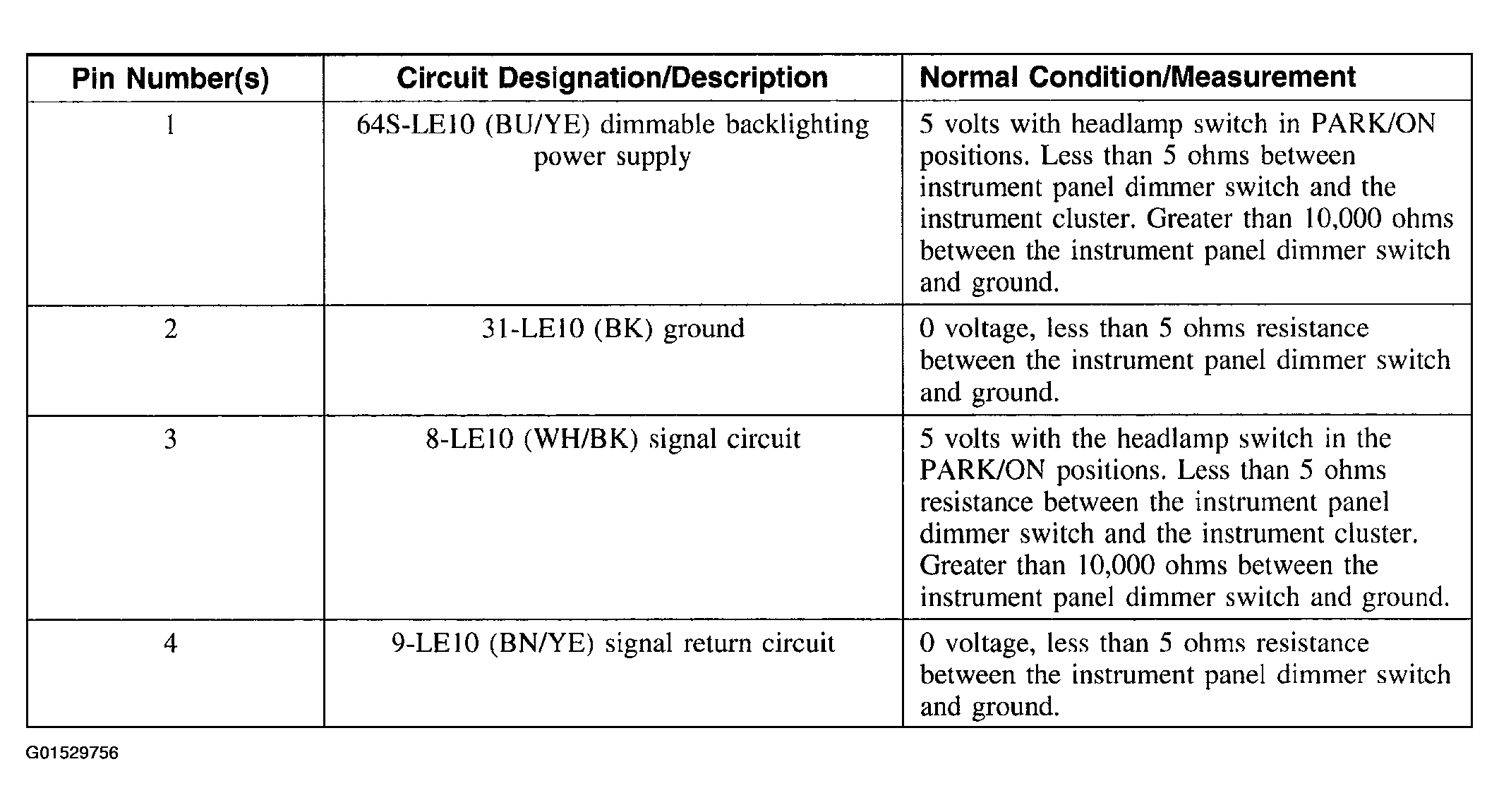

Fig 2: Instrument Panel Dimmer Switch C206 Connector Terminals And Specification (2 Of 2)
G01529756Courtesy of FORD MOTOR CO.
