Instrument Cluster C220a

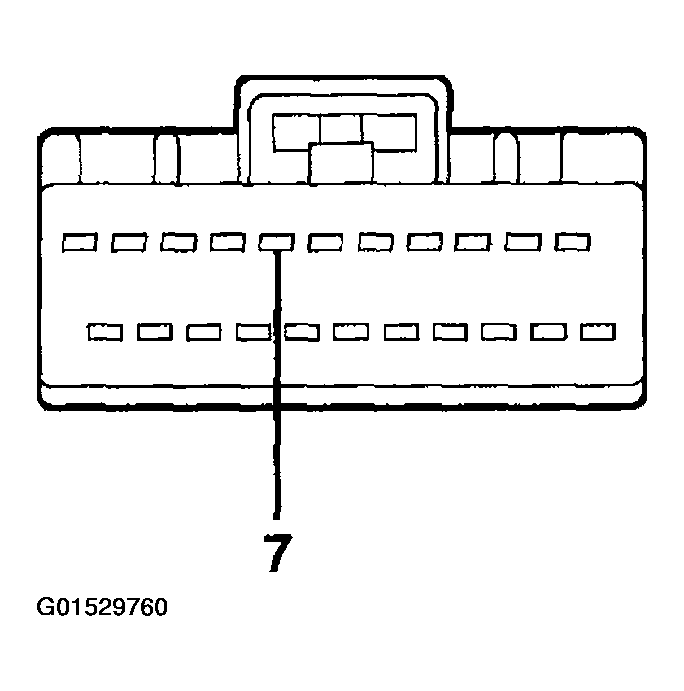

Fig 1: Instrument Cluster C220a Connector Terminals And Specification (1 Of 2)
G01529760Courtesy of FORD MOTOR CO.

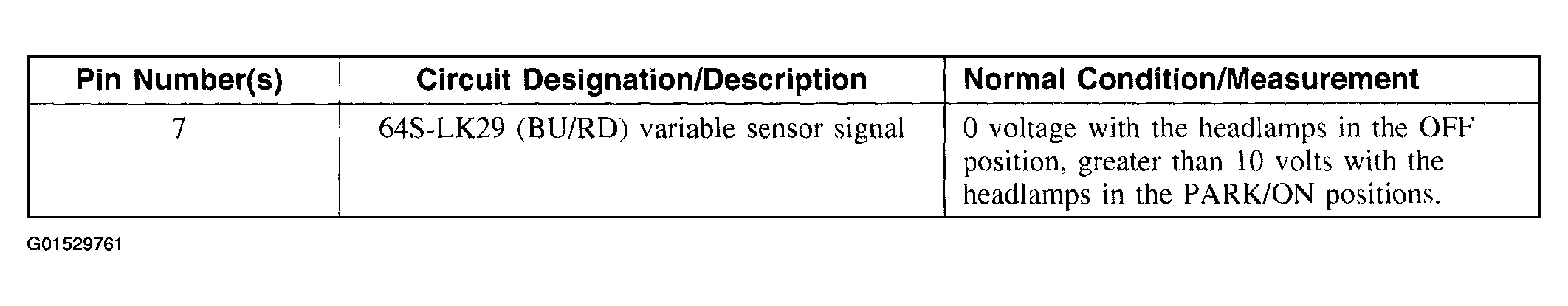

Fig 2: Instrument Cluster C220a Connector Terminals And Specification (2 Of 2)
G01529761Courtesy of FORD MOTOR CO.
