Heated Seat Switch LH C2147, RH C2148

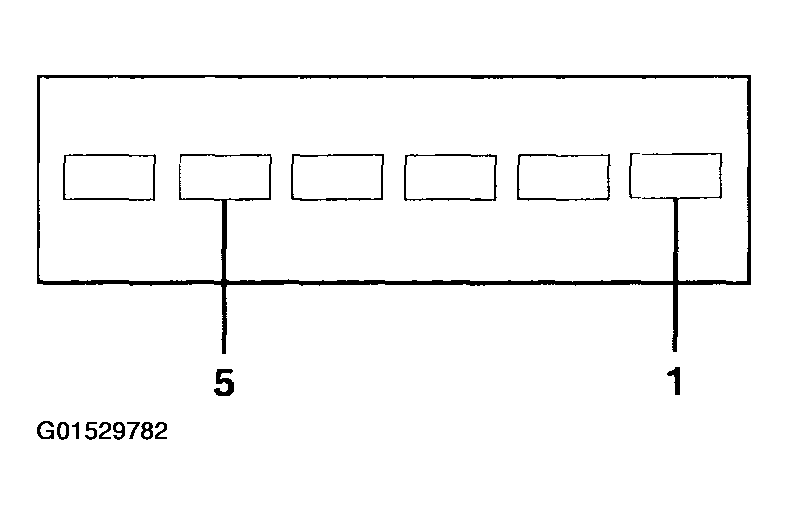

Fig 1: Heated Seat Switch LH C2147, RH C2148 Connector Terminals And Specification (1 Of 2)
G01529782Courtesy of FORD MOTOR CO.

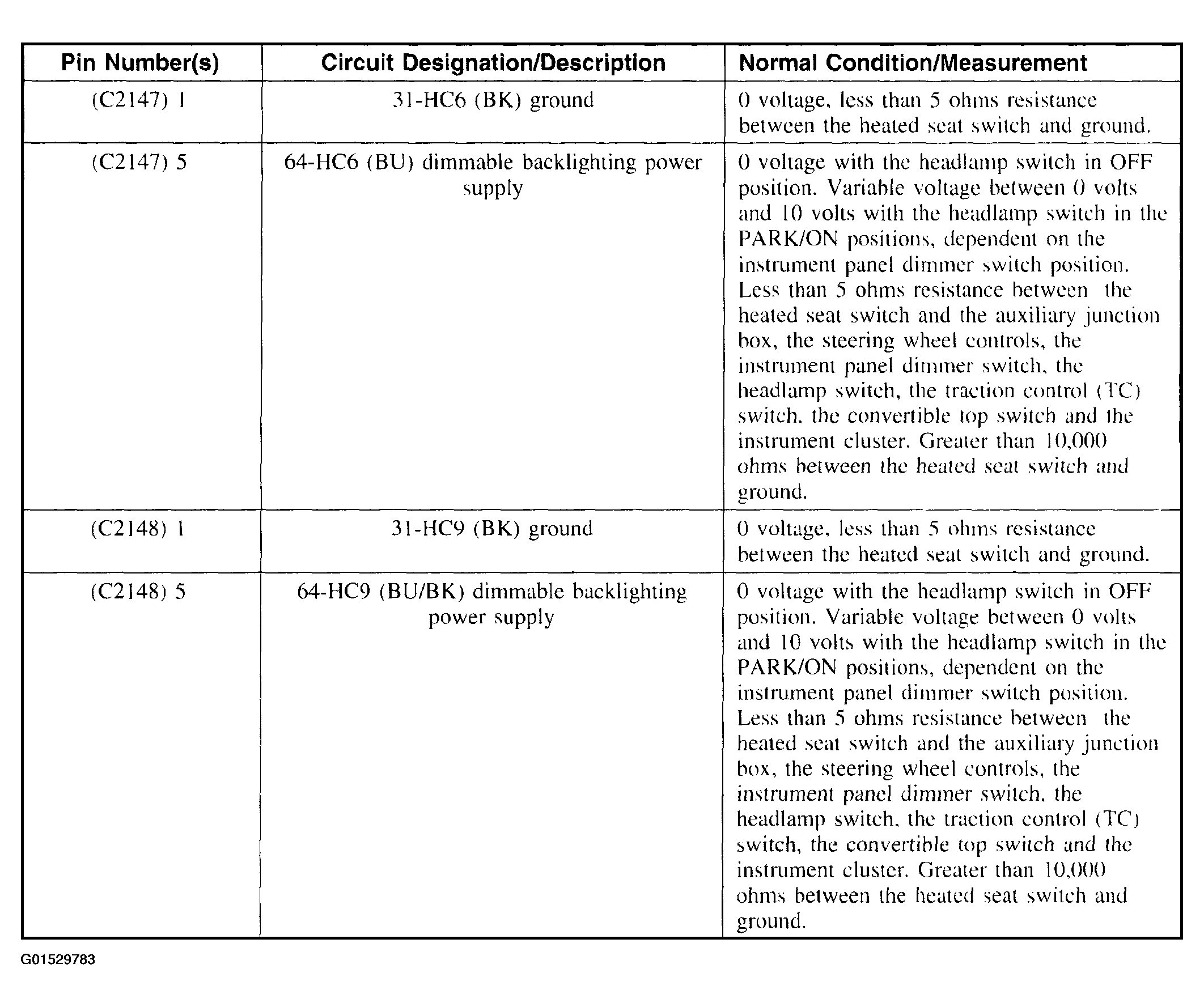

Fig 2: Heated Seat Switch LH C2147, RH C2148 Connector Terminals And Specification (2 Of 2)
G01529783Courtesy of FORD MOTOR CO.
