Headlamp Switch C205

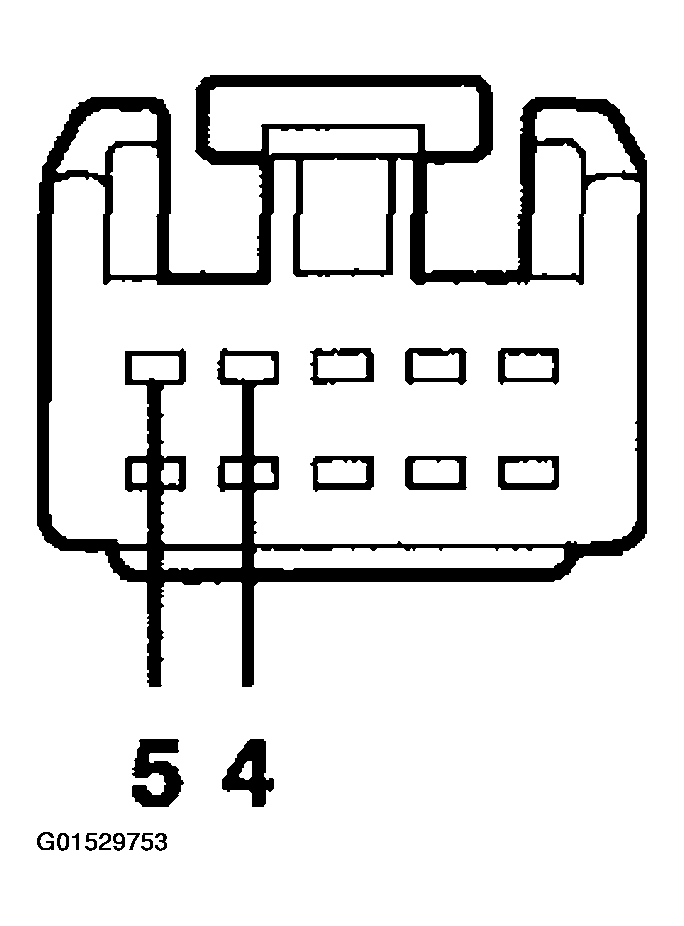

Fig 1: Headlamp Switch C205 Connector Terminals And Specification (1 Of 2)
G01529753Courtesy of FORD MOTOR CO.

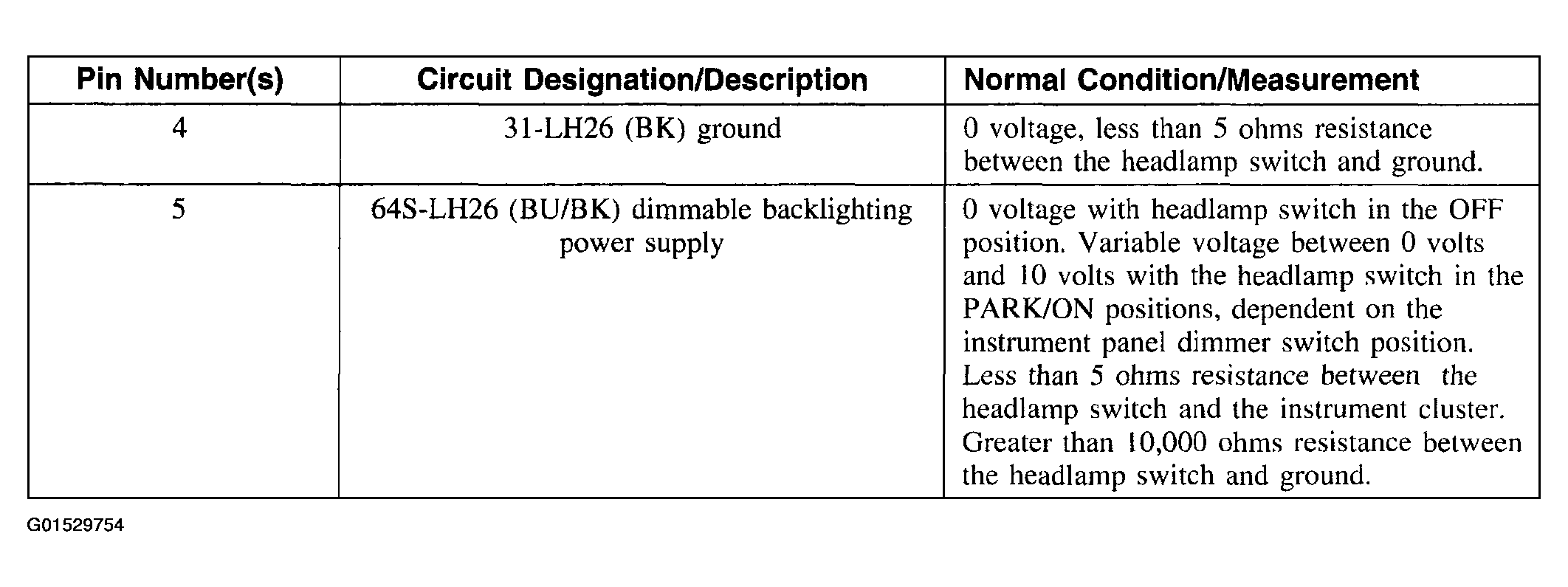

Fig 2: Headlamp Switch C205 Connector Terminals And Specification (2 Of 2)
G01529754Courtesy of FORD MOTOR CO.
