Front Electronic Module (FEM) C201e

Fig 1: Front Electronic Module (FEM) C201e Connector Terminals And Specification (1 Of 2)
G01529751Courtesy of FORD MOTOR CO.

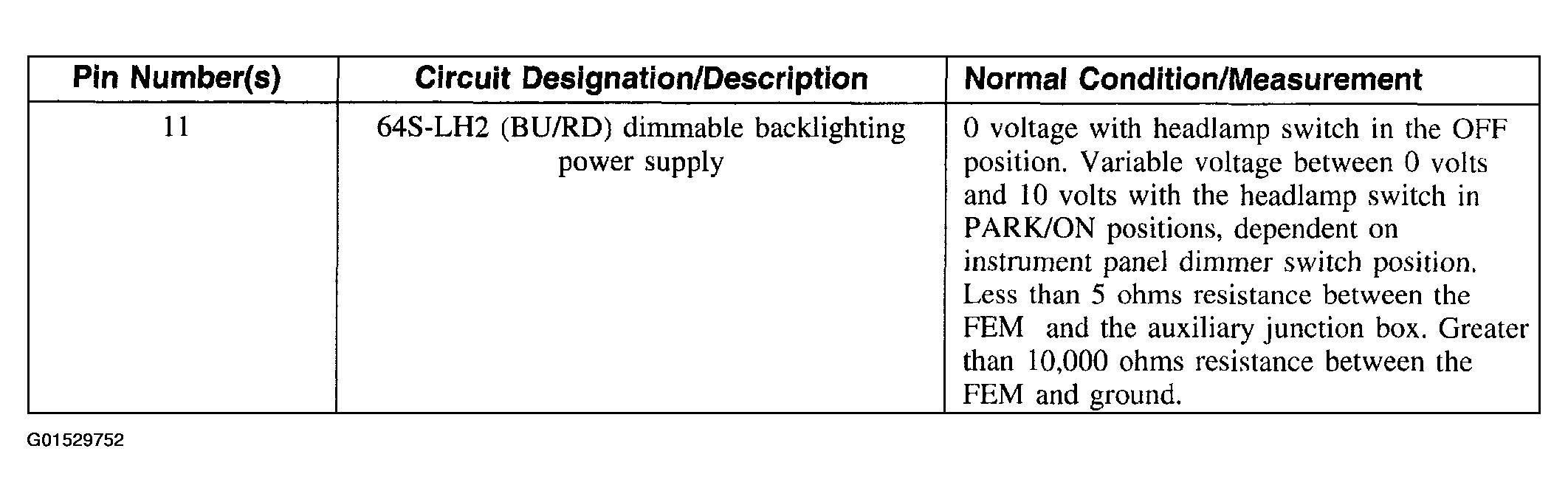

Fig 2: Front Electronic Module (FEM) C201e Connector Terminals And Specification (2 Of 2)
G01529752Courtesy of FORD MOTOR CO.
