Clockspring C218a

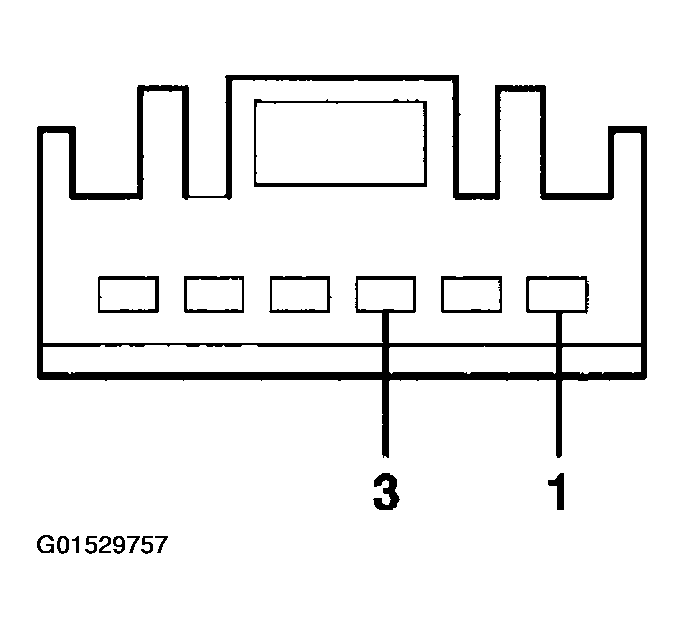

Fig 1: Clockspring C218a Connector Terminals And Specification (1 Of 3)
G01529757Courtesy of FORD MOTOR CO.

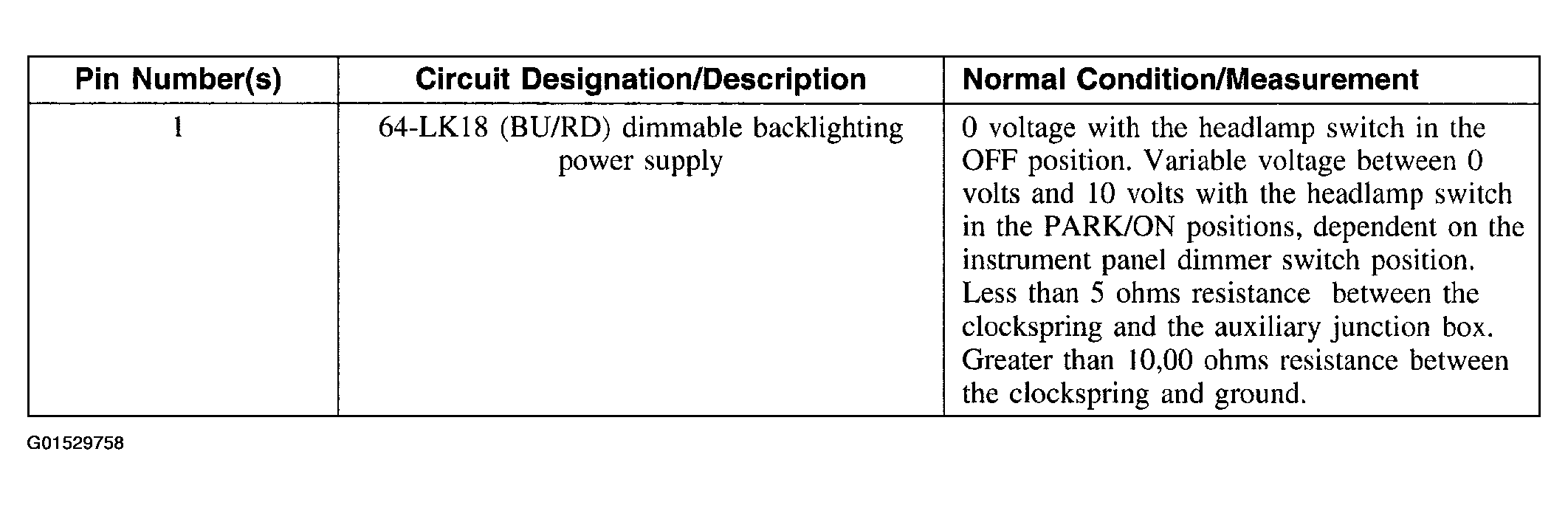

Fig 2: Clockspring C218a Connector Terminals And Specification (2 Of 3)
G01529758Courtesy of FORD MOTOR CO.

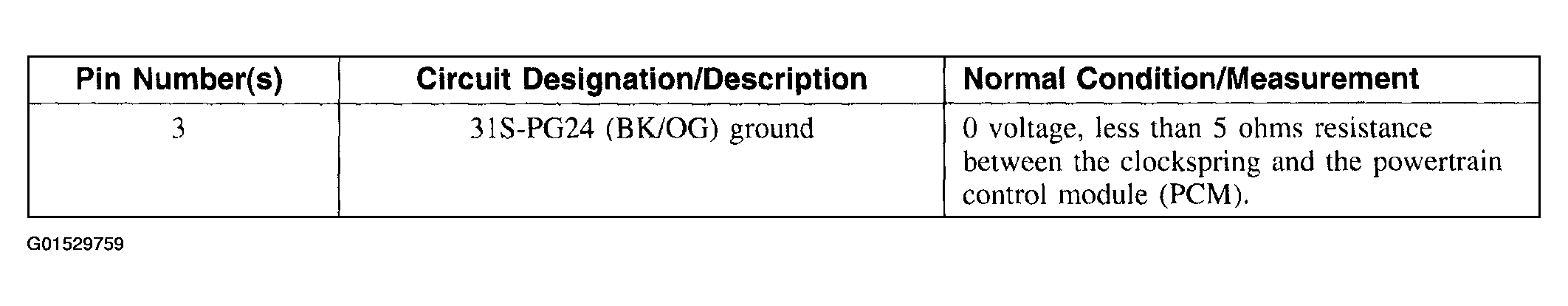

Fig 3: Clockspring C218a Connector Terminals And Specification (3 Of 3)
G01529759Courtesy of FORD MOTOR CO.
