Auxiliary Junction Box C283a

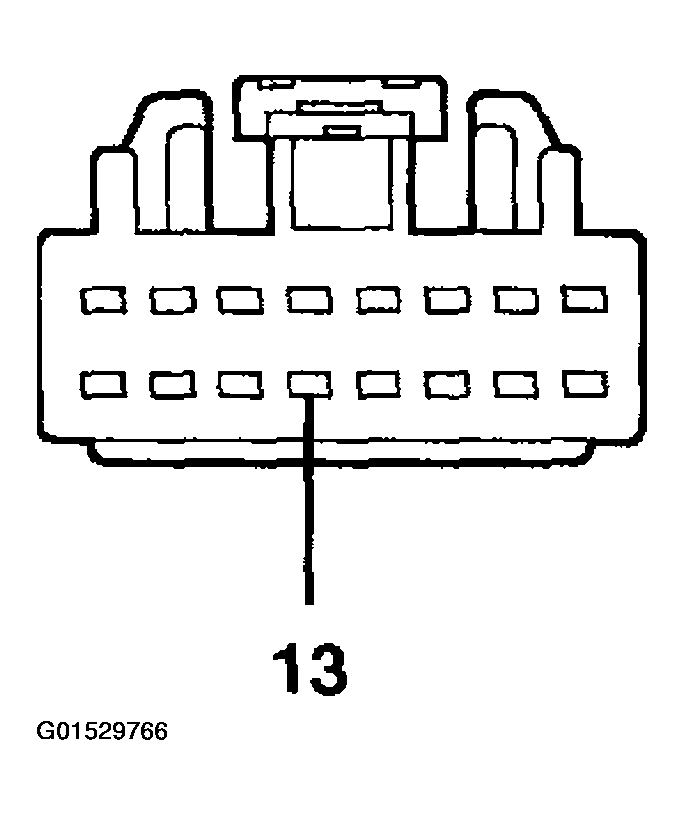

Fig 1: Auxiliary Junction Box C283a Connector Terminals And Specification (1 Of 2)
G01529766Courtesy of FORD MOTOR CO.

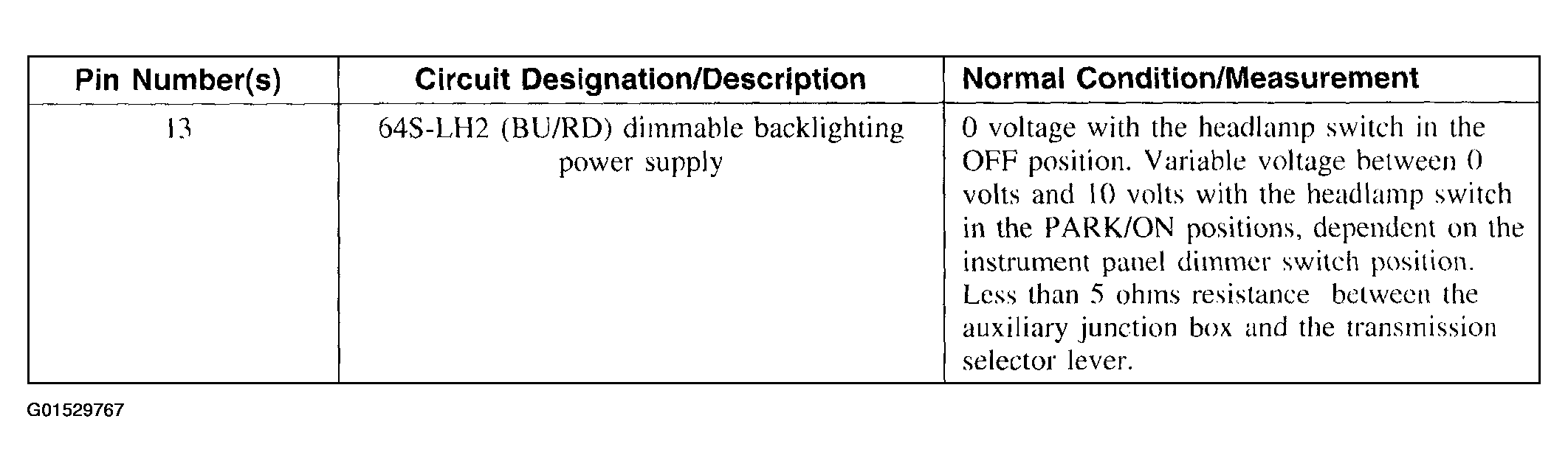

Fig 2: Auxiliary Junction Box C283a Connector Terminals And Specification (2 Of 2)
G01529767Courtesy of FORD MOTOR CO.
