Symptom Chart

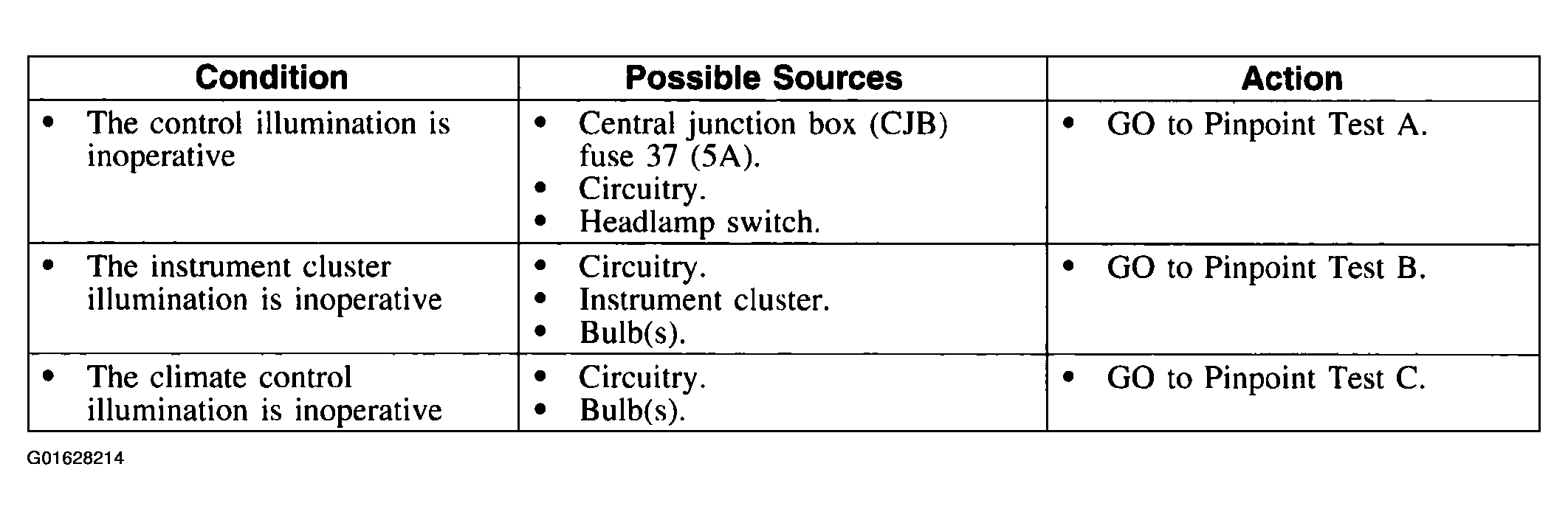

Fig 1: Instrument Cluster And Panel Illumination Symptom Chart (1 Of 2)
G01628214Courtesy of FORD MOTOR CO.

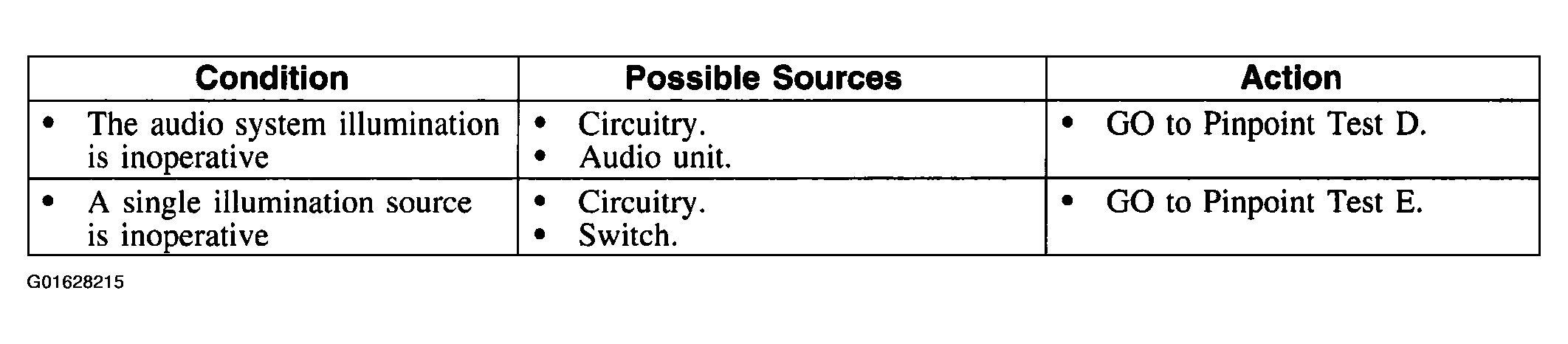

Fig 2: Instrument Cluster And Panel Illumination Symptom Chart (2 Of 2)
G01628215Courtesy of FORD MOTOR CO.
