Pinpoint Test E: Single Illumination Source Is Inoperative
Pinpoint Test E: Single Illumination Source Is Inoperative

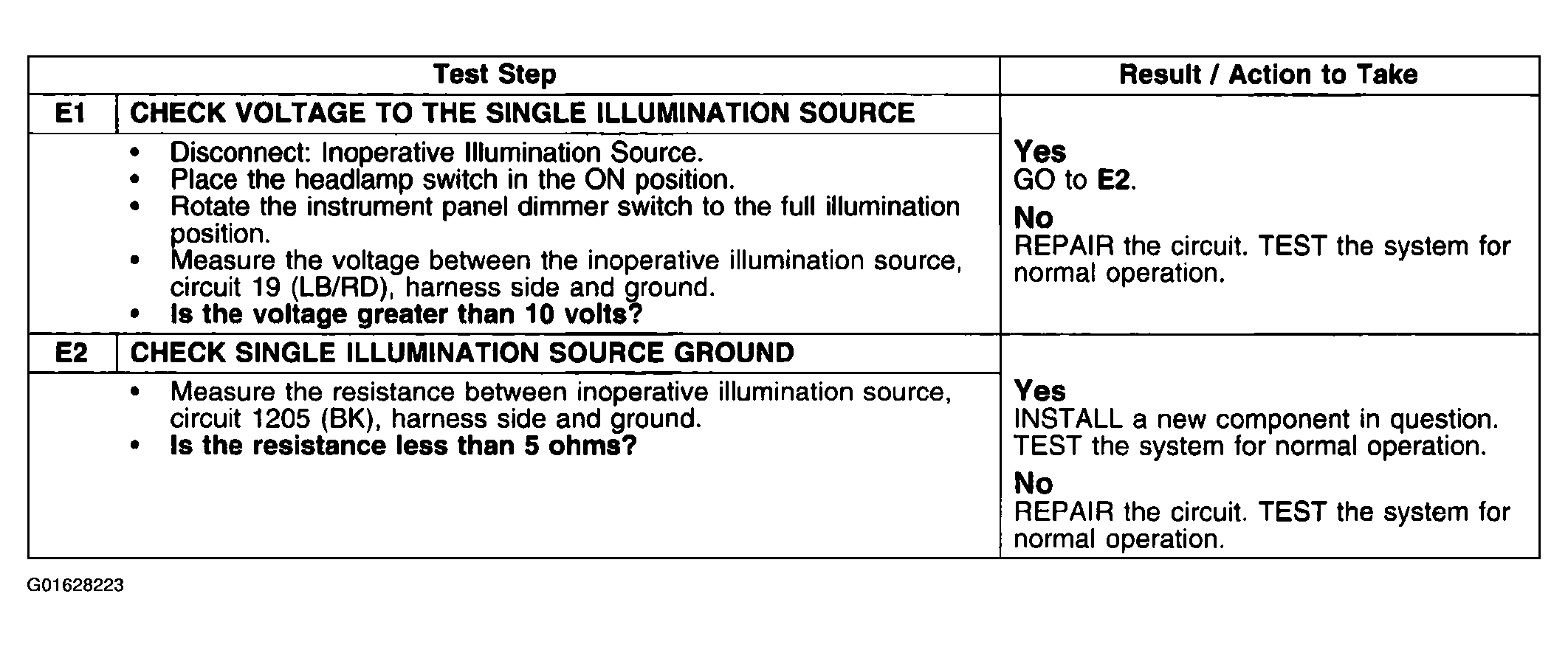

Fig 1: Pinpoint Test E: Single Illumination Source Is Inoperative
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
