Pinpoint Test D: Audio System Illumination Is Inoperative

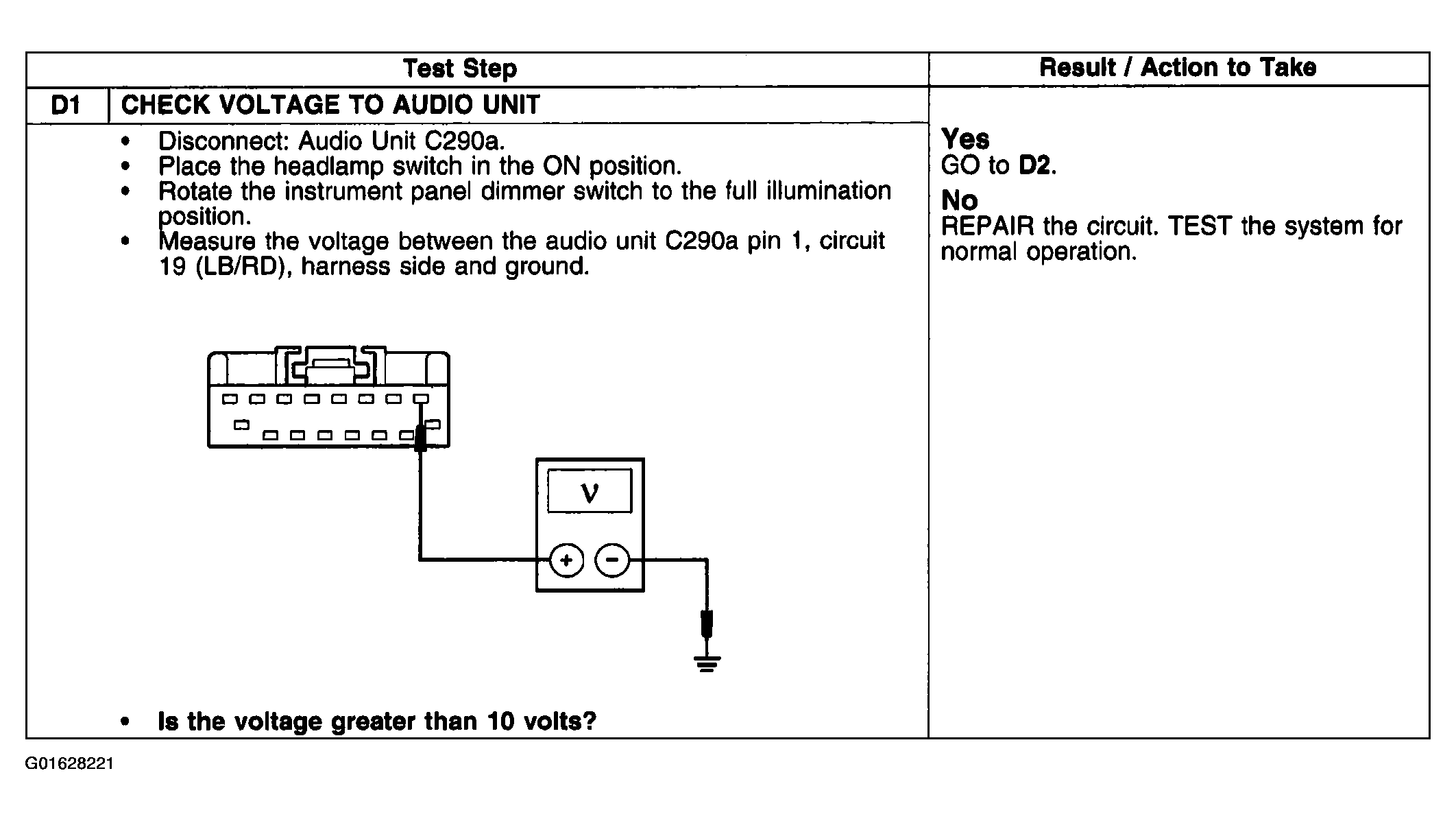

Fig 1: Pinpoint Test D: Audio System Illumination Is Inoperative (D1)
G01628221Courtesy of FORD MOTOR CO.

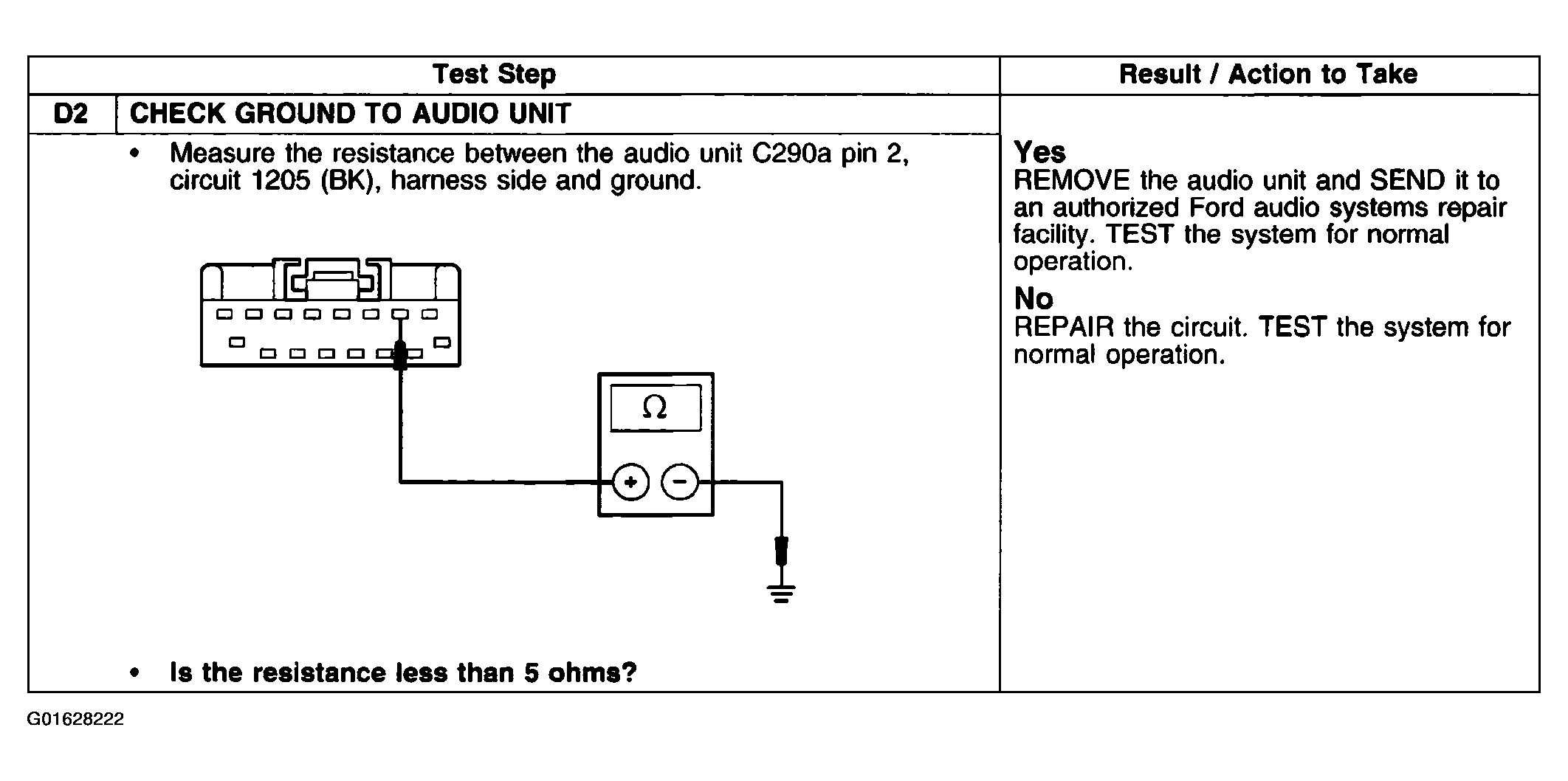

Fig 2: Pinpoint Test D: Audio System Illumination Is Inoperative (D2)
G01628222Courtesy of FORD MOTOR CO.
