Pinpoint Test C: Climate Control Illumination Is Inoperative

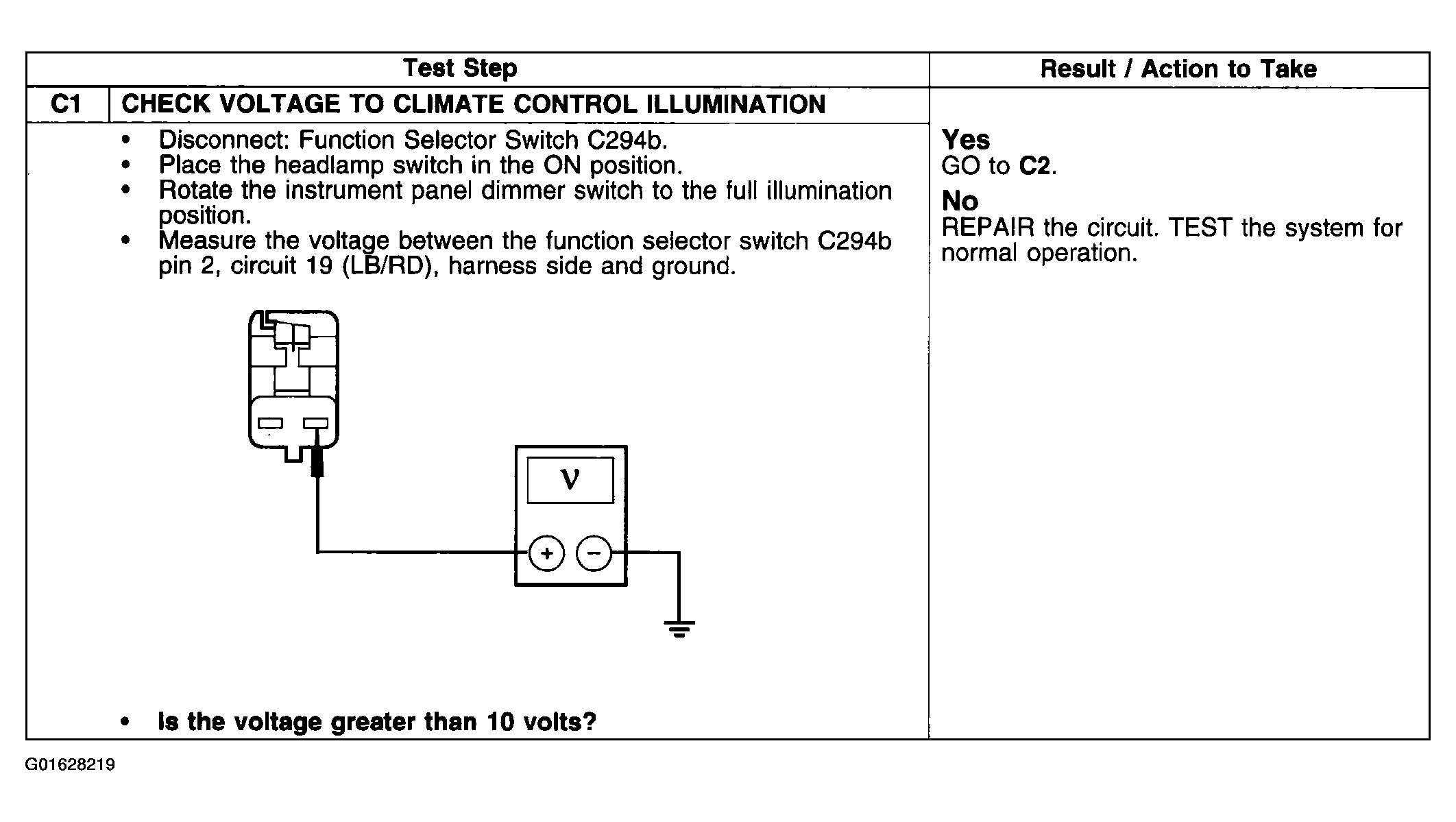

Fig 1: Pinpoint Test C: Climate Control Illumination Is Inoperative (C1)
G01628219Courtesy of FORD MOTOR CO.

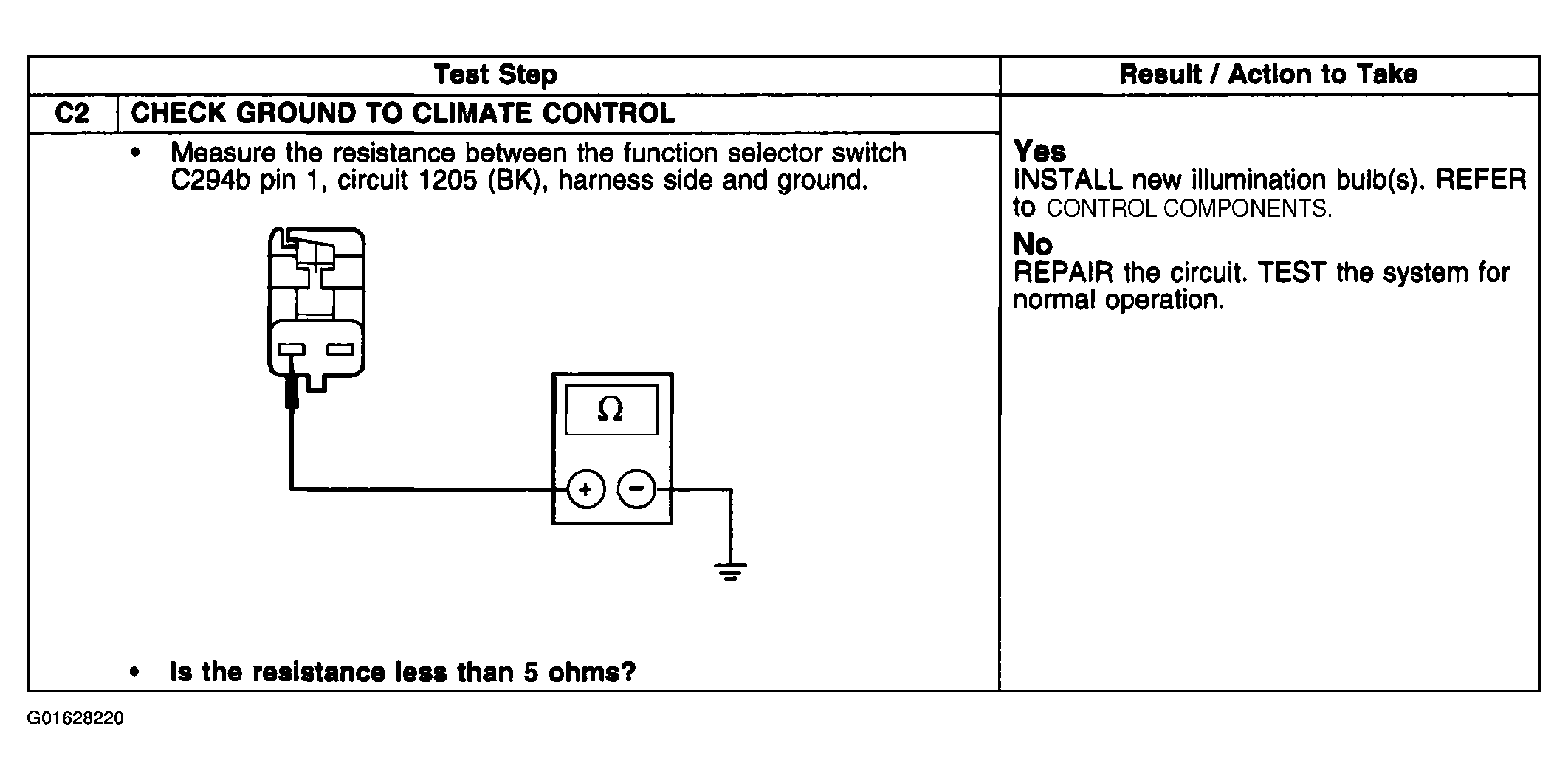

Fig 2: Pinpoint Test C: Climate Control Illumination Is Inoperative (C2)
G01628220Courtesy of FORD MOTOR CO.
