Pinpoint Test A: Control Illumination Is Inoperative
Pinpoint Test A: Control Illumination Is Inoperative

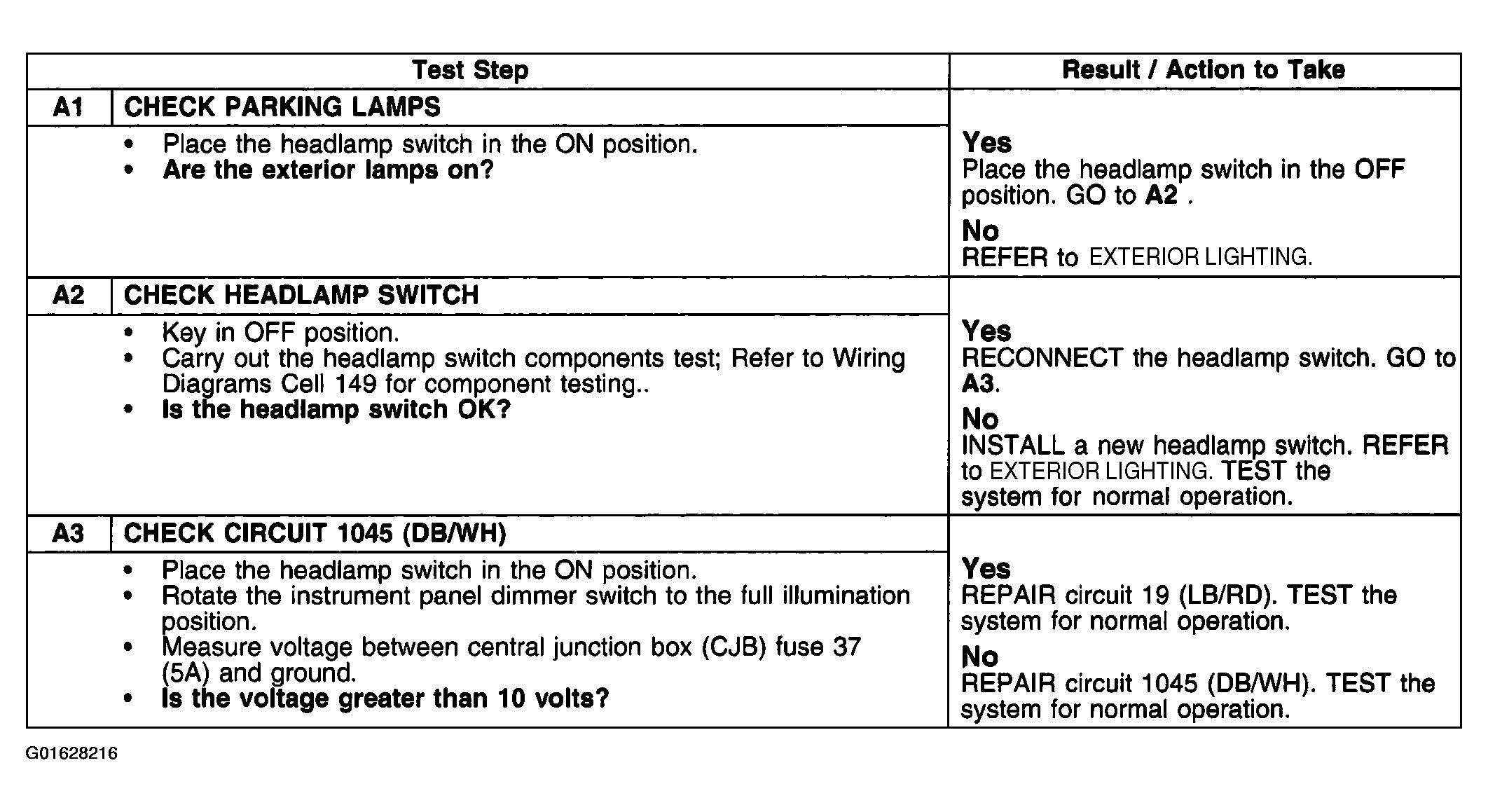

Fig 1: Pinpoint Test A: Control Illumination Is Inoperative
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
