Pinpoint Test B: Instrument Cluster Illumination Is Inoperative

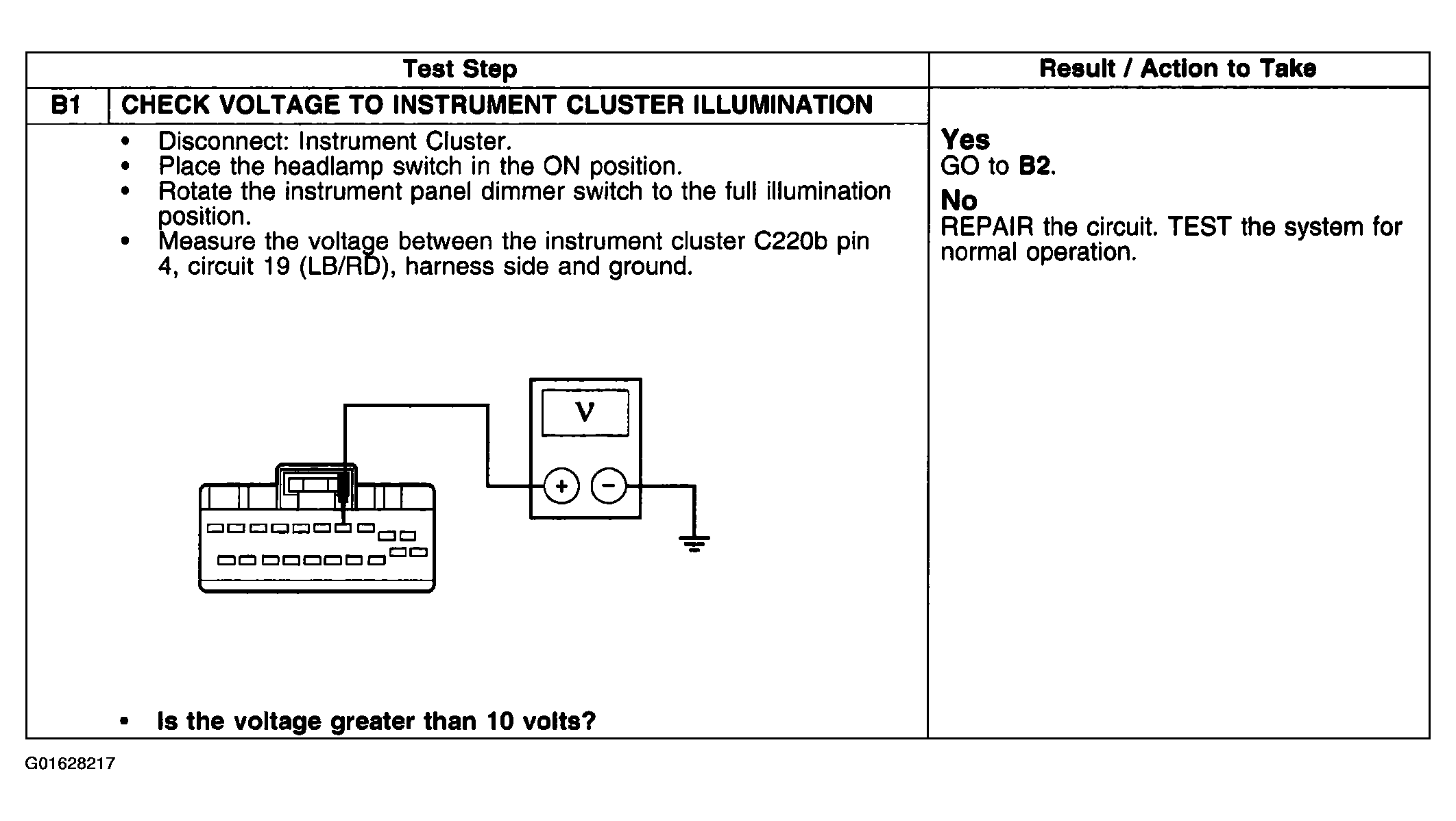

Fig 1: Pinpoint Test B: Instrument Cluster Illumination Is Inoperative (B1)
G01628217Courtesy of FORD MOTOR CO.

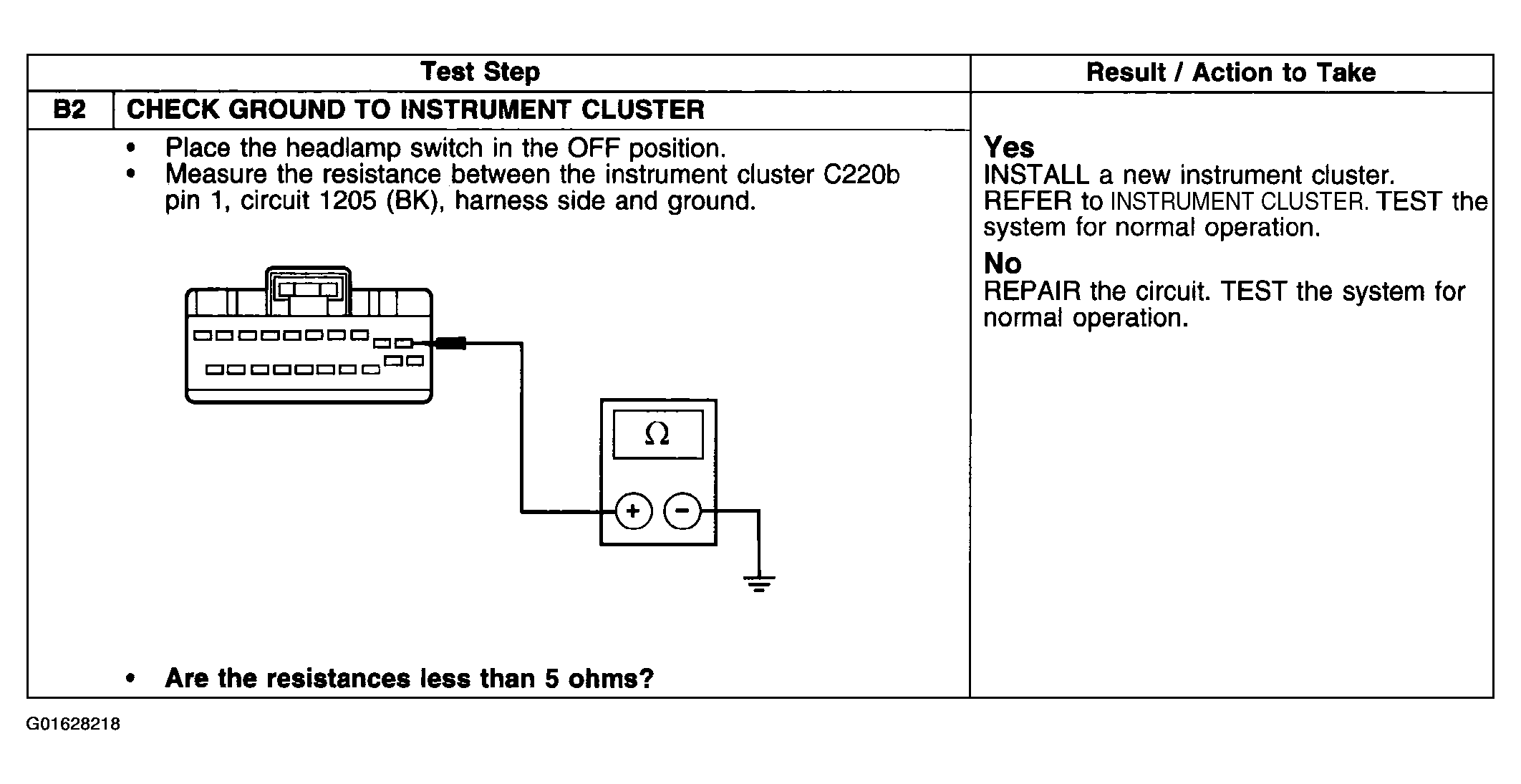

Fig 2: Pinpoint Test B: Instrument Cluster Illumination Is Inoperative (B2)
G01628218Courtesy of FORD MOTOR CO.
