Brake Booster - Vacuum: Installation

  1. Follow the removal procedure in reverse order.

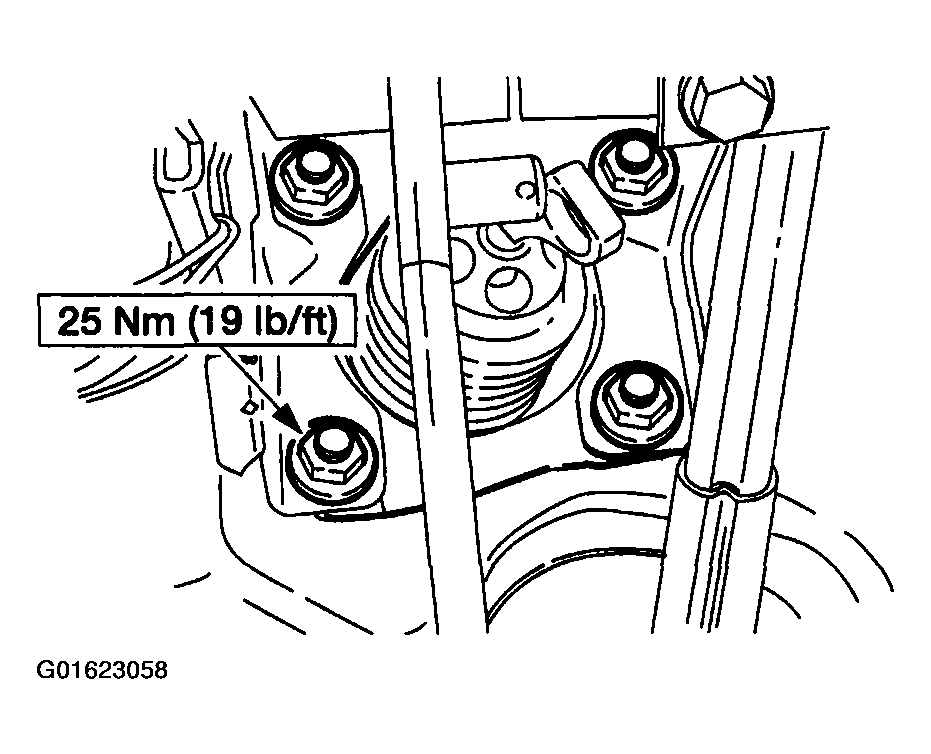

    Fig 1: Power Brake Booster Nuts Torque Specification
    G01623058Courtesy of FORD MOTOR CO.
    Fig 2: Installing Brake Master Cylinder
    G01623059Courtesy of FORD MOTOR CO.
