Brake Booster - Hydro-Boost: Removal

WARNING: The power brake booster should not be carried by the accumulator, nor should it ever be dropped on the accumulator. Check the snap ring on the accumulator for correct seating before the power brake booster is used. The accumulator contains high-pressure nitrogen gas and can be dangerous if mishandled.

WARNING: If the accumulator is to be disposed of, it must not be exposed to excessive heat. Before discarding the accumulator, drill a 1.6-mm (1/16-inch) diameter hole in the end of the accumulator can to relieve the gas pressure. Always wear safety glasses when performing this operation.

With the engine off, depress the brake pedal (2455) several times to discharge the accumulator.
Disconnect the battery ground cable (14301). For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the fluid level sensor connector.

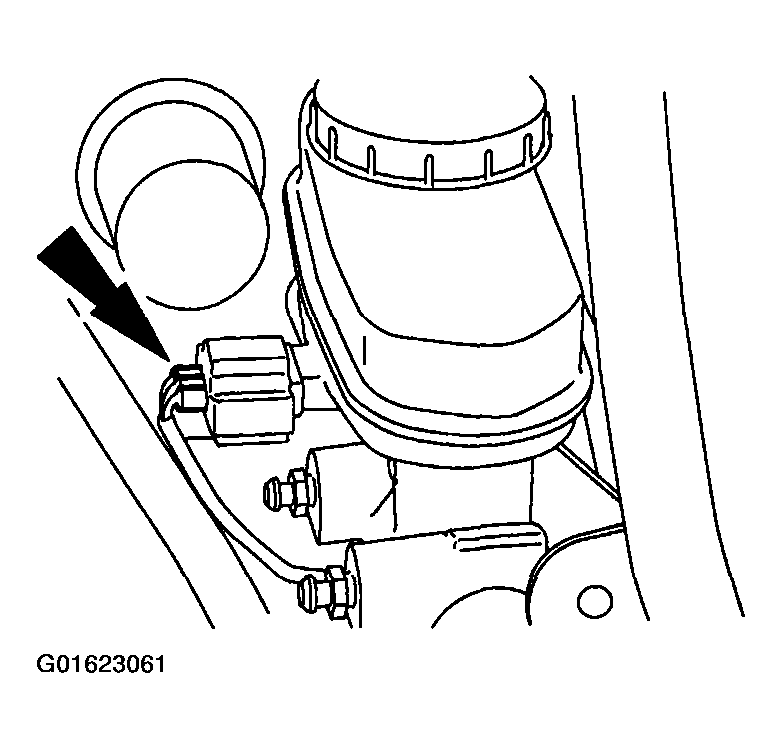

Fig 1: Disconnecting Fluid Level Sensor Connector
Courtesy of FORD MOTOR CO.
Disconnect the brake tubes.

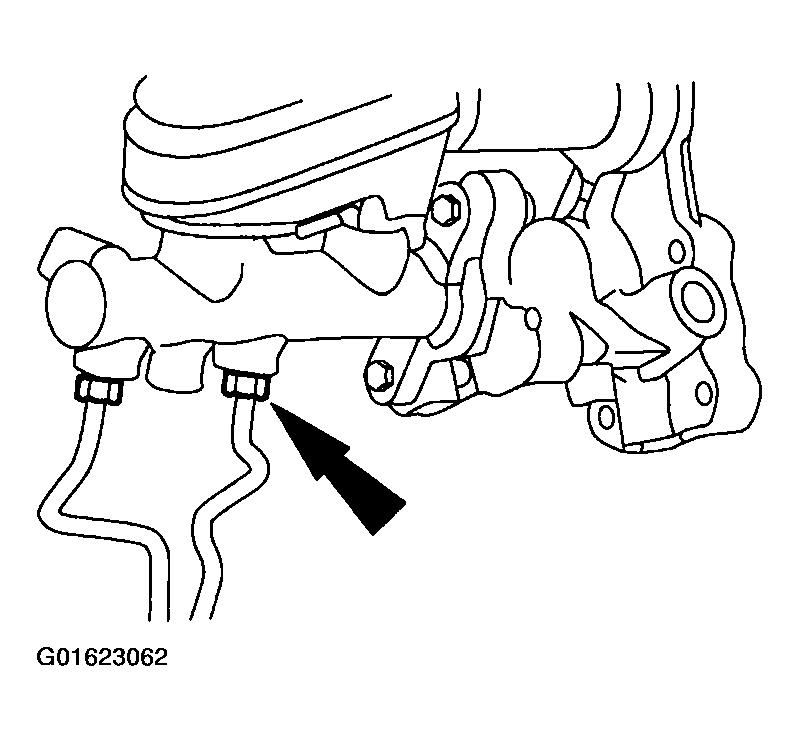

Fig 2: Disconnecting Brake Tubes
Courtesy of FORD MOTOR CO.
Disconnect the power steering return line hose (3A005).

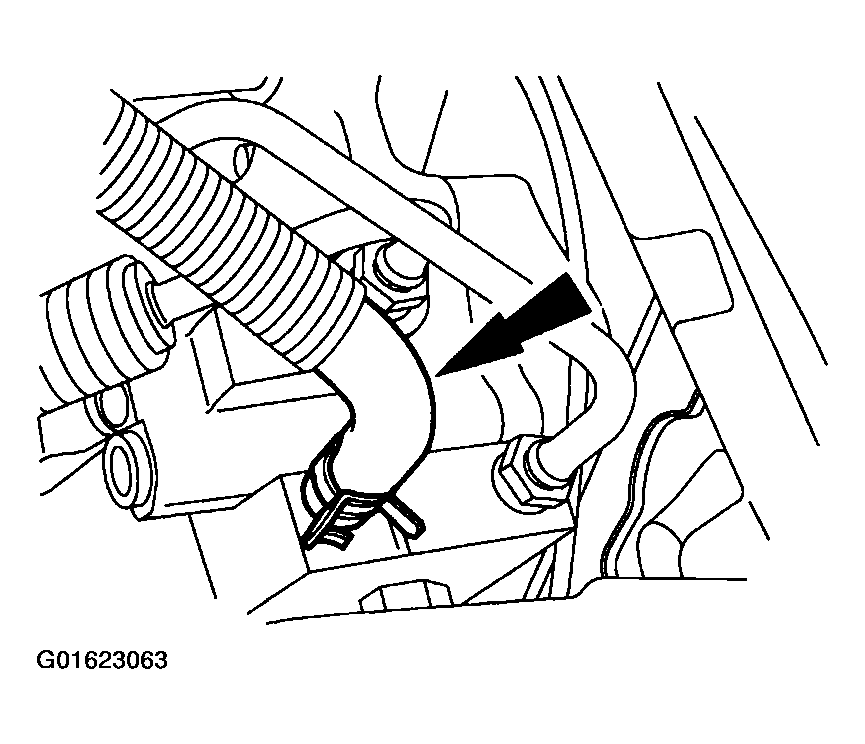

Fig 3: Disconnecting Power Steering Return Line Hose
Courtesy of FORD MOTOR CO.
Disconnect the power steering pressure lines.

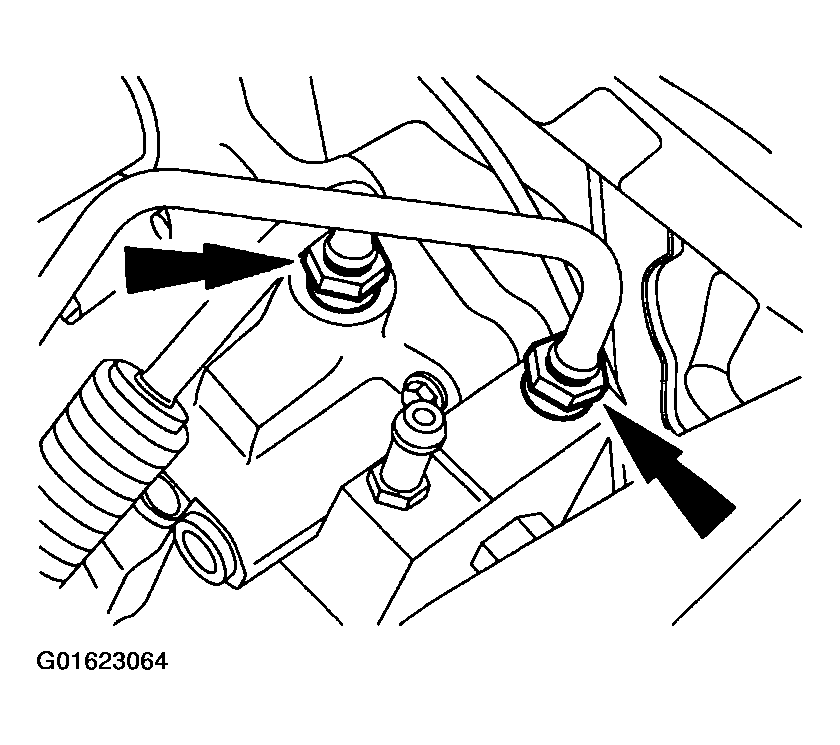

Fig 4: Disconnecting Power Steering Pressure Lines
Courtesy of FORD MOTOR CO.
Remove the self-locking pin.

Fig 5: Removing Self-Locking Pin
Courtesy of FORD MOTOR CO.
Remove the stoplight switch (13480) and the brake booster push rod from the brake pedal pin.

Fig 6: Removing Stoplight Switch And Brake Booster Push Rod From Brake Pedal Pin
Courtesy of FORD MOTOR CO.
Remove the power brake booster nuts.

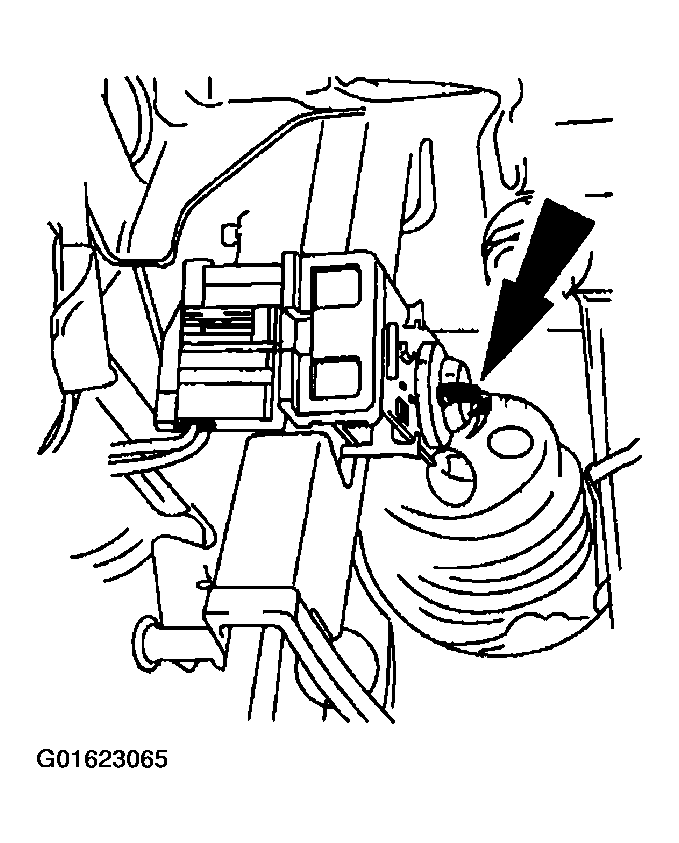

Fig 7: Removing Power Brake Booster Nuts
Courtesy of FORD MOTOR CO.
Remove the power brake booster nut.

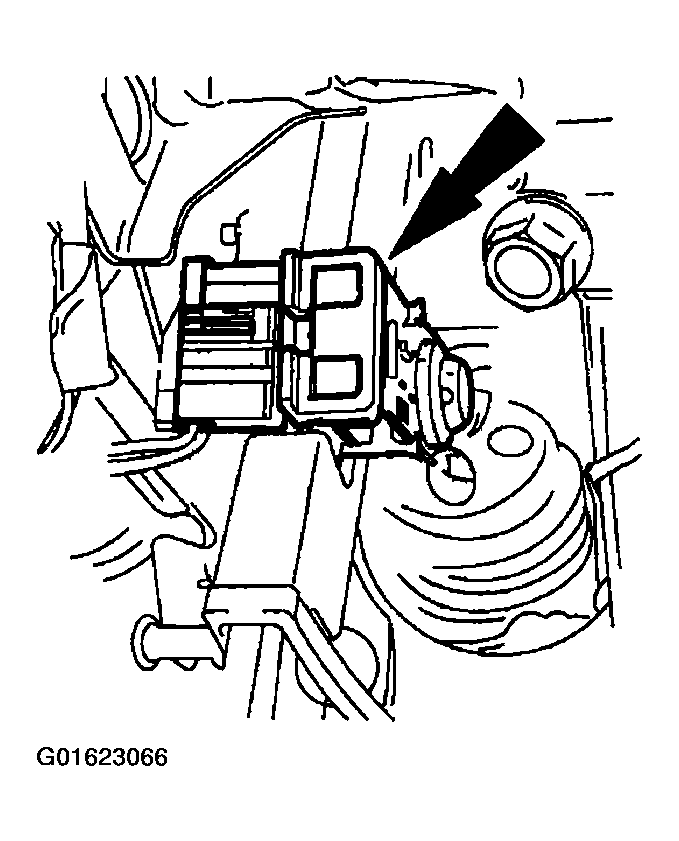

Fig 8: Removing Power Brake Booster Nut
Courtesy of FORD MOTOR CO.
Remove the booster.

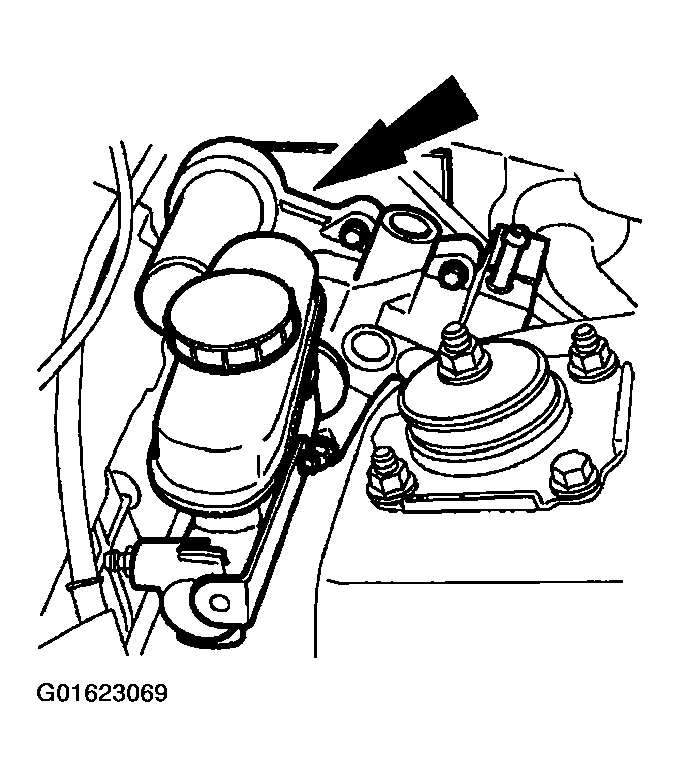

Fig 9: Removing Booster
Courtesy of FORD MOTOR CO.
