Brake Booster - Hydro-Boost: Installation

1. Follow the removal procedure in reverse order.
   • Install new Teflon® seals on the power steering pressure fittings.
   • Bleed Hydro-Boost. For additional information, refer to HYDRO-BOOST BLEEDING .
   • Bleed the brake system. For additional information, refer to BRAKE SYSTEM-GENERAL INFORMATION .
   Fig 1: Identifying Teflon® Seals On Power Steering Pressure Fittings

   Courtesy of FORD MOTOR CO.

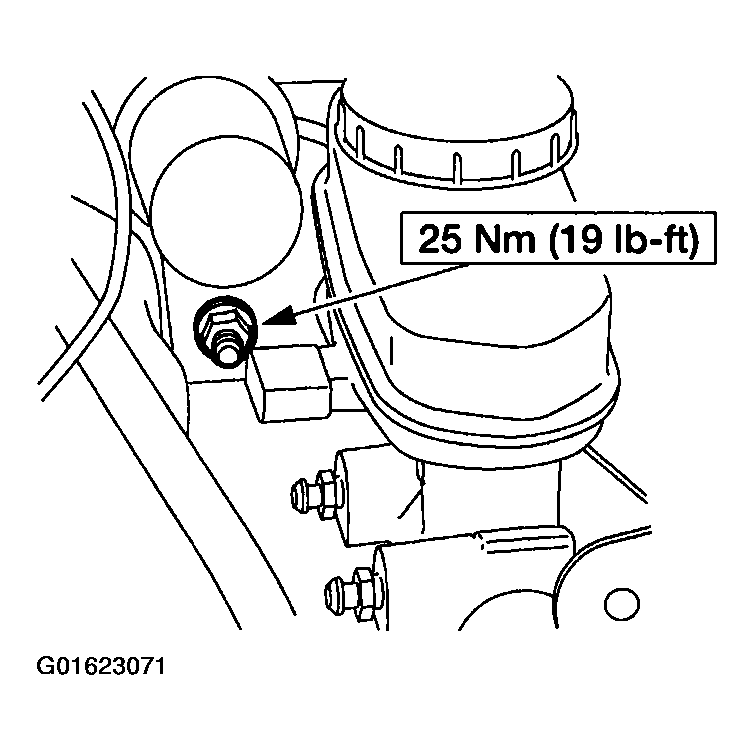

   Fig 2: Power Brake Booster Nut Torque Specification (1 Of 2)

   Courtesy of FORD MOTOR CO.
   Fig 3: Power Brake Booster Nut Torque Specification (2 Of 2)

   Courtesy of FORD MOTOR CO.

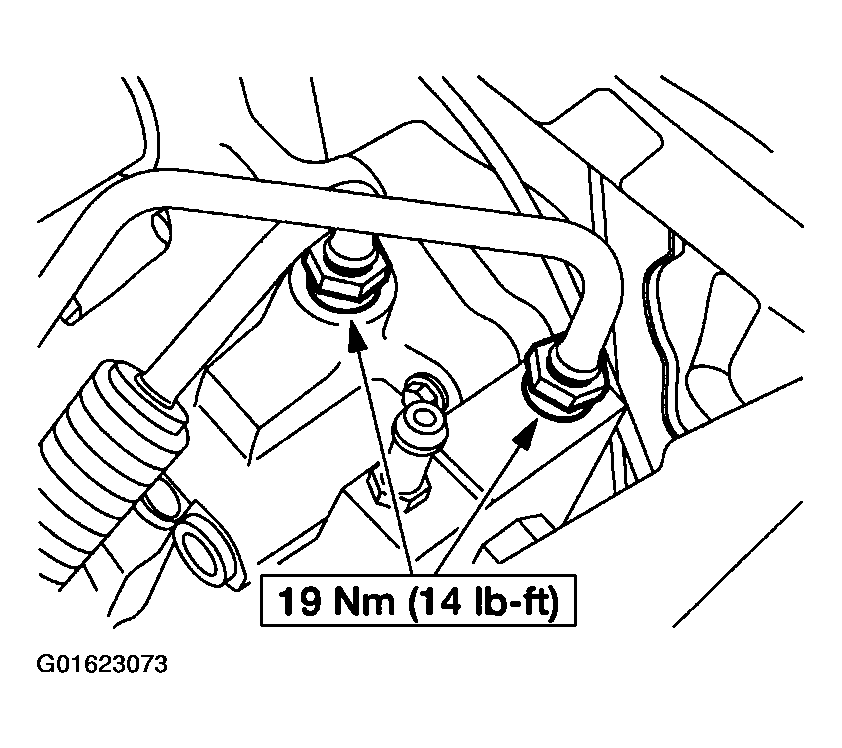

Fig 4: Identifying Power Steering Pressure Line Tightening Specification

Courtesy of FORD MOTOR CO.

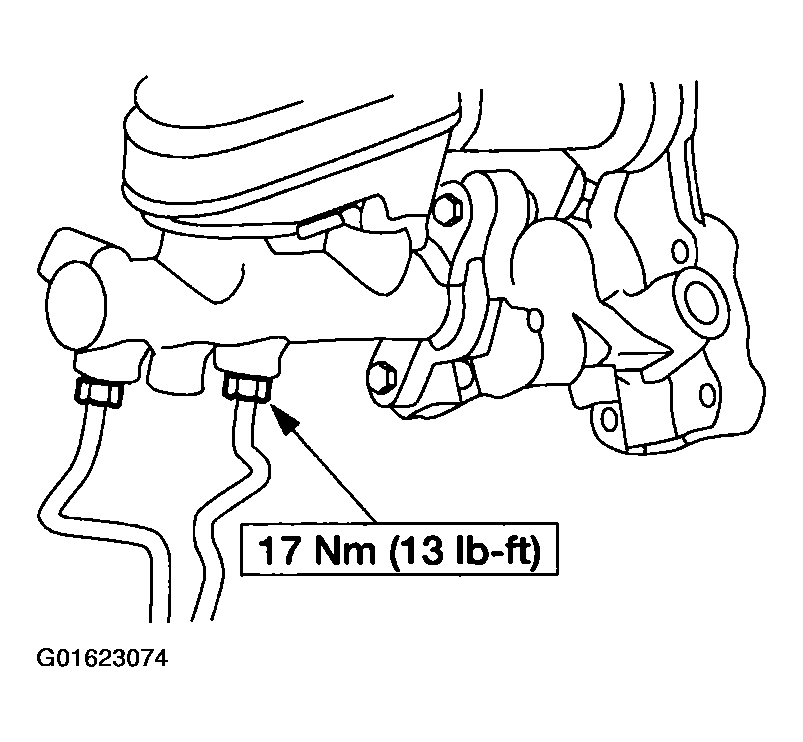

Fig 5: Identifying Brake Tube Tightening Specification

Courtesy of FORD MOTOR CO.
