Removal & Installation

Disconnect electrical connector from the filler cap by pulling back tab and depressing clips. See Fig 1.
Remove brake fluid reservoir filler cap.
Use a suitable clean suction device to remove fluid from reservoir.
Install reservoir cap.
Remove reservoir mounting screws. See Fig 1.
Remove Central Junction Box (CJB) screw. See Fig 2.
Disconnect electrical connector clip located under CJB. See Fig 3.
Disconnect and cap master cylinder feed hose.
On vehicles with M/T, disconnect clutch master cylinder feed hose.
On all vehicles, disconnect reservoir wiring harness.
To install, reverse removal procedure.

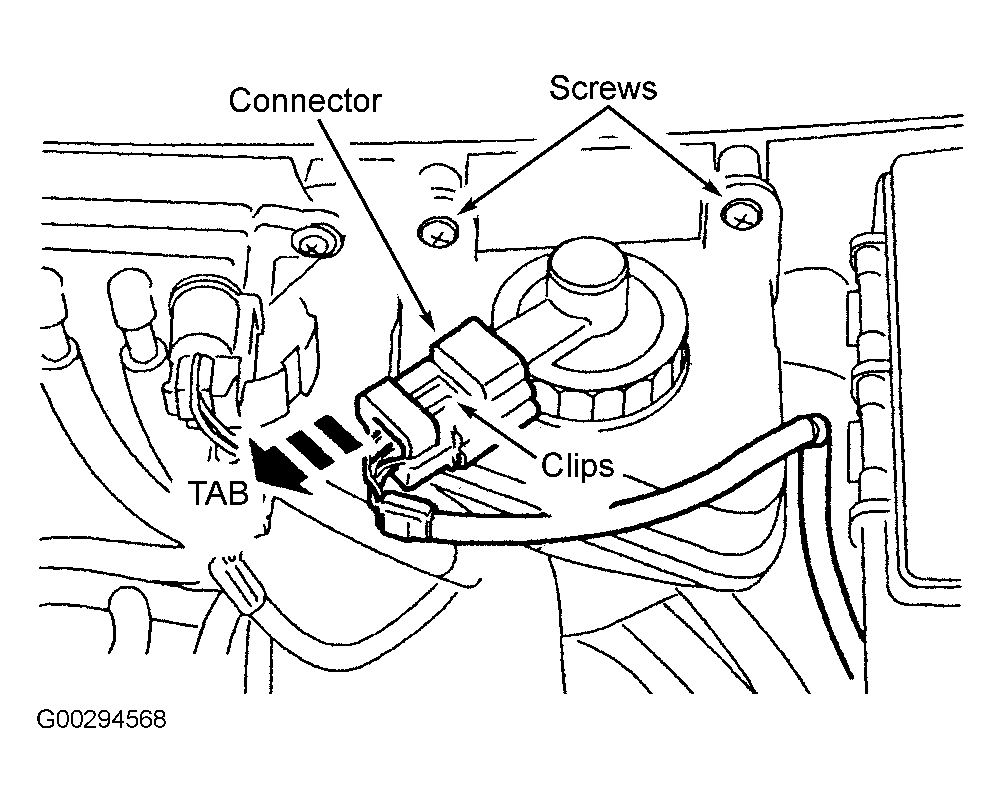

Fig 1: Disconnecting Brake Fluid Reservoir Electrical Connector

Courtesy of FORD MOTOR CO.

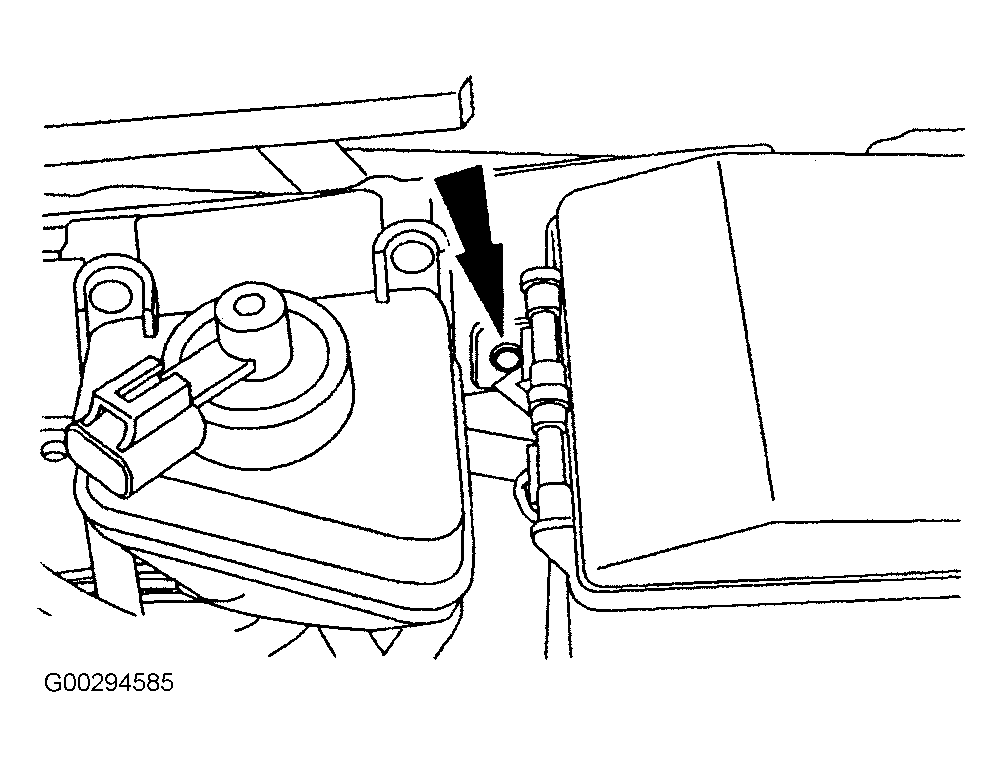

Fig 2: Locating Central Junction Box Screw

Courtesy of FORD MOTOR CO.

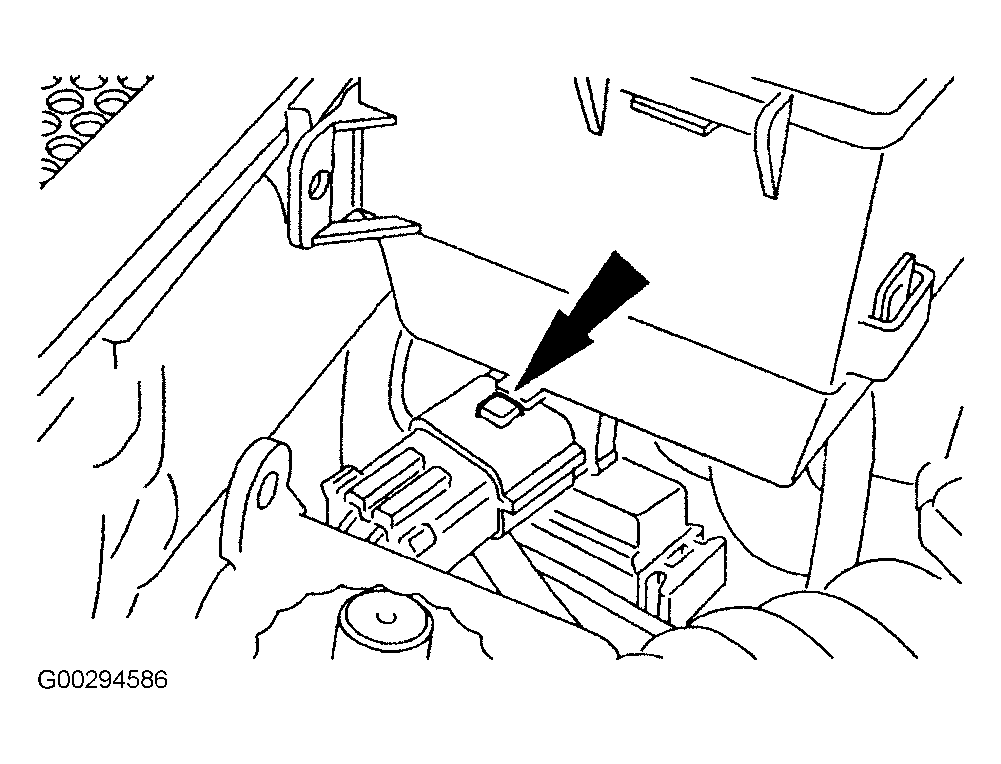

Fig 3: Locating Electrical Connector Under CJB

Courtesy of FORD MOTOR CO.
