Brake Booster: Removal

All Vehicles

CAUTION: If brake fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

Remove the master cylinder. For additional information, refer to HYDRAULIC BRAKE ACTUATION .

Vehicles With Speed Control

Disconnect the speed control unit electrical connector.

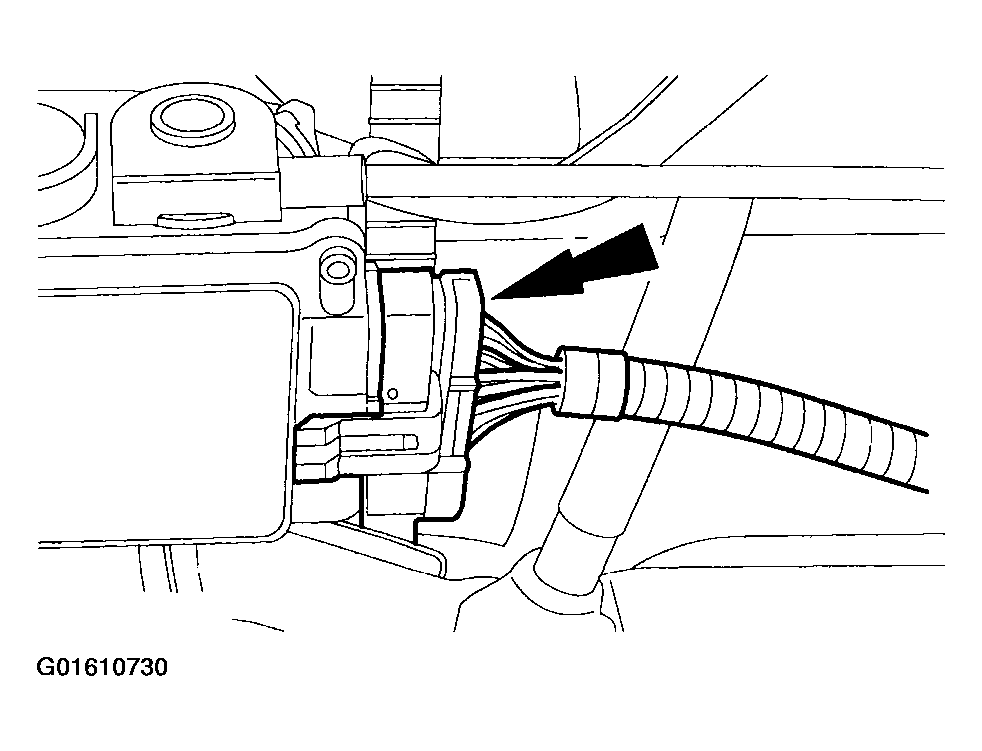

Fig 1: Disconnecting Speed Control Unit Electrical Connector
Courtesy of FORD MOTOR CO.
Detach the speed control unit.
- Lower the speed control unit.

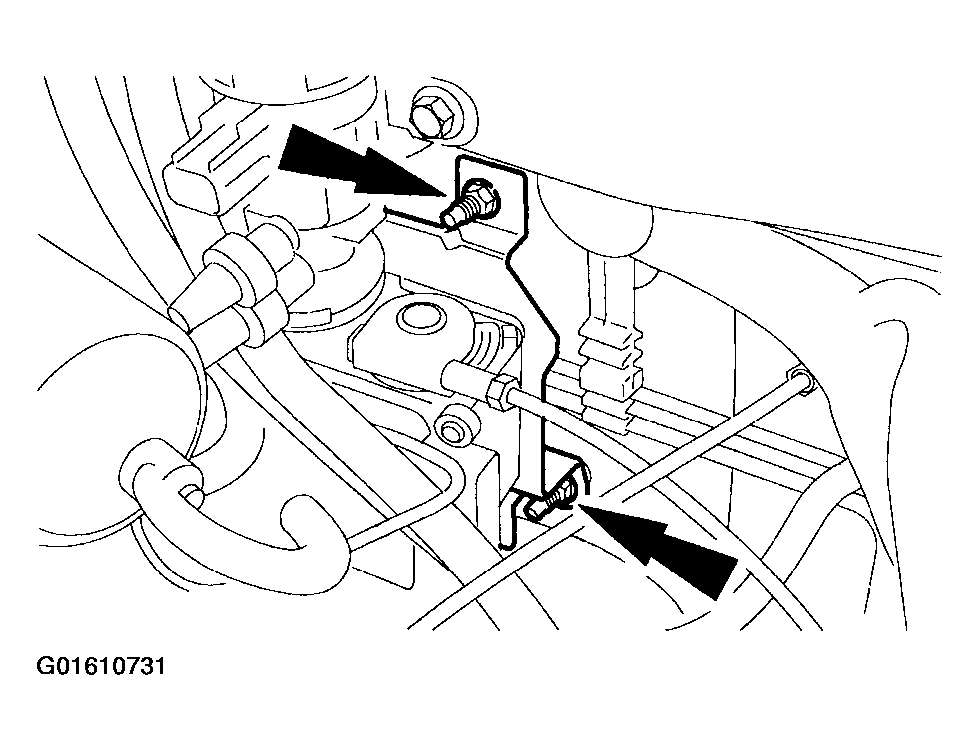

  Fig 2: Detaching Speed Control Unit
  Courtesy of FORD MOTOR CO.

All Vehicles

Detach the brake tubes from the bulkhead.

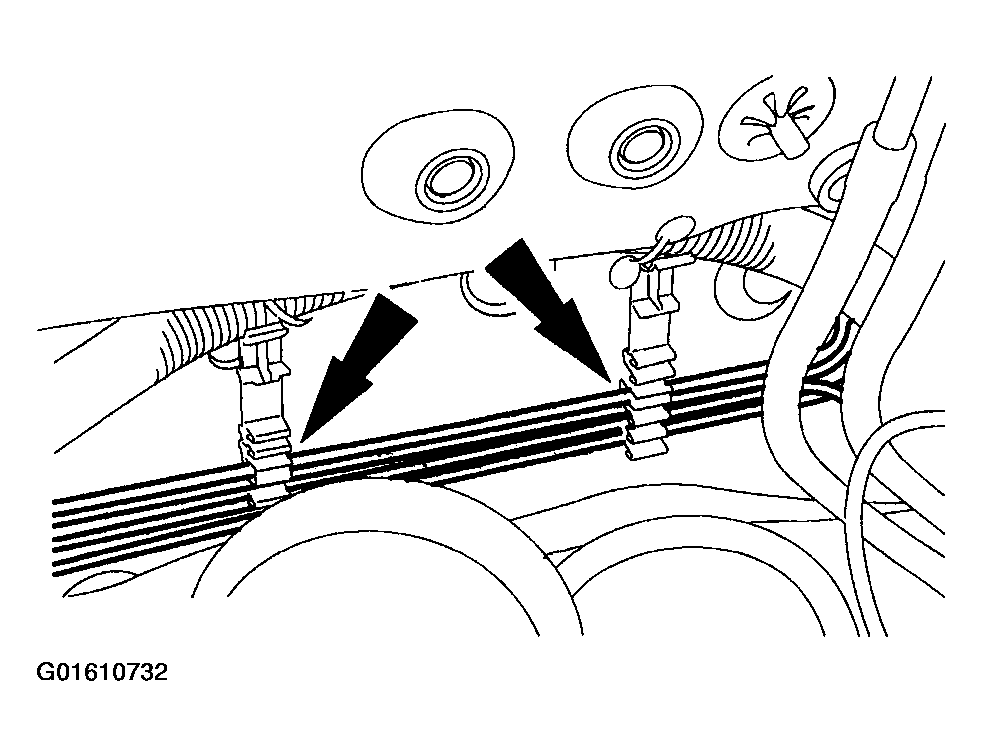

Fig 3: Identifying Brake Tubes From Bulkhead
Courtesy of FORD MOTOR CO.
Disconnect the hydraulic control unit (HCU) electrical connector.
1. Release the retainer.
2. Disconnect the HCU electrical connector.

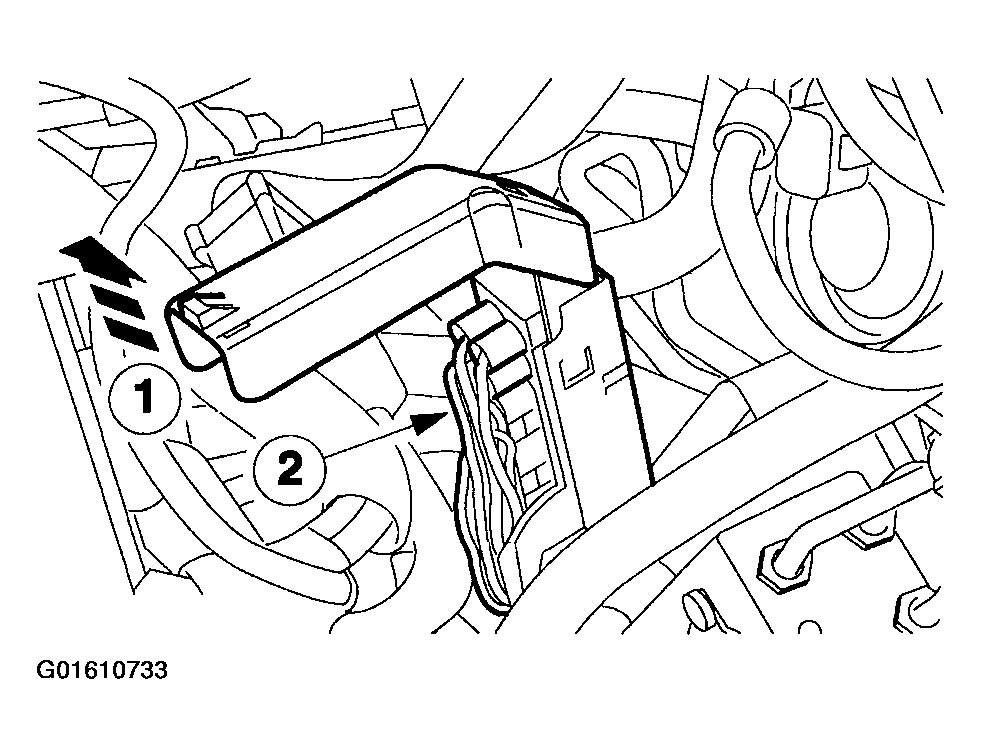

  Fig 4: Disconnecting Hydraulic Control Unit Electrical Connector
  Courtesy of FORD MOTOR CO.

CAUTION: Cap the brake tubes to prevent fluid loss or dirt ingress.

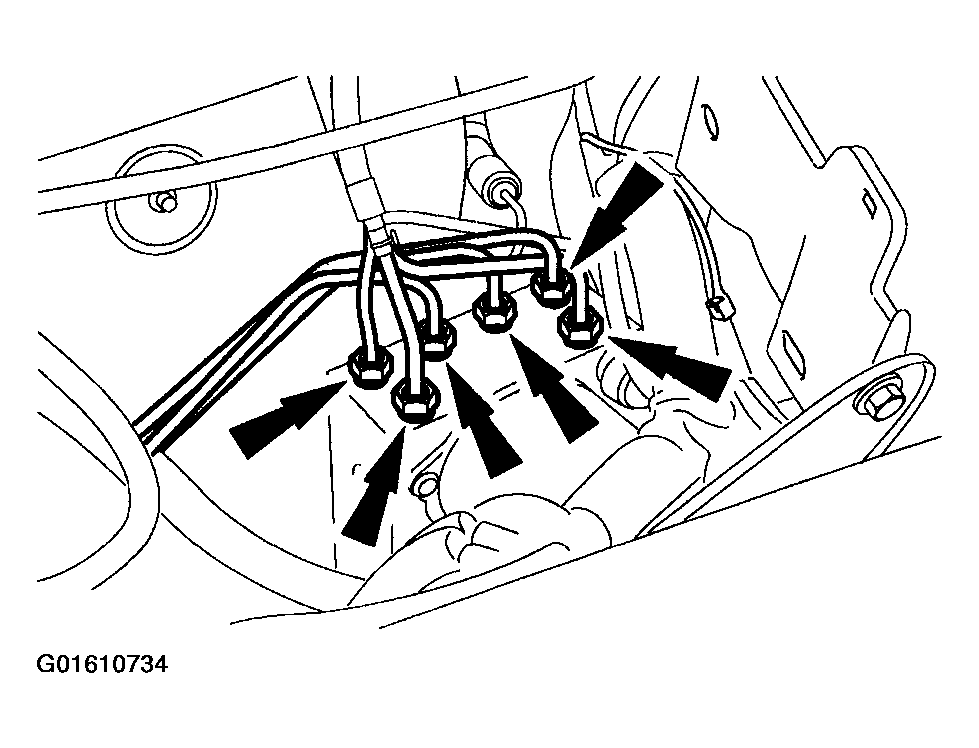

Fig 5: Disconnecting Brake Tubes From HCU

Courtesy of FORD MOTOR CO.

Disconnect the brake tubes from the HCU.
Detach the brake booster actuating rod from the brake pedal.
1. Depress the brake pedal.
2. Depress the clip.
3. Remove the pin.

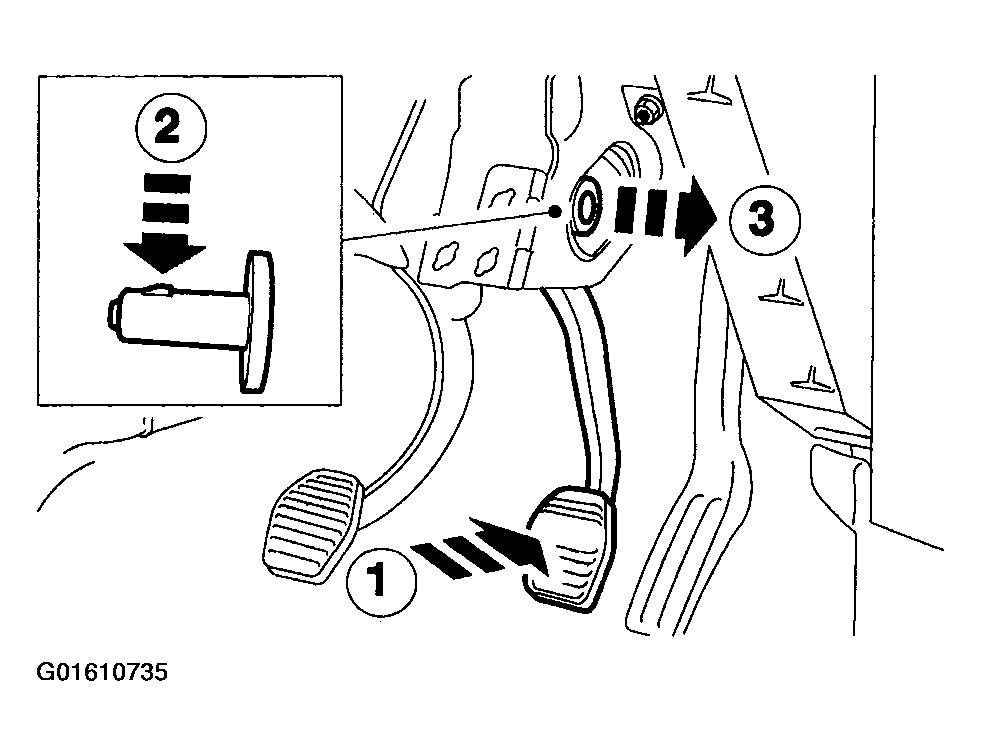

  Fig 6: Identifying Brake Booster Actuating Rod From Brake Pedal
  Courtesy of FORD MOTOR CO.
Remove the brake booster retaining nuts.

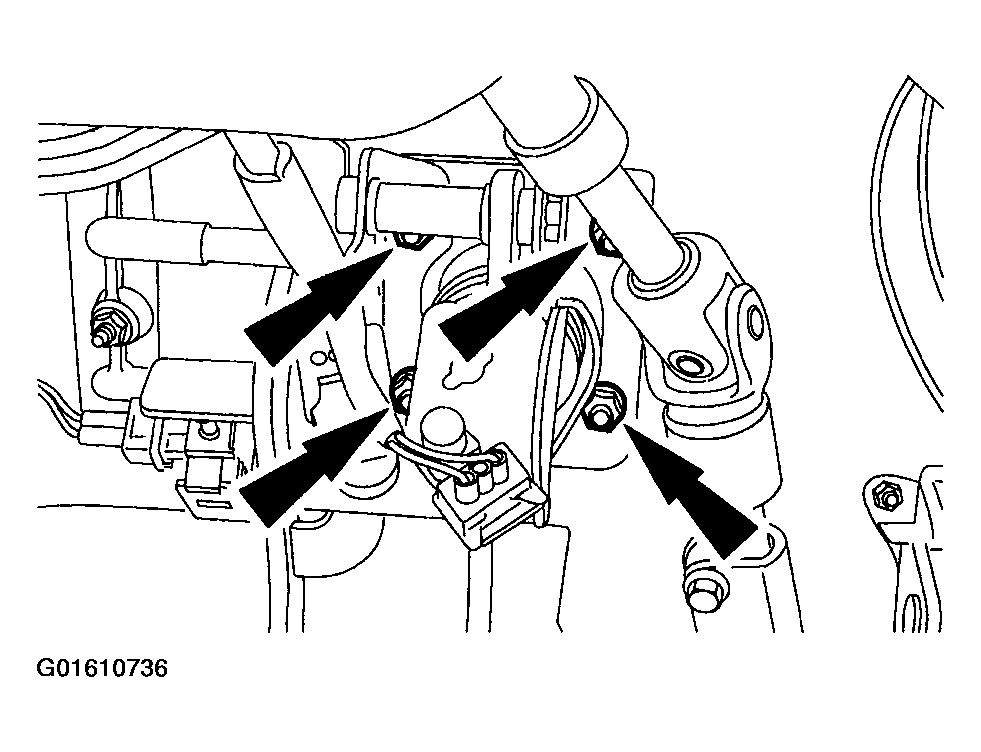

Fig 7: Removing Brake Booster Retaining Nuts
Courtesy of FORD MOTOR CO.
Remove the brake booster.
