Removal & Installation

  1. Release parking brake.
  2. Raise and support vehicle.
  3. Remove floor console. See FLOOR CONSOLE .
  4. Disconnect electrical connector. See Fig 1.

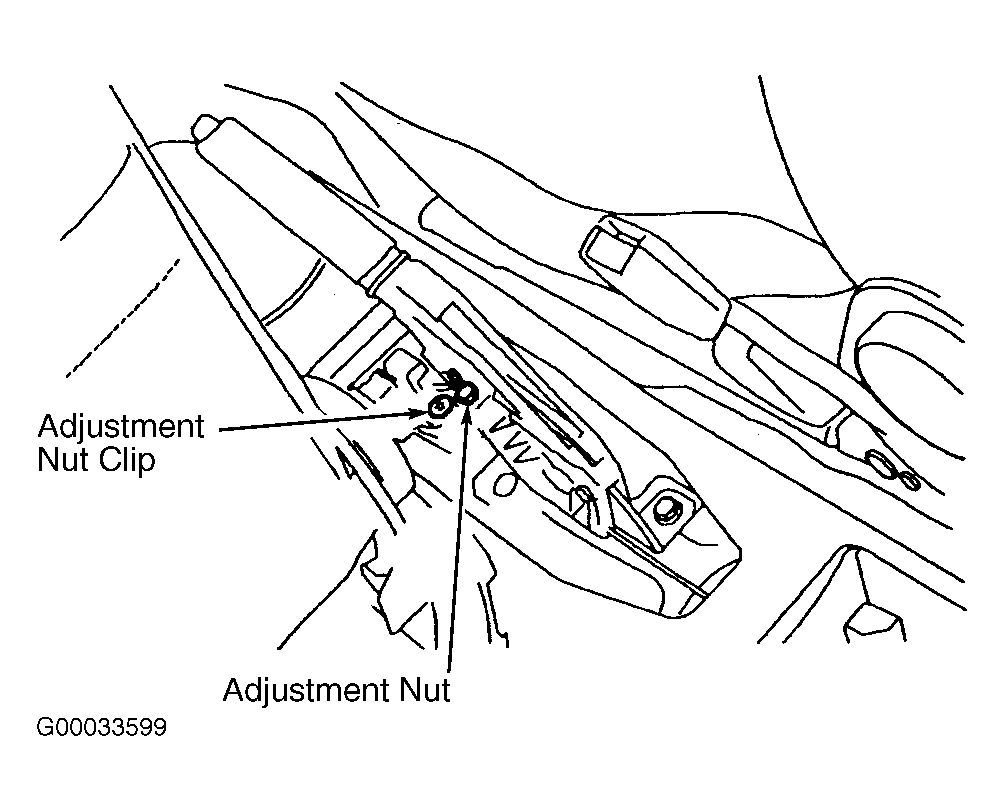

  5. Remove clip and loosen parking brake cable adjustment nut. See Figure.
  6. Remove parking brake control mounting nuts. See Fig 2. Remove parking brake control.
  7. To install, reverse removal procedure. Tighten fasteners to specification. See TORQUE SPECIFICATIONS . Check and adjust as necessary. See PARKING BRAKE  under ADJUSTMENTS.

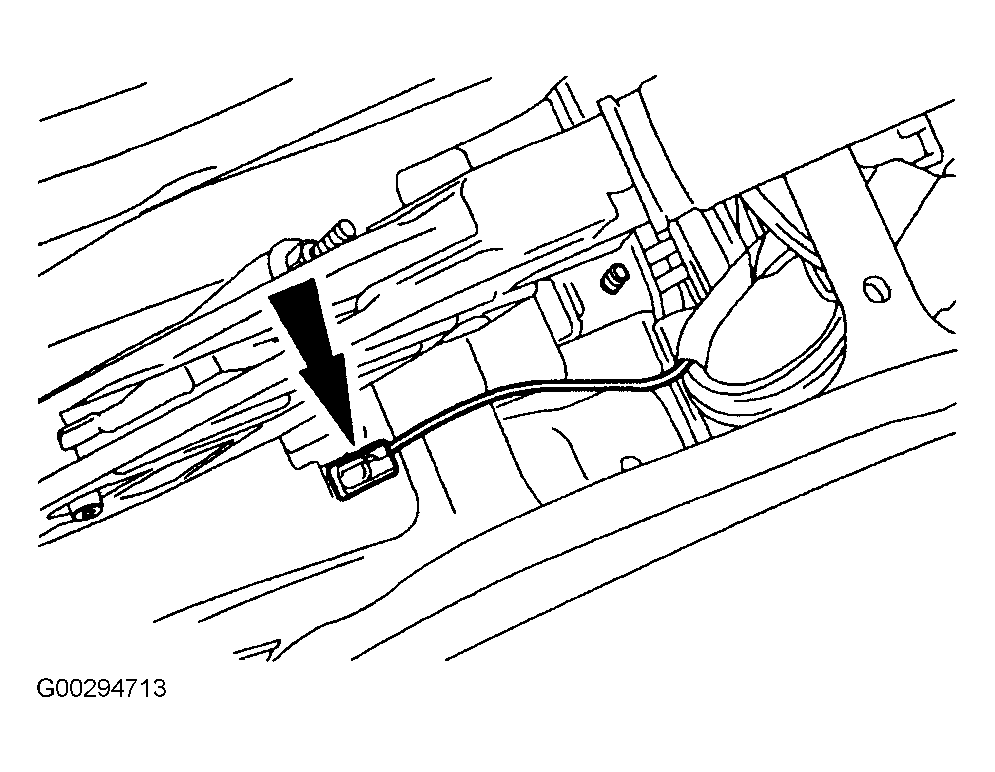

Fig 1: Locating Parking Brake Control Electrical Connector
G00294713Courtesy of FORD MOTOR CO.

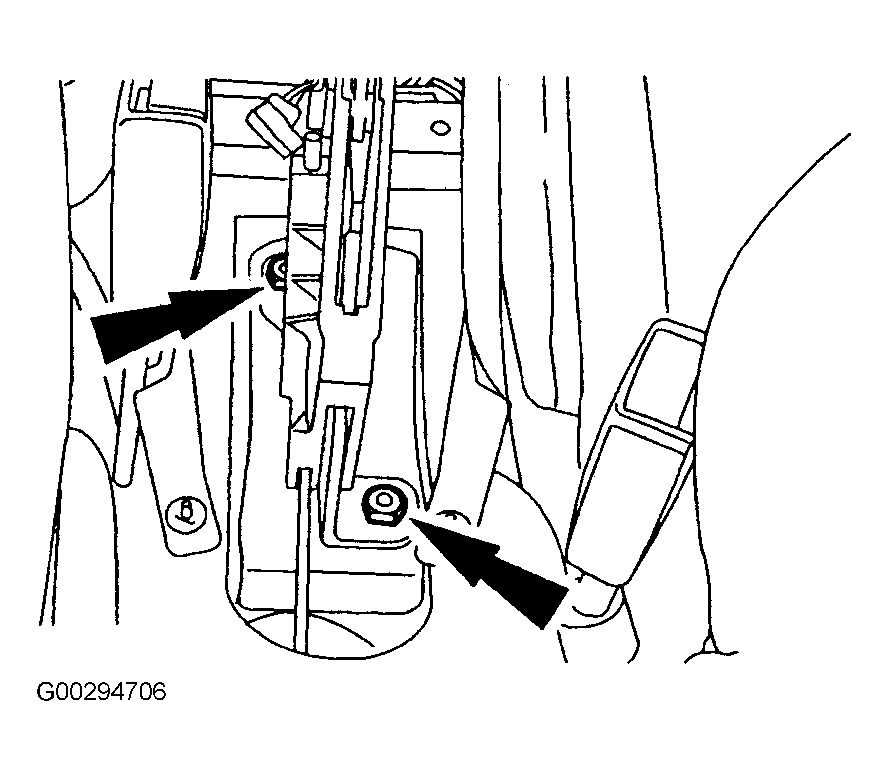

Fig 2: Locating Parking Brake Control Mounting Nuts
G00294706Courtesy of FORD MOTOR CO.
