Instrument Cluster and Panel Illumination
>>
Symptom Chart
Symptom Chart

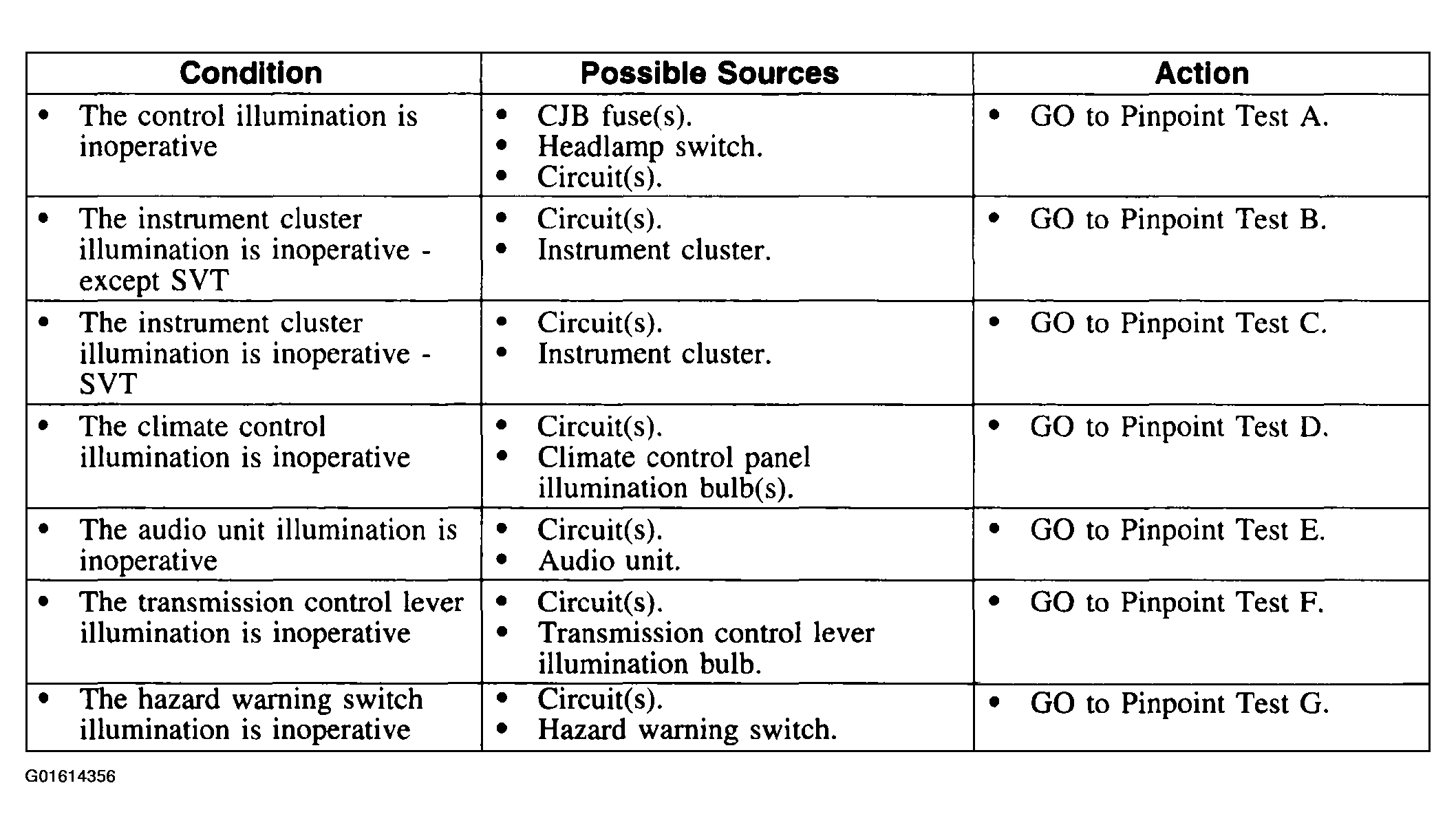

Fig 1: Symptom Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

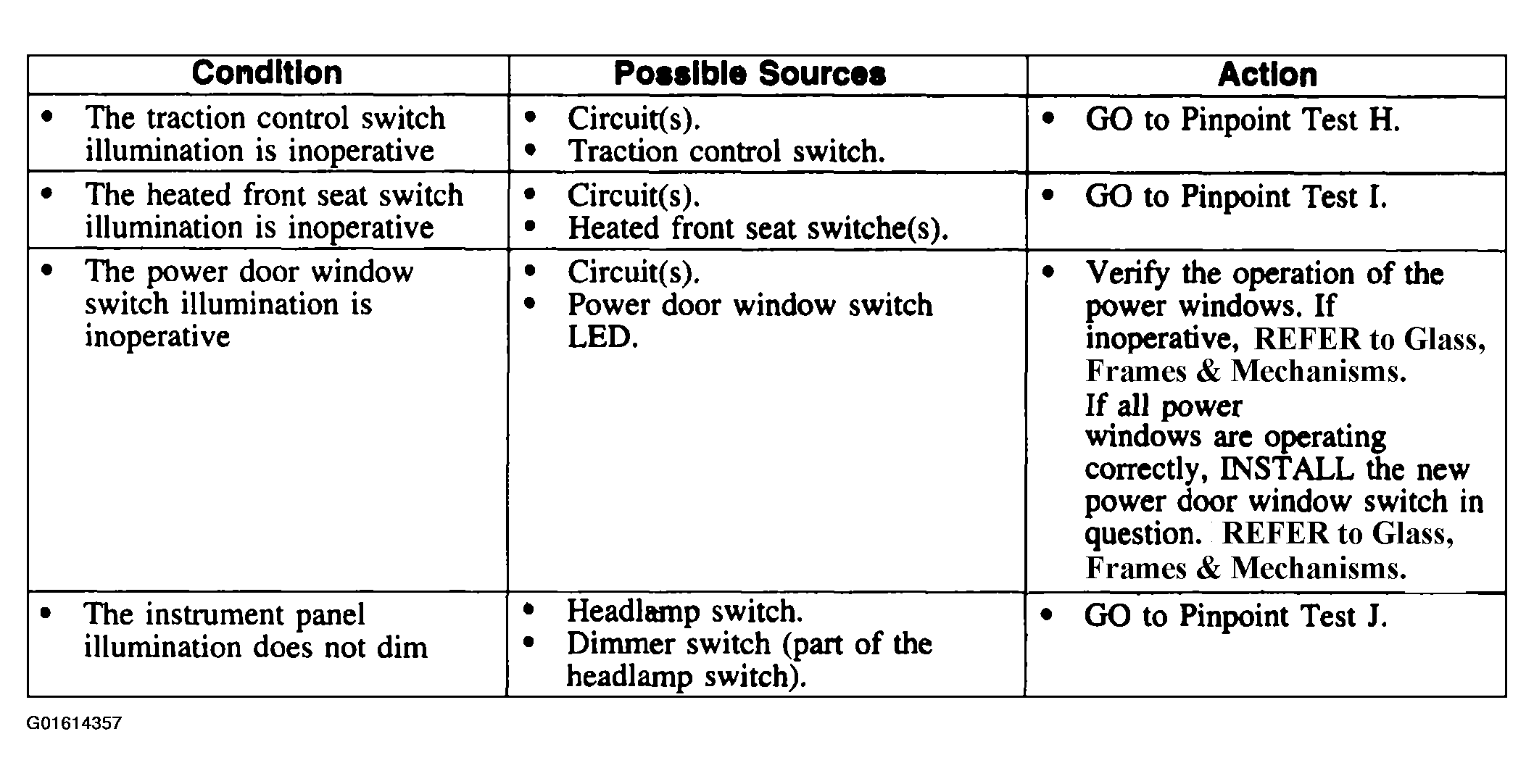

Fig 2: Symptom Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
