Pinpoint Test G: The Hazard Switch Illumination Is Inoperative

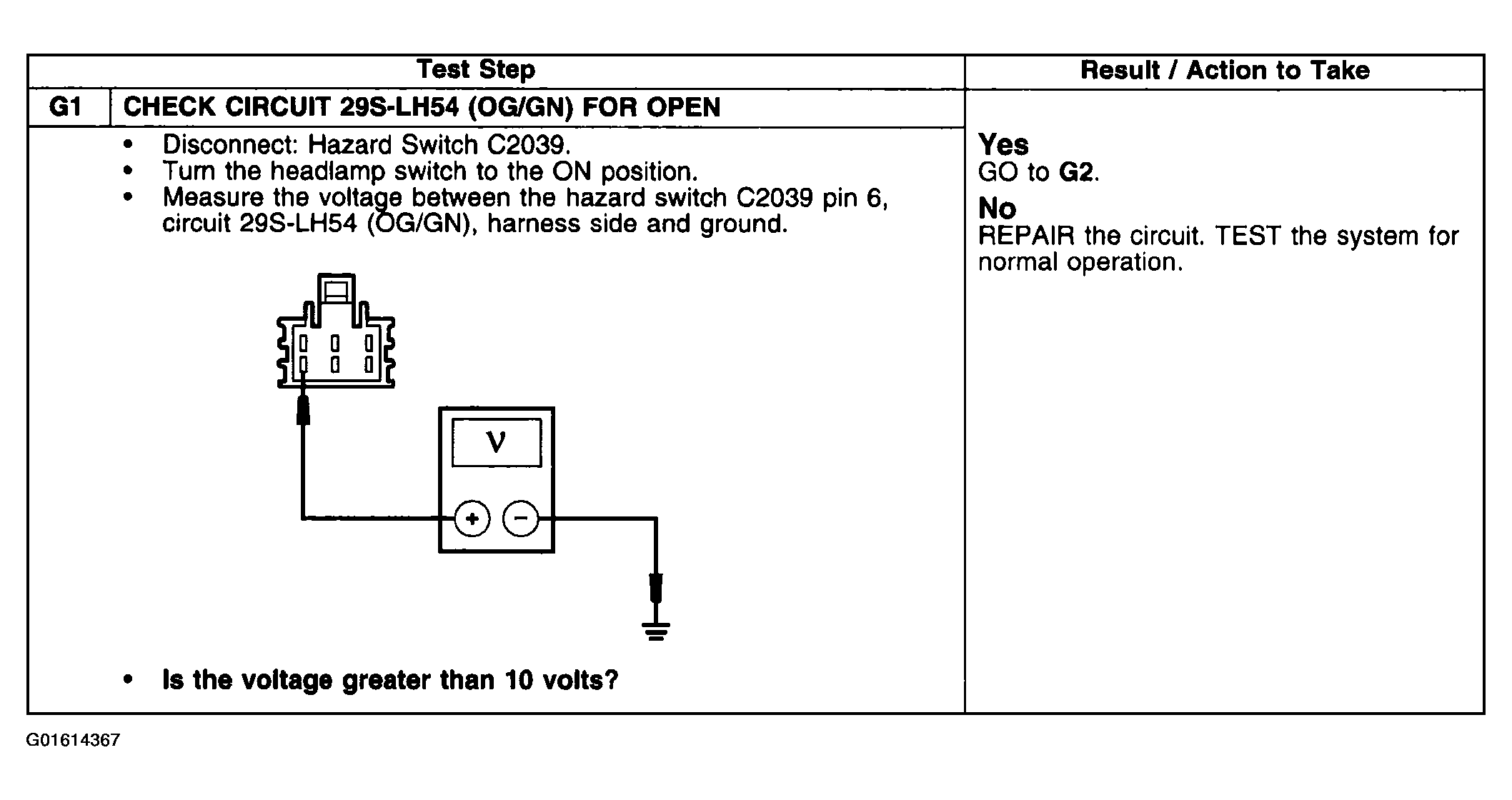

Fig 1: Pinpoint Test G: Hazard Switch Illumination Is Inoperative (G1)
G01614367Courtesy of FORD MOTOR CO.

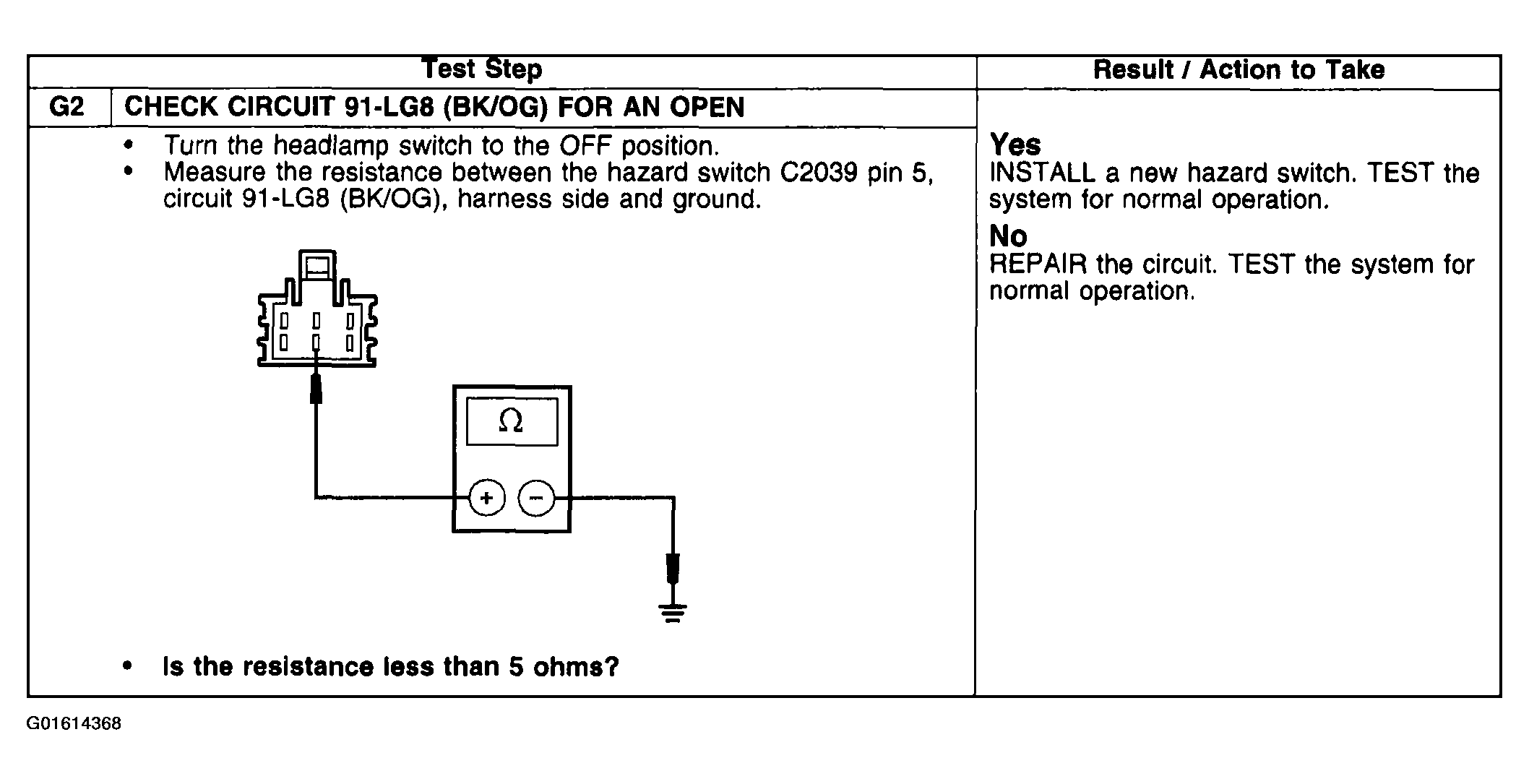

Fig 2: Pinpoint Test G: Hazard Switch Illumination Is Inoperative (G2)
G01614368Courtesy of FORD MOTOR CO.
