Pinpoint Test F: The Transmission Control Lever Illumination Is Inoperative

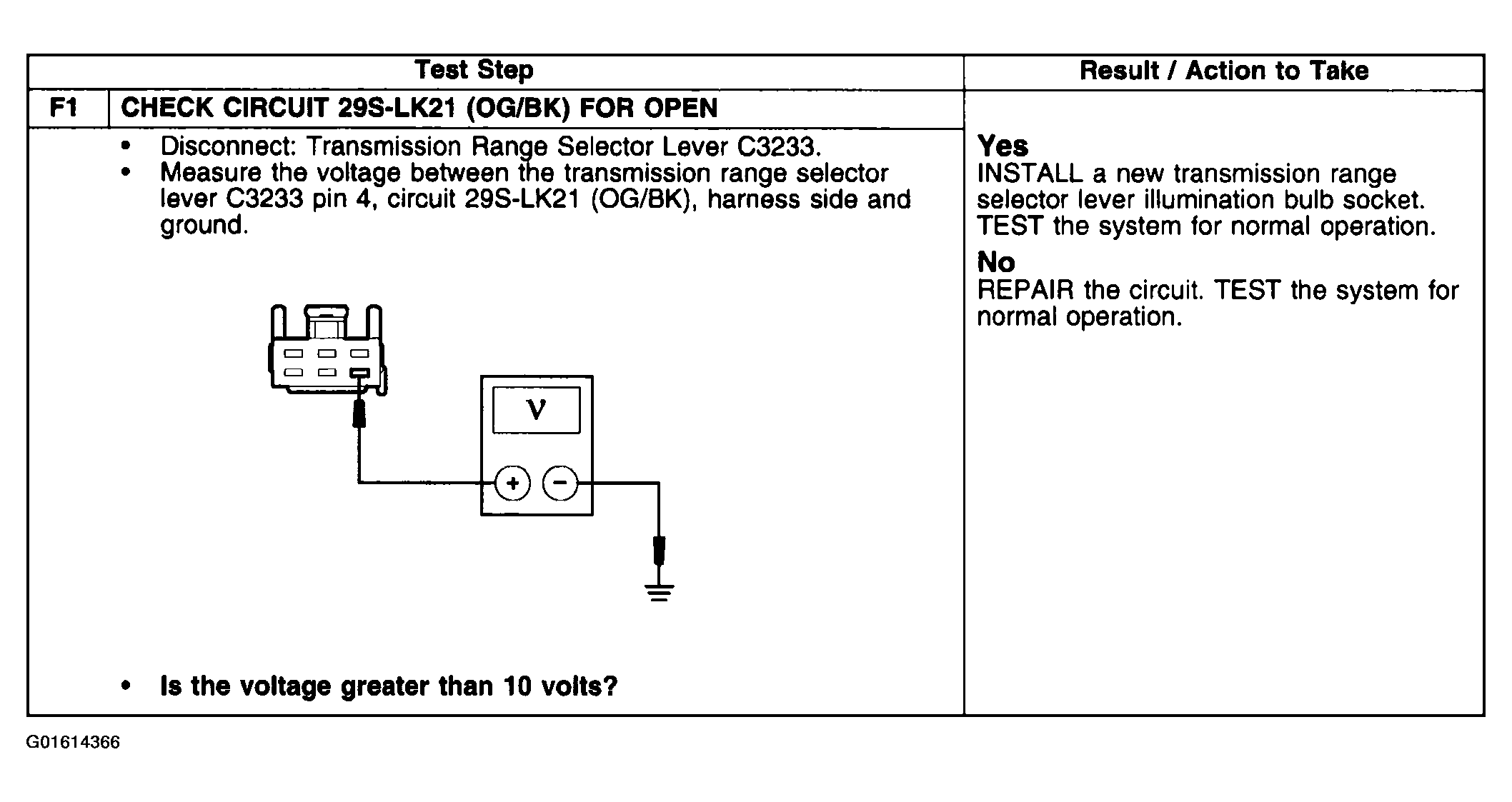

Fig 1: Pinpoint Test F: Transmission Control Lever Illumination Is Inoperative (F1)

G01614366

Courtesy of FORD MOTOR CO.
