Pinpoint Test E: The Audio Unit Illumination Is Inoperative

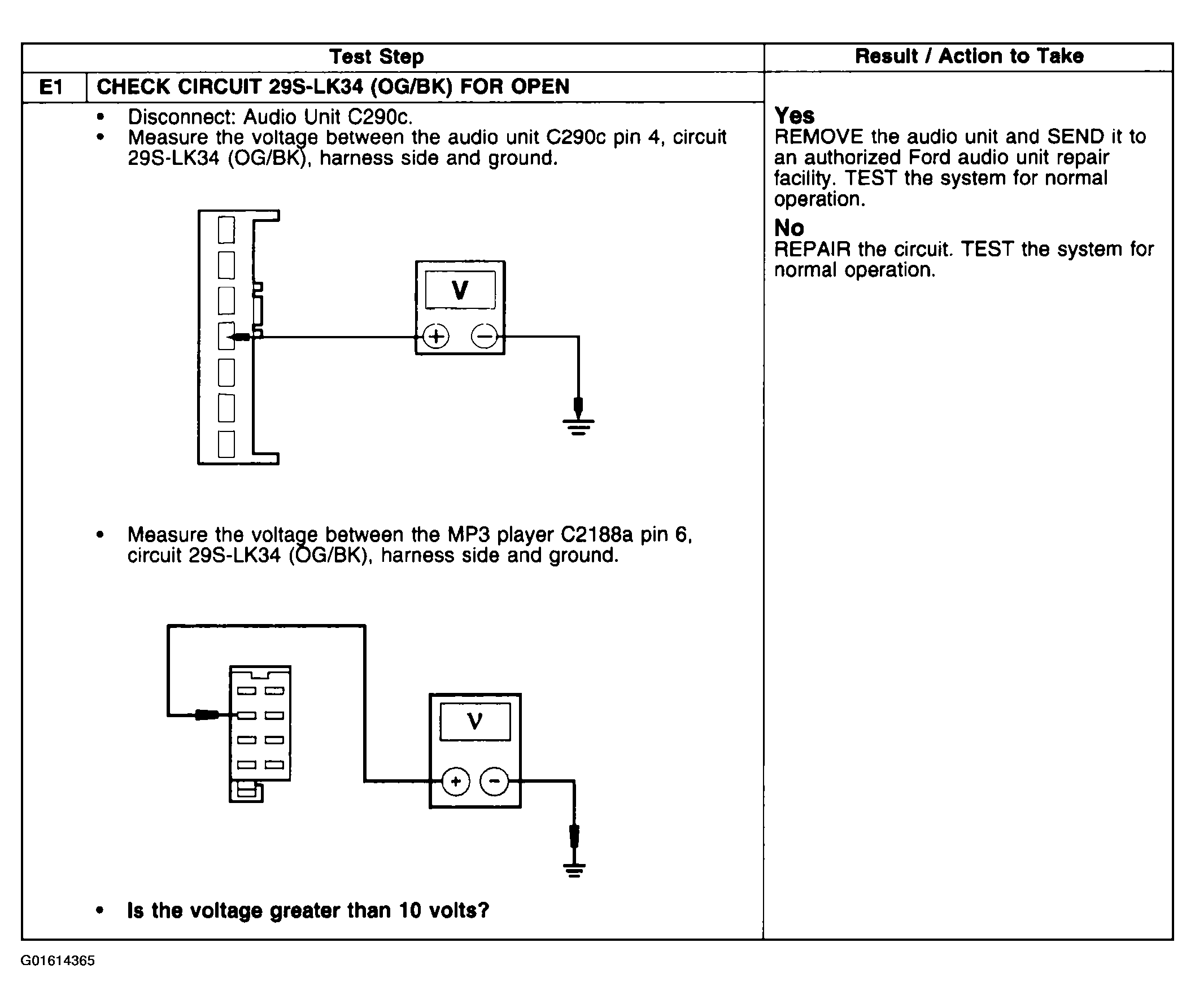

Fig 1: Pinpoint Test E: Audio Unit Illumination Is Inoperative (E1)

G01614365

Courtesy of FORD MOTOR CO.
