Pinpoint Test D: The Climate Control Illumination Is Inoperative

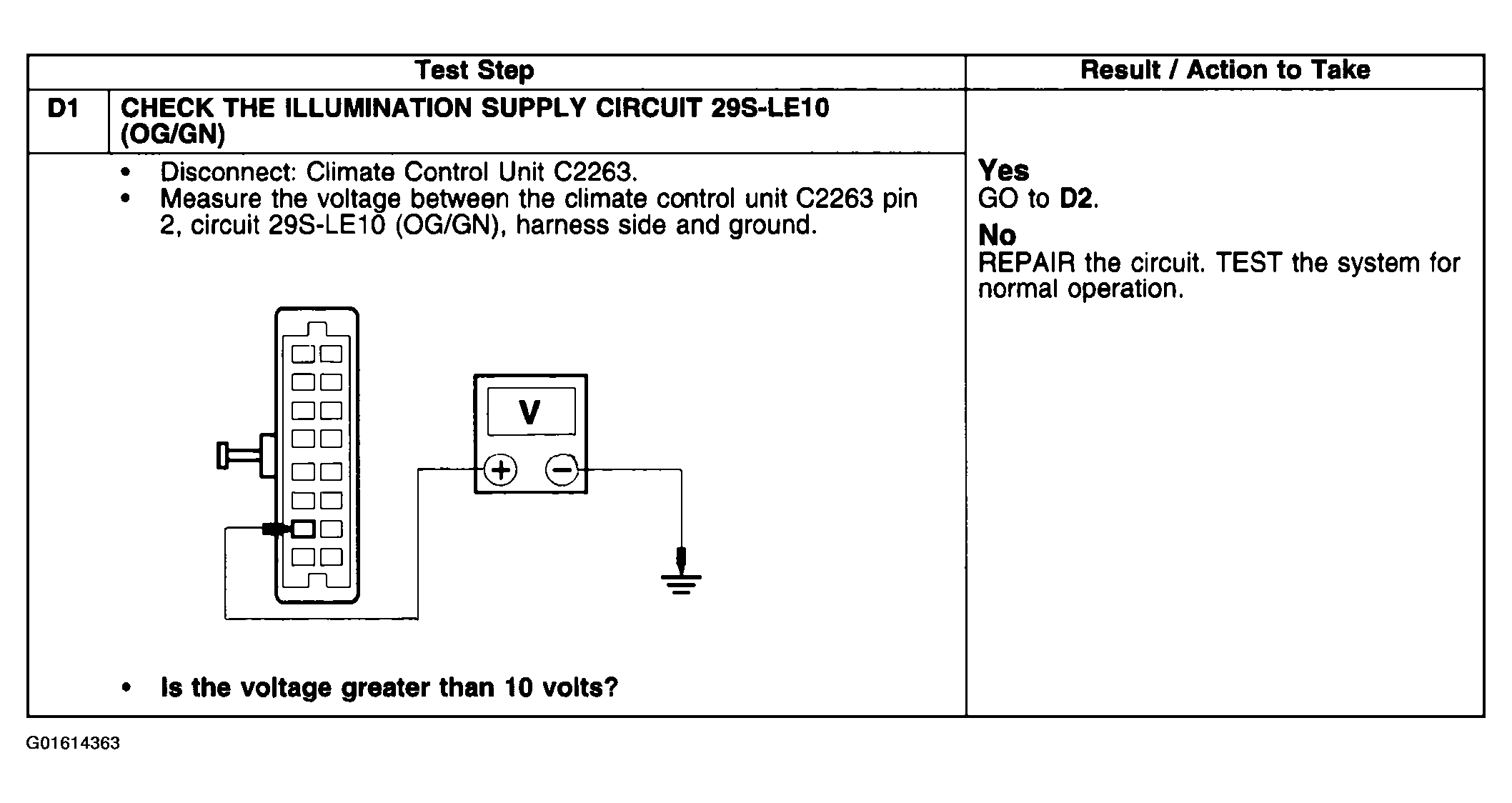

Fig 1: Pinpoint Test D: Climate Control Illumination Is Inoperative (D1)
G01614363Courtesy of FORD MOTOR CO.

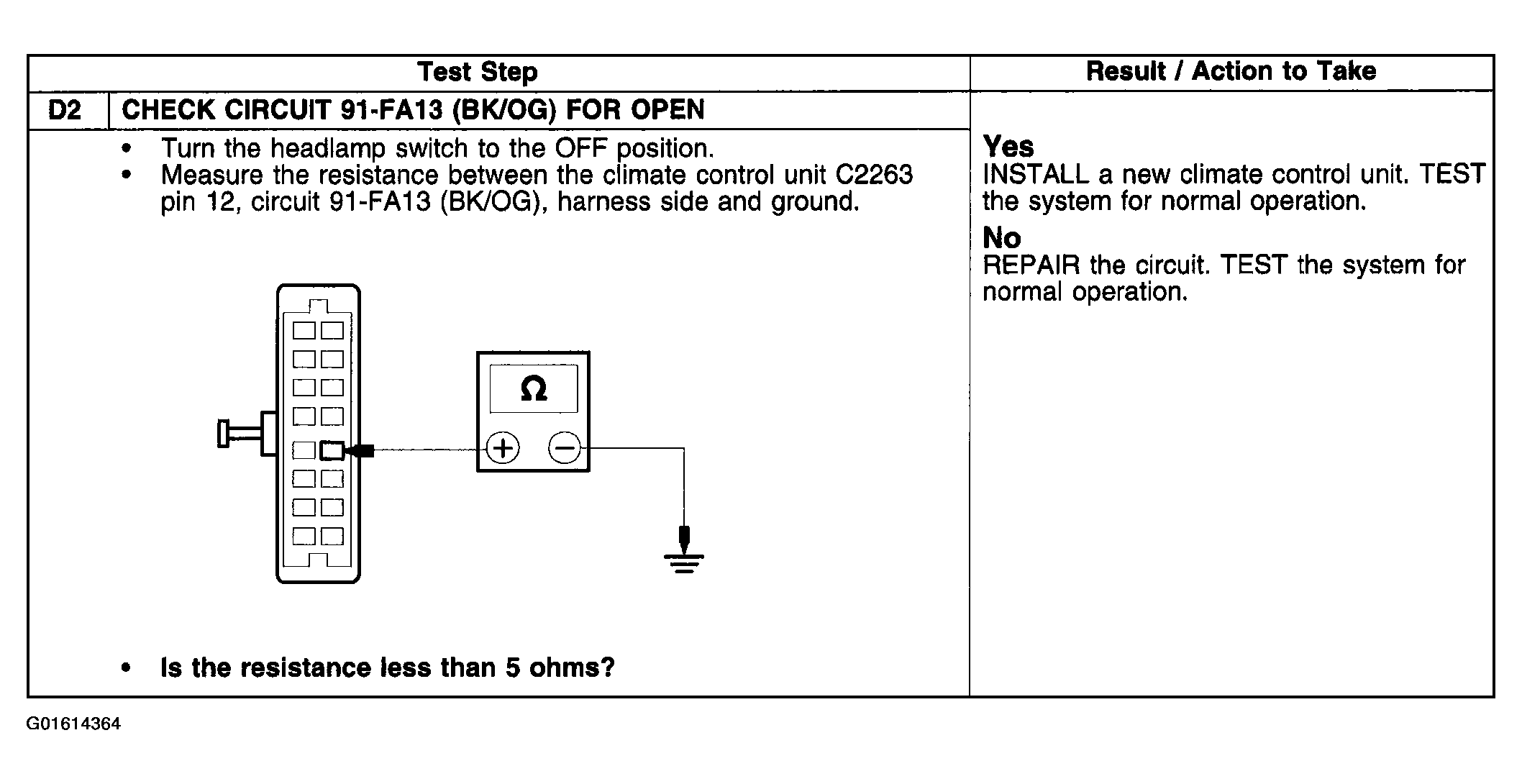

Fig 2: Pinpoint Test D: Climate Control Illumination Is Inoperative (D2)
G01614364Courtesy of FORD MOTOR CO.
